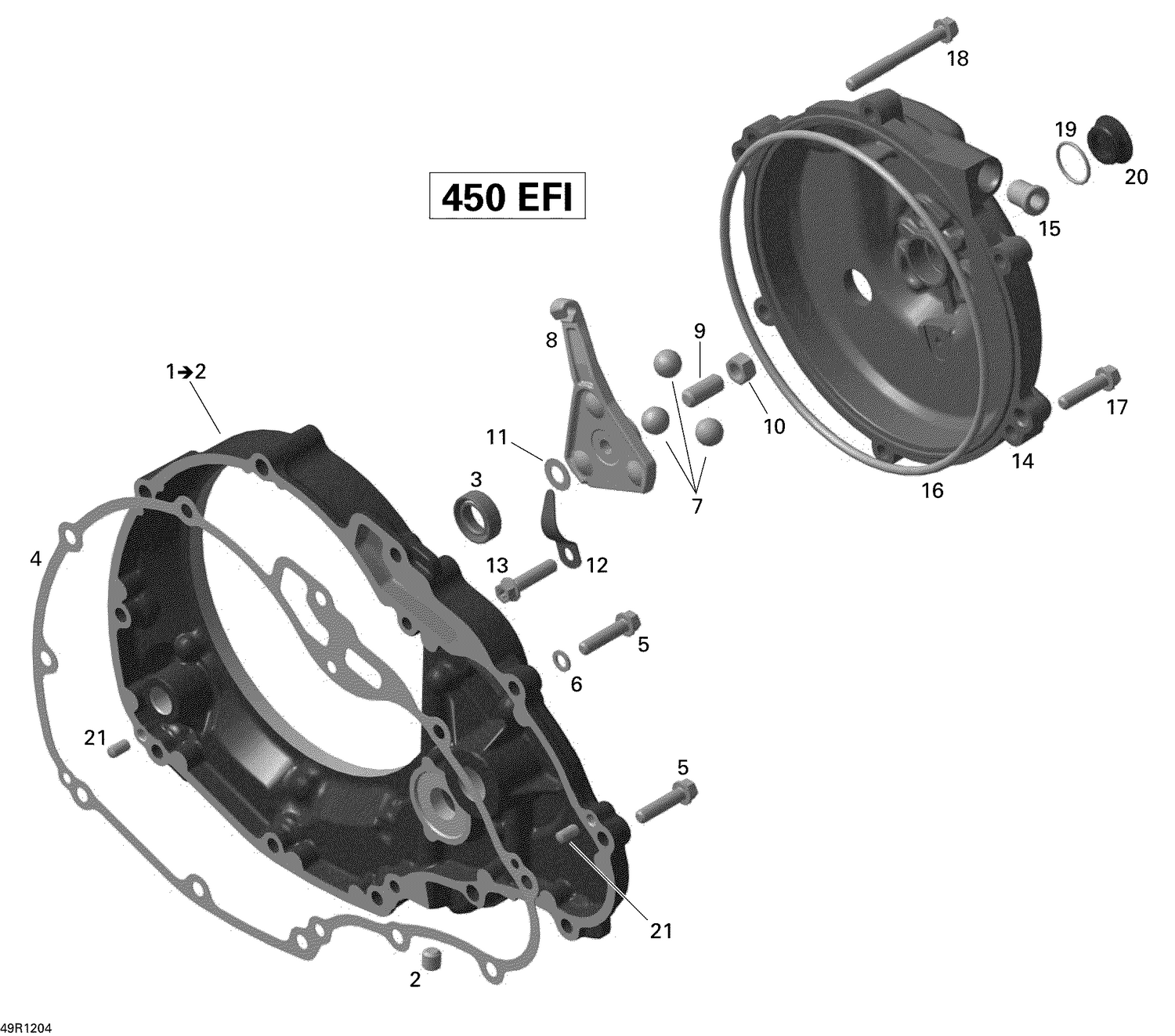

01- Clutch Cover
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420941611 | Plug Screw |
| 3 | 420250455 | Oil Seal |
| 4 | 420430995 | Gasket |
| 5 | 420641238 | Torx Flange Screw M6 X 25 |
| 6 | 420230415 | Seal Washer |
| 7 | 420232150 | Ball 12 mm |
| 8 | 420259325 | Clutch Release Cam |
| 9 | 420240310 | Adjustment Screw M8 X 19.5 |
| 10 | 420942674 | Hex. Nut M8 |
| 11 | 420227945 | Thrust Washer |
| 12 | 420239907 | SPRING - Call your local BRP dealership |
| 13 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 14 | 420210966 | Clutch Release Cover |
| 15 | 420629010 | Thread Sleeve M8 |
| 16 | 420431432 | Gasket |
| 17 | 420641238 | Torx Flange Screw M6 X 25 |
| 18 | 420440702 | Torx Flange Screw M6 X 55 |
| 19 | 420250890 | O-Ring |
| 20 | 420241800 | PLUG SCREW M18 - Call your local BRP dealership |
