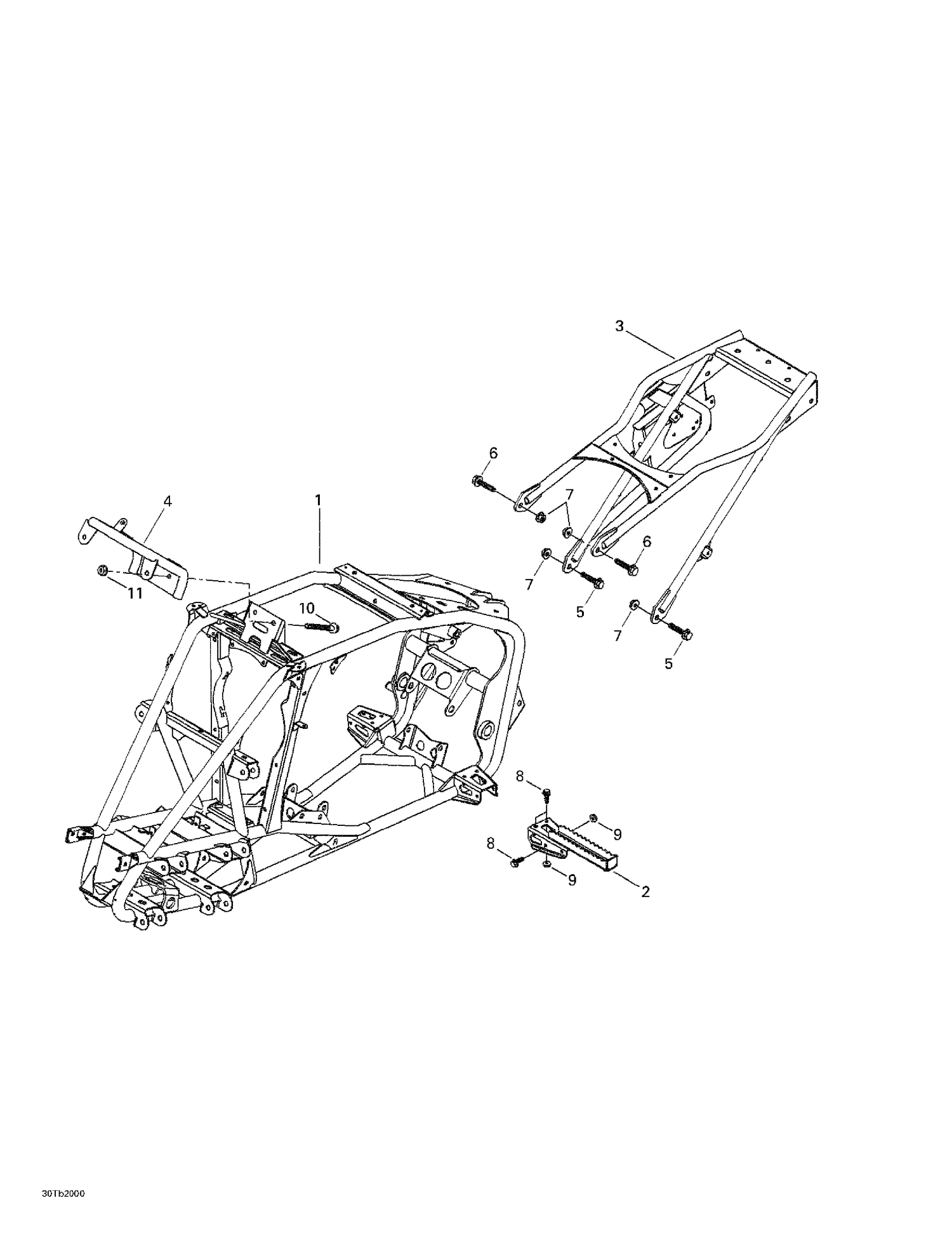

09- Frame
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200185 | Painted Frame |
| 2 | 705200313 | RH Footrest |
| 3 | 705200188 | Frame Extension |
| 4 | 705200189 | Box Support |
| 5 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 6 | 207505046 | Hex. Flange Screw M10 X 50, Scotch Grip |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 8 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 207687544 | Hex. Flange Screw M8 X 75 |
| 705200315 | Appui-Pied | GA 705200315 |
| 705200315 | LH | Footrest 705200315 |
