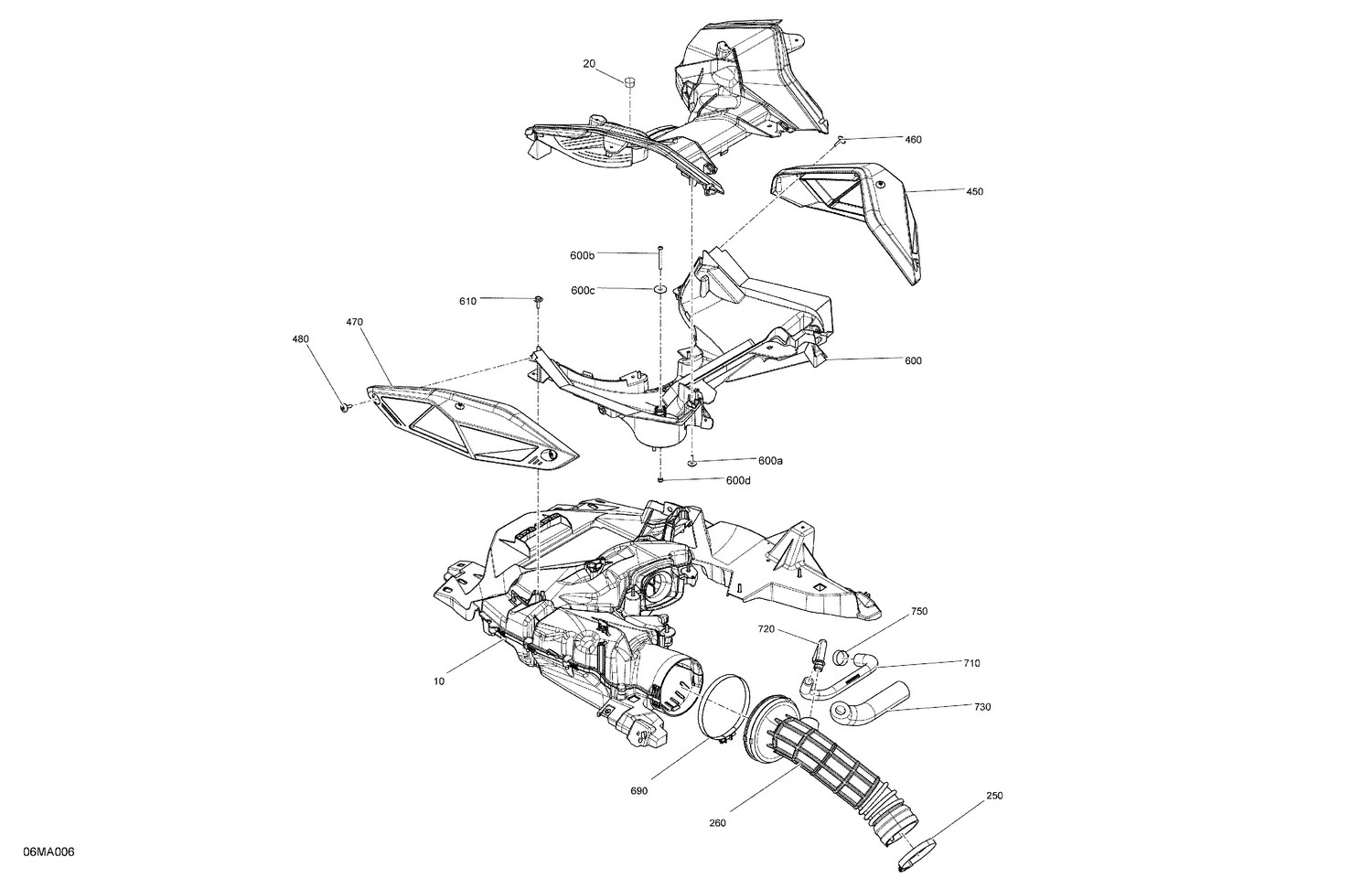

02- Engine - Air Intake
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508001354 | Secondary Intake Silencer Ass'y This part replaces 508001022. |
| 20 | 572051500 | Cap |
| 250 | 293650079 | Norma Clamp |
| 260 | 508000855 | Intake Hose |
| 450 | 508000906 | RH Air Filter (Nitex Mesh) |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508000905 | LH Air Filter (Nitex Mesh) |
| 480 | 250000889 | Screw M4 X 16 |
| 600c | 250000725 | Screw M4 X 16 |
| 600e | 205444056 | Socket Head Screw M4 X 40 |
| 600f | 224060201 | Flat Washer |
| 600h | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 690 | 293650247 | Gemi Clamp |
| 710 | 508000895 | Vent Hose |
| 720 | 508000811 | Breather |
| 730 | 508000630 | Insulating Tube |
