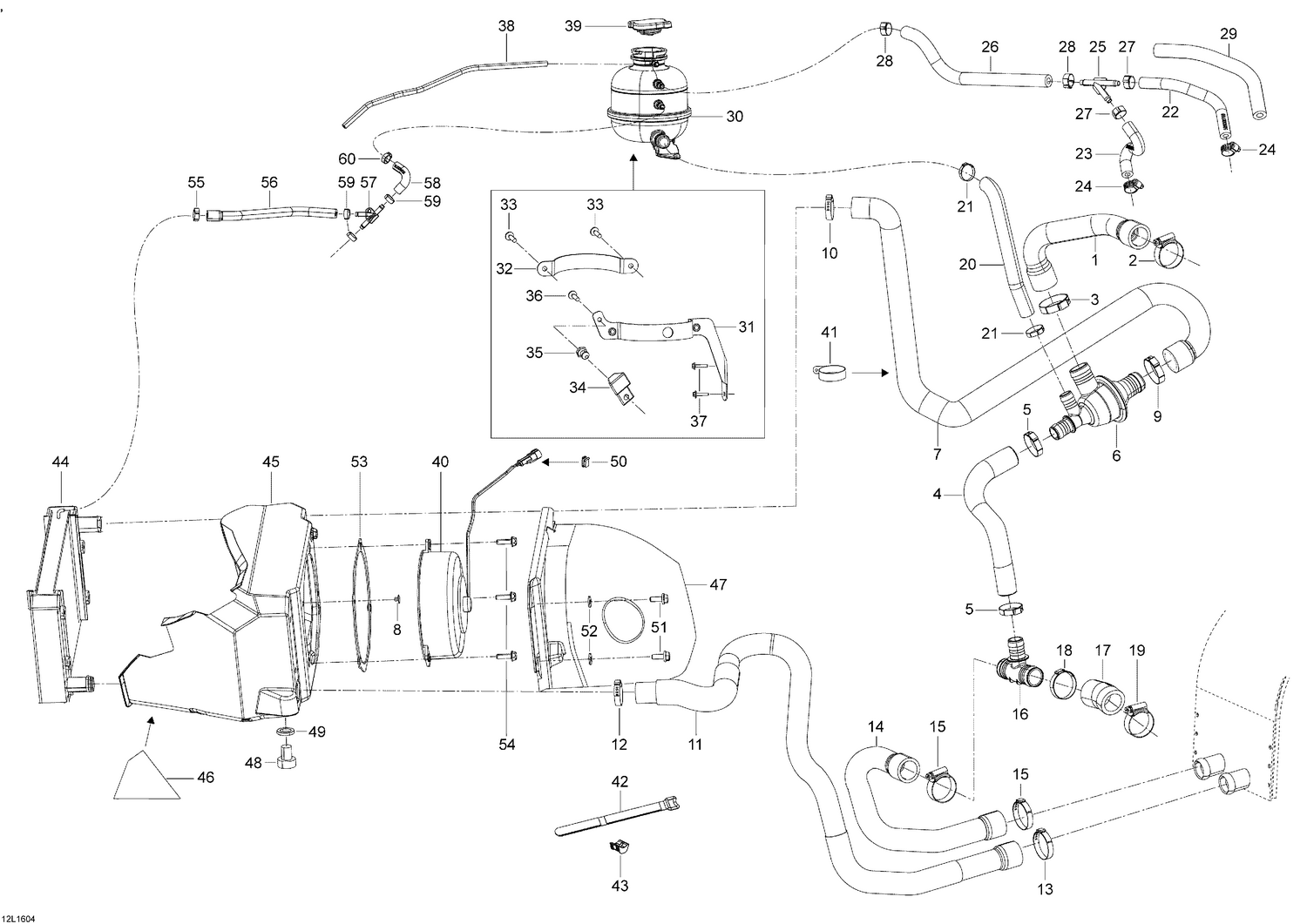

01- Cooling System
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000595 | Engine Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000181 | Crimp Clamp |
| 4 | 509000523 | Bypass Hose |
| 5 | 293650099 | Crimp Clamp |
| 6 | 509000499 | Thermostat Housing (Incl. Thermostat, 37 Deg.) |
| 7 | 509000737 | Thermostat Outlet Hose |
| 8 | 293150102 | Rivet |
| 9 | 509000181 | Gear Clamp |
| 10 | 293650099 | Crimp Clamp |
| 11 | 509000588 | Hose |
| 12 | 293650099 | Crimp Clamp |
| 13 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 15 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 16 | 509000372 | T-Fitting |
| 18 | 509000181 | Crimp Clamp |
| 19 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 20 | 509000736 | Filler Hose |
| 21 | 509000442 | Crimp Clamp |
| 22 | 509000769 | Hose |
| 23 | 509000768 | Hose |
| 24 | 293650170 | Gear Clamp |
| 25 | 293710059 | Y-Connector |
| 26 | 509000878 | BREATHER HOSE - Call your local BRP dealership |
| 27 | 293650046 | Oetiker Clamp |
| 28 | 293650047 | Crimp Clamp, 15.3-706R |
| 29 | 513033231 | Protector Tube |
| 30 | 509000368 | Coolant Tank |
| 31 | 509000852 | Support |
| 32 | 509000608 | Support |
| 33 | 250000676 | Forming Screw M5 x 16 |
| 34 | 509000609 | Support |
| 35 | 517303439 | Knob |
| 36 | 250000720 | Torx Screw K50 X 16 |
| 37 | 250000725 | Screw M4 X 16 |
| 38 | 276000048 | Hose (750mm) |
| 39 | 509000180 | Radiator Pressure Cap |
| 40 | 509000837 | Cooling Fan |
| 41 | 27011 | Clamp With Rubber |
| 42 | 508000820 | Velcro Strip |
| 43 | 508000572 | Bumper |
| 44 | 509000756 | Radiator |
| 45 | 509001173 | Cooling Fan Shroud This part replaces 509000739. |
| 46 | 509000615 | Foam |
| 47 | 509001174 | Deflector This part replaces 509000558. |
| 48 | 570044700 | Rubber Bumper |
| 49 | 505072579 | Spacer |
| 50 | 710000992 | Clip |
| 51 | 207661244 | Hex. Flange Screw M6 X 12 |
| 52 | 234062410 | Flat Washer 6 mm |
| 53 | 509000614 | Support |
| 54 | 210262040 | Forming Screw M6 x 20 |
| 55 | 293650053 | Crimp Clamp |
| 56 | 509000880 | Formed Hose |
| 57 | 293710140 | Y-Connector |
| 58 | 509000879 | Formed Hose |
| 59 | 293650047 | Crimp Clamp, 15.3-706R |
