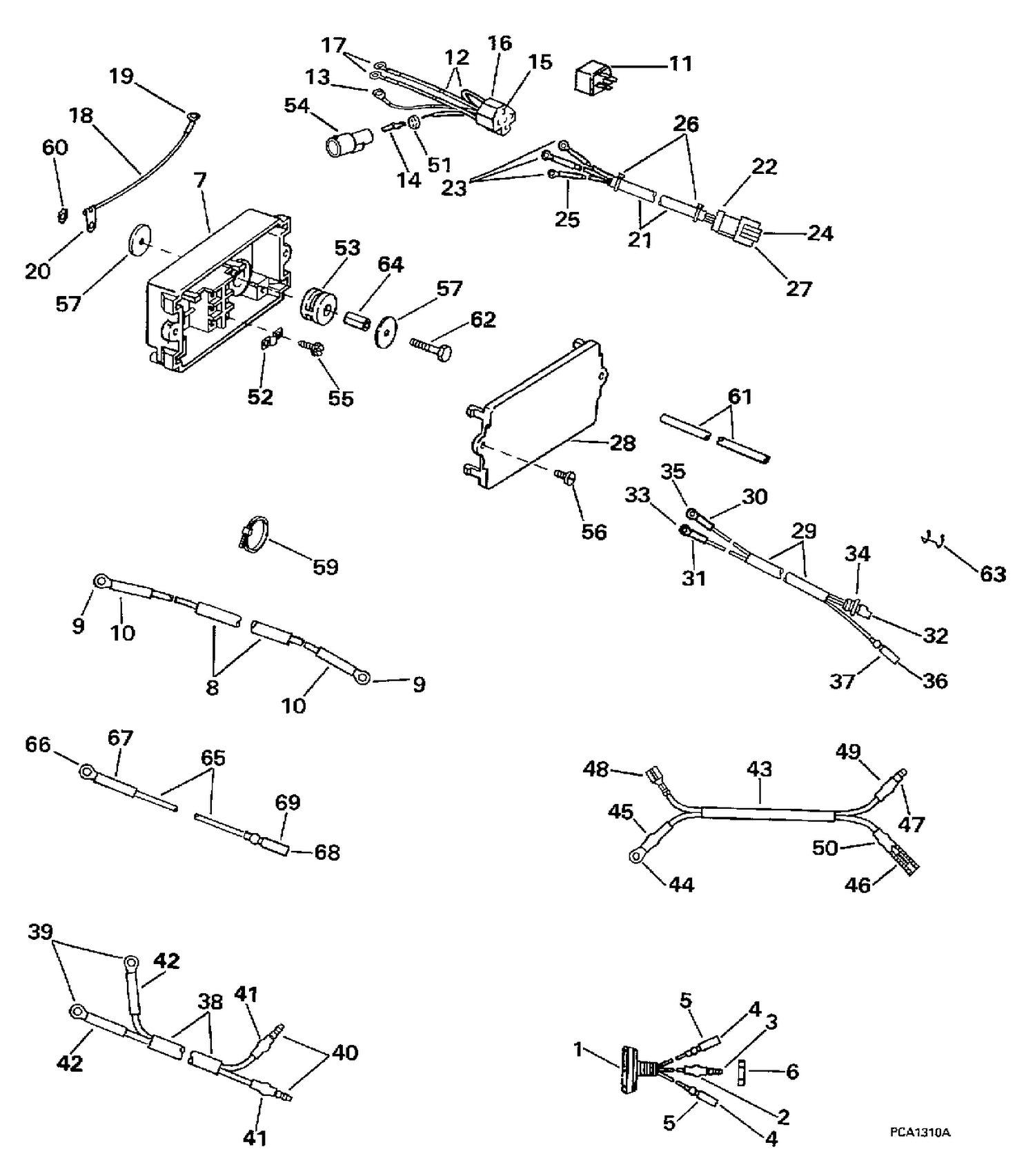

| Ref | Part Number | Description |
|---|
| 1 |
0585146 |
INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE |
| 7 |
0512776 |
BASE Junction box |
| 8 |
0585046 |
CABLE ASSY., Motor & relays |
| 12 |
0584361 |
CONNECTOR ASSY., Blue leads |
| 12 |
0584362 |
CONNECTOR ASSY., Green leads |
| 18 |
0582671 |
LEAD ASSY. Junction box ground |
| 21 |
0585033 |
CONNECTOR & LEAD ASSY. |
| 28 |
0512777 |
COVER ASSY. |
| 29 |
0585004 |
CABLE ASSY., Sending unit |
| 38 |
0585045 |
CABLE, Junction box to switch |
| 43 |
0584303 |
CABLE ASSY., Junction box to tilt limit swit h |
| 52 |
0315004 |
FIL DE LIAISON, bornier |
| 53 |
0315057 |
MOUNT, Bracket |
| 55 |
0329182 |
VIS, borne |
| 56 |
0329182 |
VIS, borne |
| 59 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 62 |
0328726 |
SCREW (Use existing coil screw) |
| 63 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 64 |
0331984 |
CLAMP, Hose |
| 65 |
0585042 |
LEAD, Trim/tilt switch |
| 0584943 |
0584943 |
JUNCTION BOX & COVER ASSY. |
