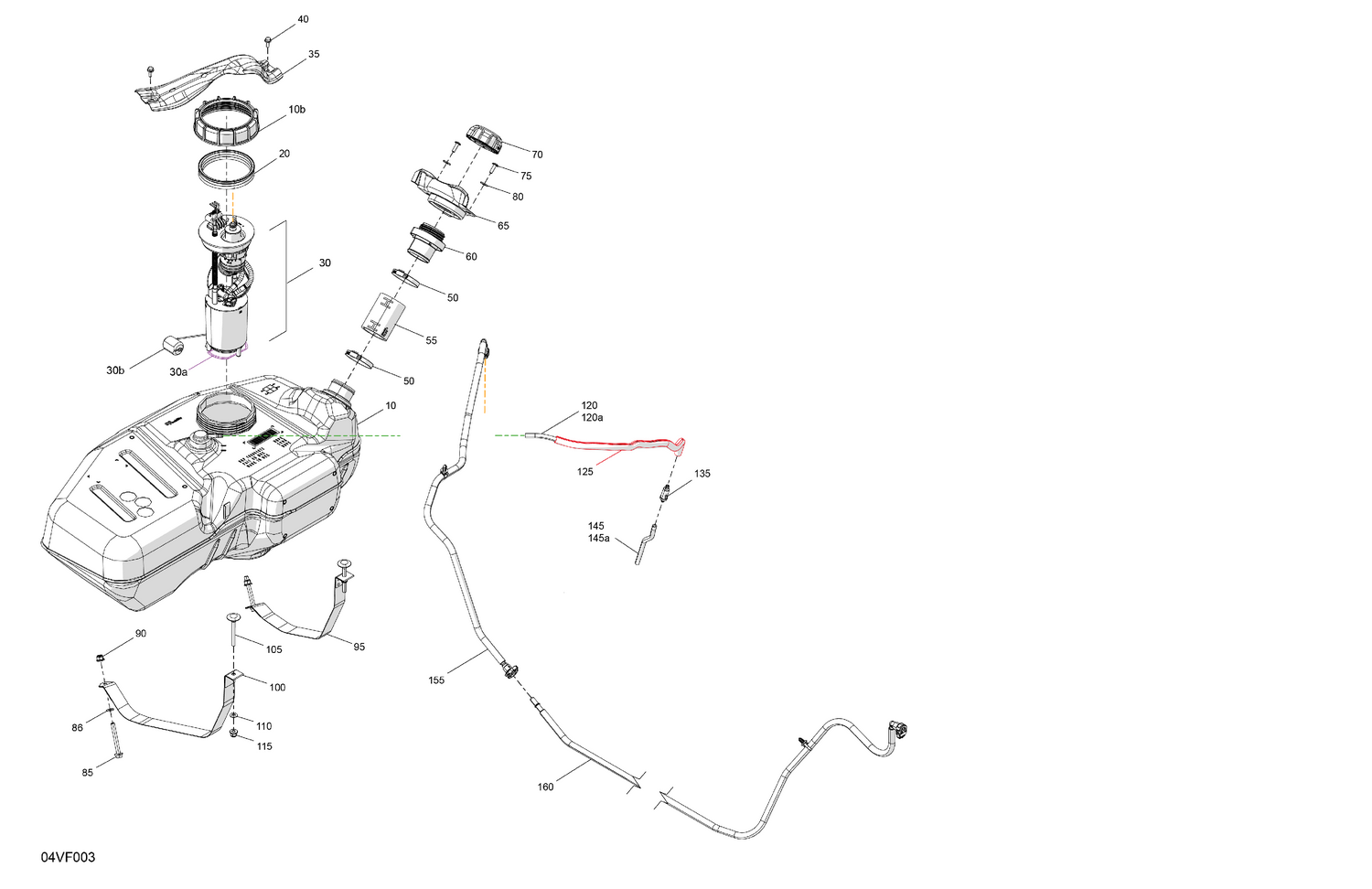

02- Engine - Fuel
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250514 | Pump Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 35 | 707901204 | Connector Guard |
| 40 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 50 | 293650081 | Norma Clamp |
| 55 | 709001697 | Filler Neck Hose |
| 60 | 709001220 | Filler Neck |
| 65 | 709001332 | Neck Support |
| 70 | 709000868 | Fuel Cap |
| 75 | 250000722 | Torx Screw M6 X 20 |
| 80 | 234062670 | Stainless Steel Flat Washer |
| 85 | 207687044 | Hex. Flange Screw M8 X 70 |
| 86 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 95 | 709001290 | RH Retaining Strap |
| 100 | 709001284 | LH Retaining Strap |
| 105 | 250001199 | Carriage Bolt M8 X 75 |
| 110 | 234081410 | Flat Washer 8 mm |
| 115 | 233281414 | Hex. Flange Elastic Nut M8 |
| 120a | XXX | Not Available As Spare Parts |
| 125 | 219704407 | Tubing 10 MM 1000MM Long |
| 135 | 709001120 | Filter |
| 145a | XXX | Not Available As Spare Parts |
| 155 | 709001209 | Fuel Tank Hose |
