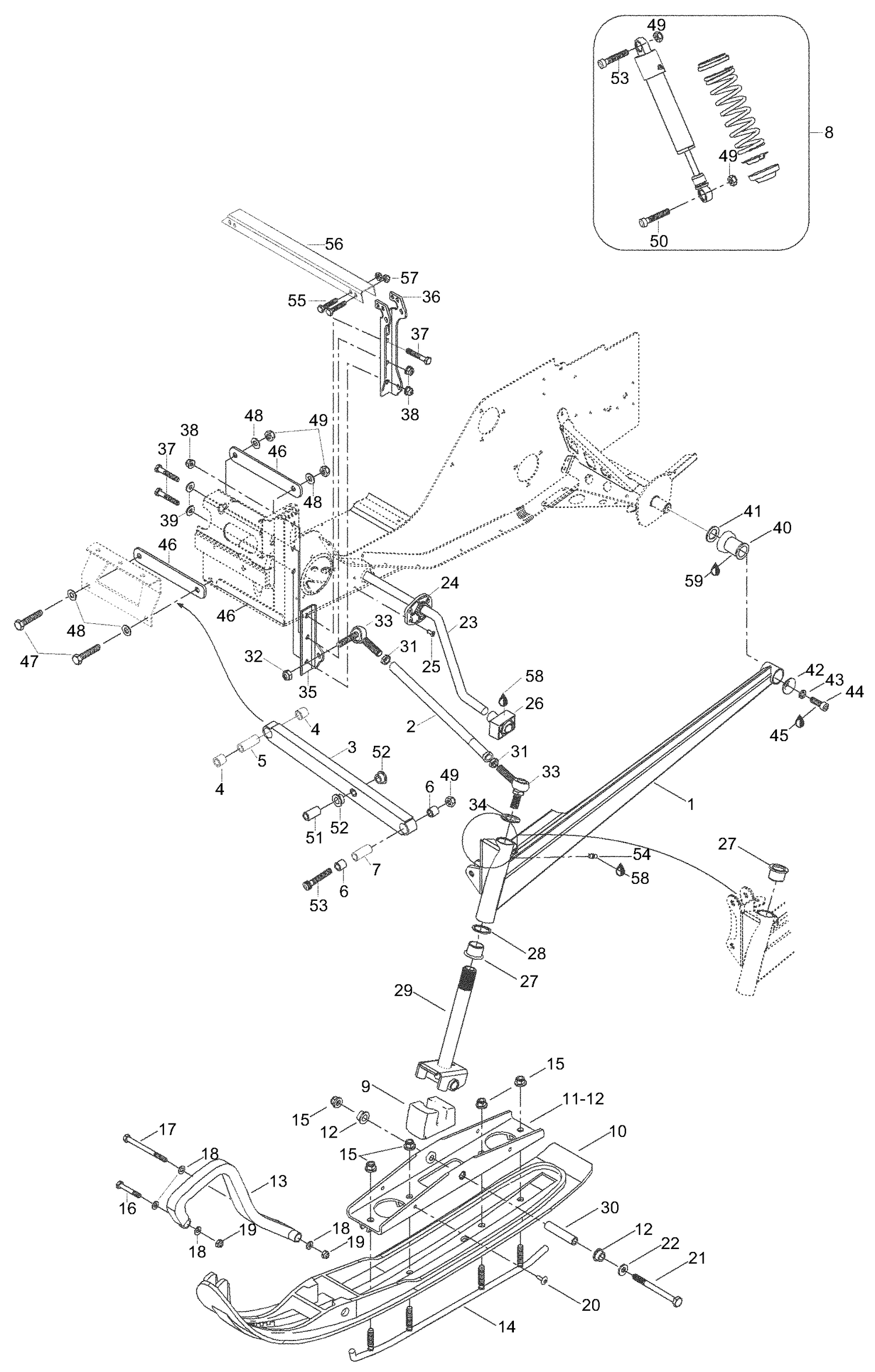

| Ref | Part Number | Description |
|---|
| 1 |
5246685 |
Swing arm, R.H. grey |
| 1 |
5246686 |
Swing arm, L.H. grey |
| 2 |
5346122 |
Upper arm |
| 4 |
5446181 |
Bushing |
| 5 |
5446182 |
Bushing |
| 6 |
5446680 |
Bushing |
| 7 |
5446681 |
Bushing |
| 8 |
23128 |
Shock LYNX |
| 9 |
570070400 |
Stopper-ski |
| 10 |
505070189 |
Ski liner This part replaces 505070190. |
| 12 |
505070001 |
BUSHING - Call your local BRP dealership |
| 13 |
505070963 |
Plastic handle This part replaces 572101000. |
| 14 |
860501900 |
CARBIDE RUNNER - Call your local BRP dealership |
| 15 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 16 |
40009 |
Screw M8x50 |
| 17 |
40869 |
Screw M8x100 |
| 18 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 |
390911100 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 21 |
40814 |
Screw M10x110 |
| 22 |
20105 |
Washer |
| 23 |
5246797 |
Sway bar |
| 24 |
505070191 |
Bushing |
| 25 |
36009 |
Rivet |
| 26 |
505070117 |
BALL JOINT BLOCK - Call your local BRP dealership |
| 27 |
505070003 |
Bushing |
| 28 |
505070004 |
WASHER - Call your local BRP dealership |
| 29 |
5245502 |
Ski leg |
| 30 |
506133300 |
Spacer |
| 31 |
33048 |
Jam nut M12 |
| 32 |
33087 |
Jam nut elastic M12 |
| 33 |
31092 |
Ball joint |
| 34 |
20074 |
Locking washer |
| 35 |
5346104 |
R.H. Upper arm bracket |
| 35 |
5346105 |
L.H. Upper arm bracket |
| 36 |
5245488 |
Shock bracket |
| 36 |
5246395 |
Shock bracket |
| 37 |
40010 |
Screw M8x55 |
| 38 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 39 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 40 |
570062200 |
DAMPER - Call your local BRP dealership |
| 41 |
503146700 |
WASHER - Call your local BRP dealership |
| 42 |
506079600 |
CUP - Call your local BRP dealership |
| 43 |
20014 |
Spring washer |
| 44 |
40289 |
Allen screw M8x25 |
| 45 |
293800060 |
Loctite 243, 10ml |
| 46 |
5346112 |
Support plate |
| 47 |
40814 |
Screw M10x110 |
| 48 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 49 |
33012 |
Nut elastic M10 |
| 50 |
40136 |
Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 51 |
5441433 |
Bushing |
| 52 |
31088 |
Bearing |
| 53 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 54 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 55 |
40345 |
Allen screw M6x40 |
| 56 |
5345458 |
Front suspension bracke |
| 57 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 58 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
