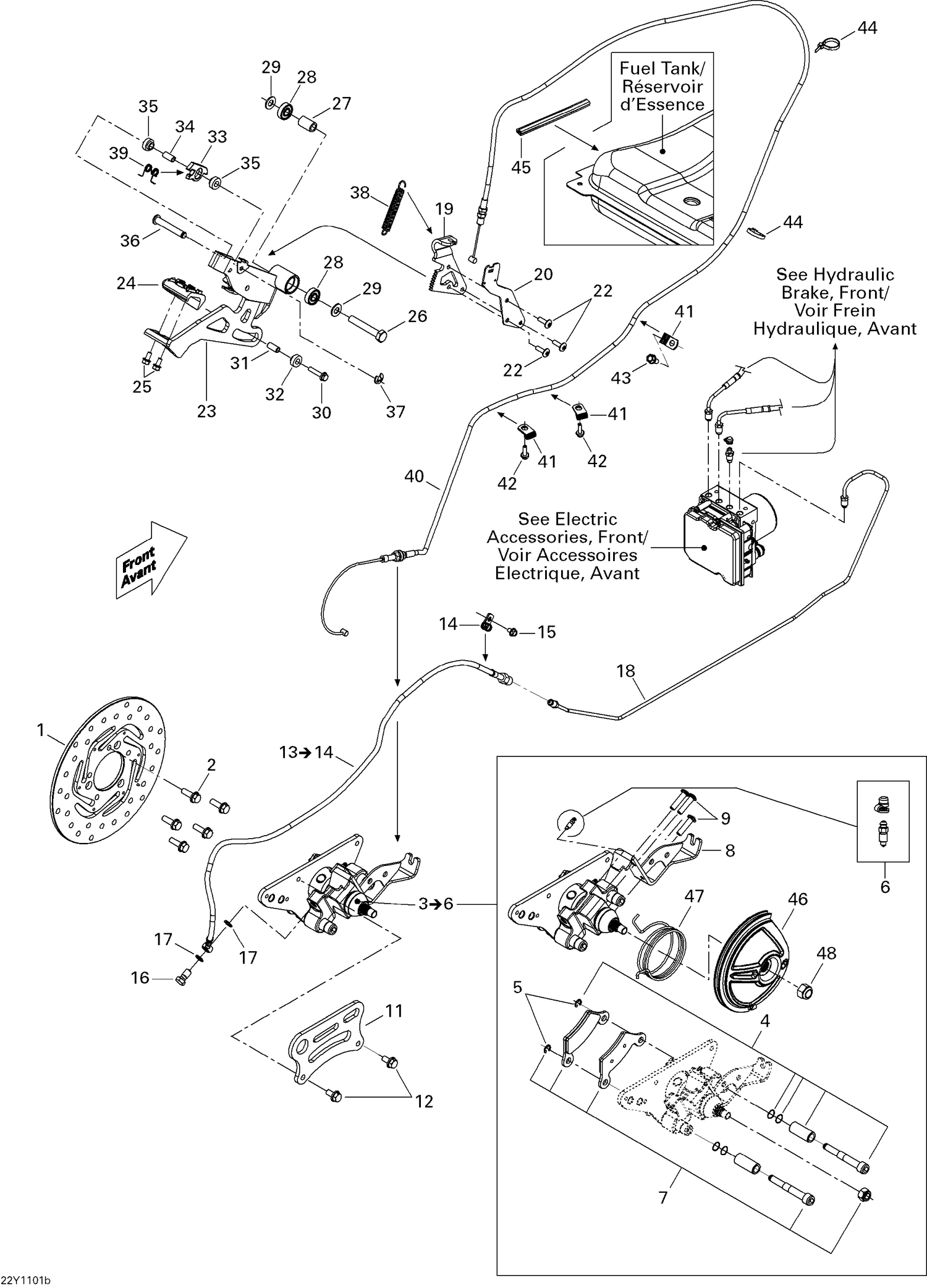

06- Hydraulic Brake, Rear
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705600591 | REAR BRAKE DISC - Call your local BRP dealership This part replaces 705600995. |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 4 | 219800032 | BUSHING KIT - Call your local BRP dealership |
| 5 | 219800050 | RETAINING RING - Call your local BRP dealership |
| 6 | 219800045 | BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 7 | 219800165 | Rear Pad Kit |
| 8 | 705600974 | CABLE SUPPORT - Call your local BRP dealership |
| 9 | 250000413 | THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 11 | 705600430 | REAR CALIPER SUPPORT - Call your local BRP dealership |
| 12 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 14 | 293650256 | Clamp This part replaces 705600459. |
| 15 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 16 | 414920500 | Banjo Bolt |
| 17 | 414920600 | Washer |
| 18 | 705600834 | REAR RIGID TUBE - Call your local BRP dealership |
| 19 | 705600776 | PEDAL PLATE - Call your local BRP dealership |
| 20 | 705600584 | SWITCH PLATE - Call your local BRP dealership |
| 22 | 250000350 | Torx Truss Screw M6 X 20 |
| 23 | 705600838 | BRAKE PEDAL - Call your local BRP dealership |
| 24 | 705004933 | Rubber Pad |
| 25 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 26 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 27 | 705600541 | Bushing |
| 28 | 705600458 | Bearing |
| 29 | 503183800 | Washer |
| 30 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 31 | 705600588 | Bushing |
| 32 | 705600587 | Bushing |
| 33 | 705600524 | KEY - Call your local BRP dealership |
| 34 | 705600588 | Bushing |
| 35 | 705600587 | Bushing |
| 36 | 293370064 | Pin |
| 37 | 414439000 | Circlip |
| 38 | 707000543 | SPRING - Call your local BRP dealership |
| 39 | 705600525 | Spring |
| 40 | 707000812 | BRAKE CABLE - Call your local BRP dealership |
| 41 | 415052400 | Bracket |
| 42 | 207662034 | Hex. Flange Screw M6 X 20 |
| 43 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 44 | 414115200 | Tie-Rap 180 mm |
| 45 | 219704354 | Trim 1000Mm Long |
| 46 | 705600772 | REAR PULLEY CABLE - Call your local BRP dealership |
| 47 | 705601065 | Spring This part replaces 705600770. |
