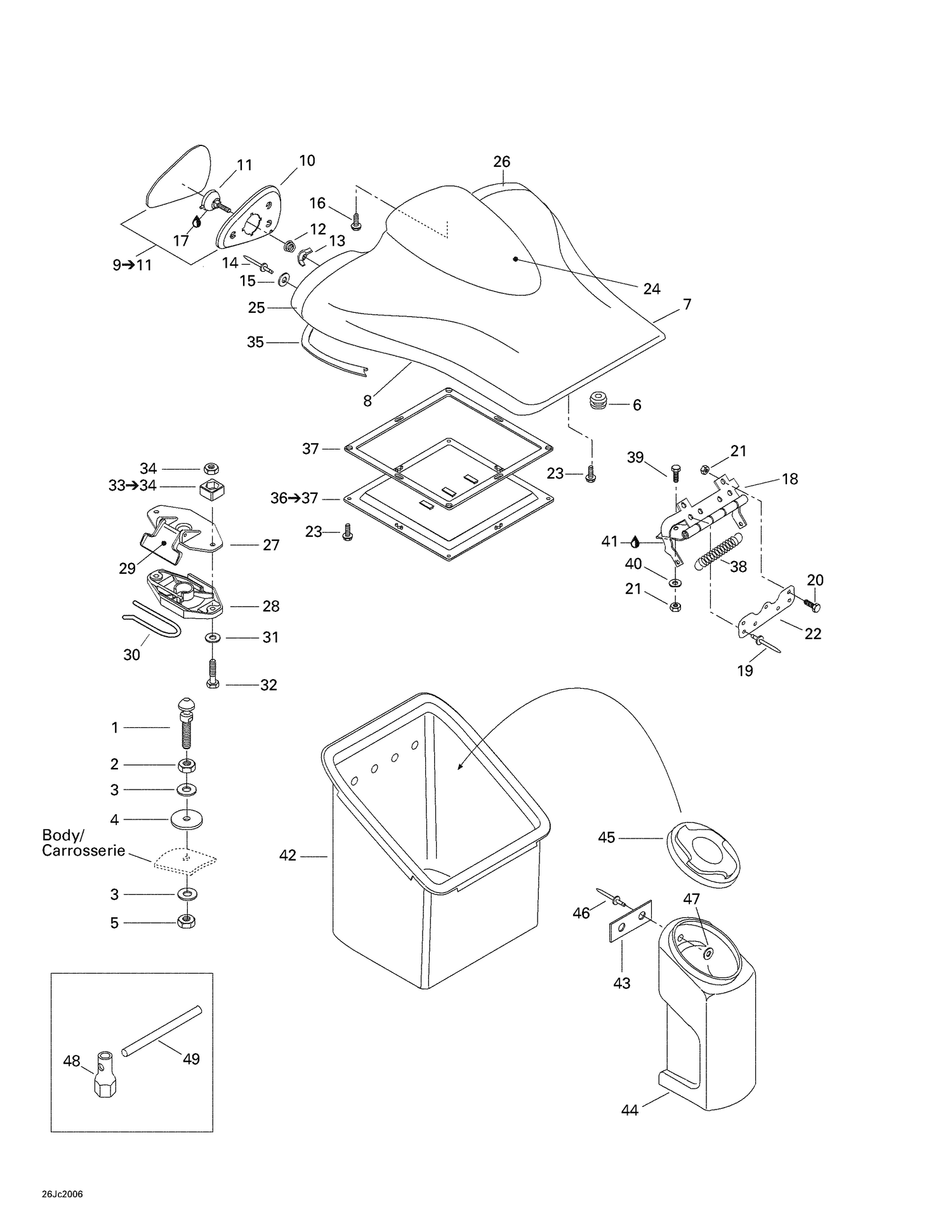

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - R.H. Mirror Support |
| 1 |
291000691 |
LATCH STUD - Call your local BRP dealership |
| 2 |
232100600 |
Hex. Jam Nut M10 |
| 3 |
234002600 |
Flat Washer 10 mm, Stainless |
| 4 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 5 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 6 |
204070238 |
Grommet |
| 7 |
204620144 |
Upper Storage Cover |
| 8 |
204620145 |
Lower Storage Cover |
| 10 |
Not |
Available As Spare Part - L.H. Mirror Support |
| 11 |
269500079 |
MIRROR BALL JOINT - Call your local BRP dealership |
| 12 |
269500082 |
Mirror Spring |
| 13 |
232661600 |
WING NUT M6 - Call your local BRP dealership |
| 14 |
293150008 |
Pop Rivet 3/16" |
| 15 |
213200016 |
Flat Washer, Emhart |
| 16 |
241140060 |
Screw K40 X 10 |
| 17 |
293550010 |
Synthetic Grease, 400 G |
| 18 |
204620281 |
HINGE ASS'Y - Call your local BRP dealership This part replaces 204620036. |
| 19 |
293150039 |
Pop Rivet 3/16" |
| 20 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 21 |
232551600 |
Hex. Elastic Nut M5 |
| 22 |
269500107 |
Retainer Plate |
| 23 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 24 |
204620146 |
Deflector |
| 25 |
204620147 |
RH Mirror Housing |
| 26 |
204620148 |
LH Mirror Housing |
| 27 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 28 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 29 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 30 |
269700017 |
Latch Spring |
| 31 |
234061600 |
Stainless Flat Washer M6 |
| 32 |
207163560 |
Hex. Screw M6 X 35 |
| 34 |
232061600 |
Hex. Nut M6 |
| 35 |
219704368 |
Seal Tray 1000Mm Long |
| 37 |
293200033 |
TRAY SEAL - Call your local BRP dealership |
| 38 |
204620049 |
Hinge Spring |
| 39 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 40 |
234051600 |
Flat Washer M5, Stainless |
| 41 |
293550010 |
Synthetic Grease, 400 G |
| 42 |
269501940 |
STORAGE TRAY - Call your local BRP dealership This part replaces 269500416. |
| 43 |
293250037 |
GASKET - Call your local BRP dealership |
| 44 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership |
| 45 |
269501939 |
EXTINGUISHER HOUSING CAP - Call your local BRP dealership This part replaces 269500603. |
| 46 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 47 |
234032600 |
Flat Washer M3, Stainless |
| 48 |
204630050 |
Socket Wrench |
| 269500056 |
LH |
Mirror 269500056 |
