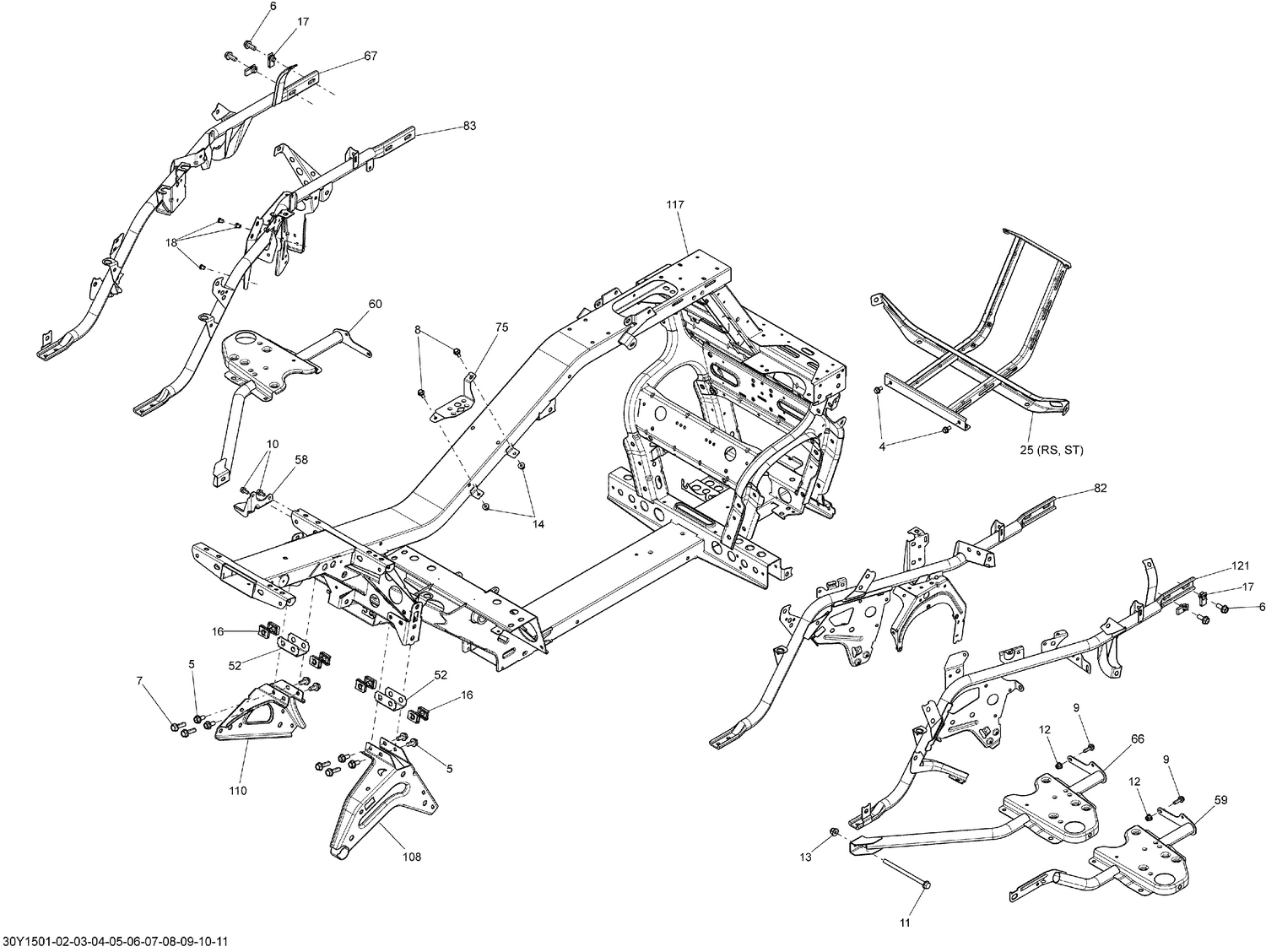

| Ref | Part Number | Description |
|---|
| 4 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 9 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 12 |
250100130 |
ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 13 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
250100118 |
Panel Nut M8 X 1.25 |
| 18 |
XXX |
Not Available As Spare Parts |
| 25 |
705201326 |
Front Frame |
| 52 |
XXX |
Not Available As Spare Parts |
| 58 |
XXX |
Not Available As Spare Parts |
| 59 |
XXX |
Not Available As Spare Parts |
| 60 |
705202626 |
LH Painted Lower Lateral Support |
| 66 |
705202680 |
RH LOWER SIDE SUPPORT - Call your local BRP dealership |
| 67 |
705202681 |
LH UPPER SIDE SUPPORT - Call your local BRP dealership |
| 75 |
705205078 |
Latch Support This part replaces 705202891. |
| 82 |
XXX |
Not Available As Spare Parts |
| 83 |
XXX |
Not Available As Spare Parts |
| 108 |
XXX |
Not Available As Spare Parts |
| 110 |
XXX |
Not Available As Spare Parts |
| 117 |
705204866 |
Frame This part replaces 705204484. |
