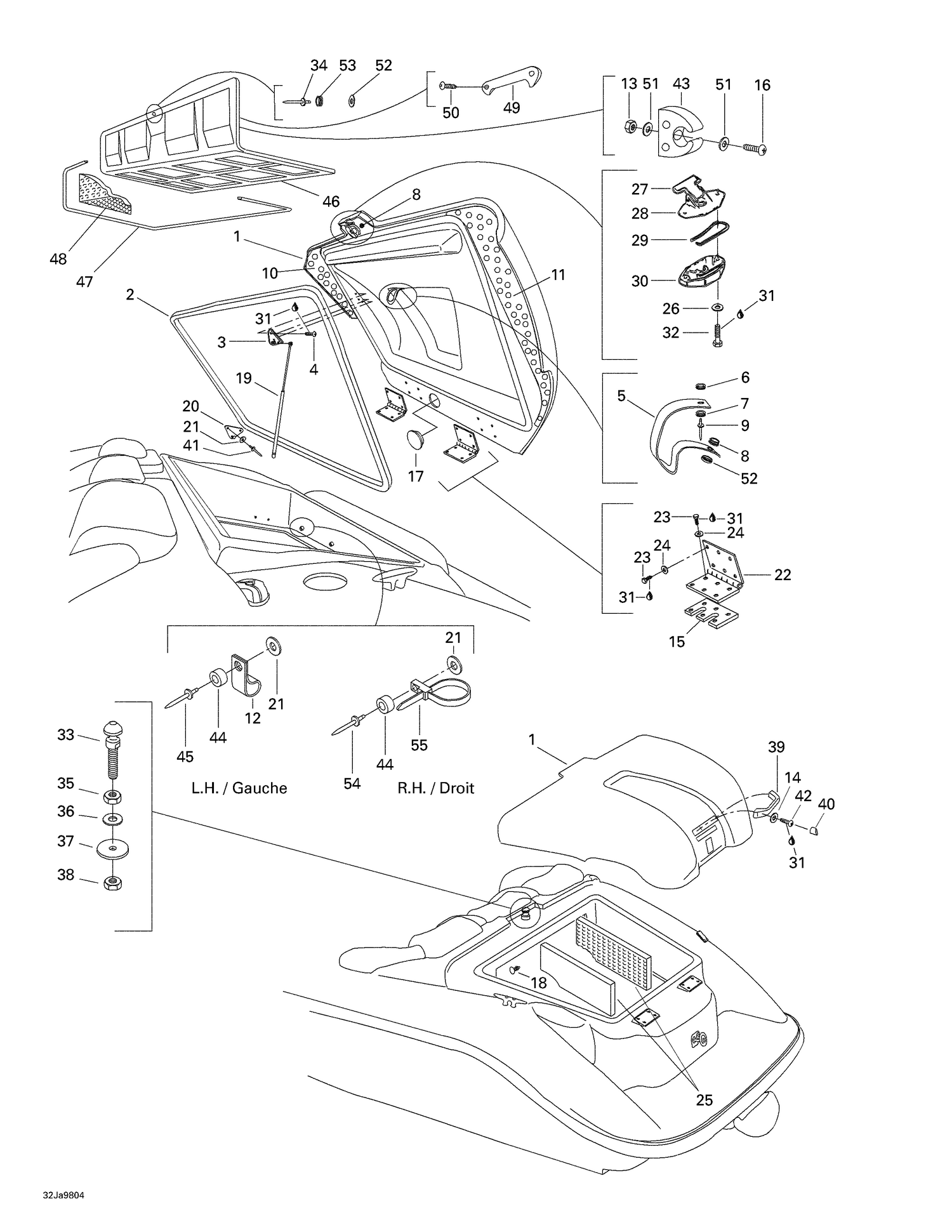

| Ref | Part Number | Description |
|---|
| 1 |
295500373 |
Engine Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
291000654 |
CYLINDER SUPPORT - Call your local BRP dealership |
| 4 |
215051660 |
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership |
| 5 |
204000075 |
Nylon Strap (Black) (Meter) |
| 6 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 7 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 8 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 9 |
293150015 |
Pop Rivet 1/8” |
| 10 |
204320011 |
LH Foam Cover |
| 11 |
204320012 |
RH Foam Cover |
| 12 |
414839700 |
Clip Cable |
| 13 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 14 |
234461608 |
External Serrated Lock Washer 6 mm This part replaces 217161600. |
| 15 |
204070047 |
SPACER 3.2 MM - Call your local BRP dealership |
| 16 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership This part replaces 215842560. |
| 17 |
293720017 |
GROMMET - Call your local BRP dealership |
| 18 |
293730006 |
Black, Dart |
| 19 |
204070199 |
Cylinder |
| 20 |
291000615 |
Shock Support |
| 21 |
234051600 |
Flat Washer M5, Stainless This part replaces 213200004. |
| 22 |
204070127 |
HINGE ASS'Y - Call your local BRP dealership |
| 23 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 24 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 25 |
237500012 |
LH Engine Compartment Foam |
| 26 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 27 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 28 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 29 |
269700017 |
Latch Spring This part replaces 269000017. |
| 30 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 31 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 32 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 33 |
204700001 |
Latch Stud |
| 34 |
293150015 |
Pop Rivet 1/8” |
| 35 |
232100600 |
Hex. Jam Nut M10 This part replaces 218300600. |
| 36 |
234002600 |
Flat Washer 10 mm, Stainless This part replaces 217002600. |
| 37 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 38 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership This part replaces 212000003. |
| 40 |
204070025 |
Snap Cap (Marine) |
| 41 |
293150043 |
Pop Rivet 3/16" |
| 42 |
211000009 |
SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership |
| 43 |
291000642 |
Pole Support |
| 44 |
293830043 |
Rubber Stopper |
| 45 |
293150014 |
Pop Rivet 3/16" |
| 46 |
295500299 |
Access Cover |
| 47 |
219704368 |
Seal Tray 1000Mm Long |
| 48 |
237500013 |
Luggage Foam |
| 49 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 50 |
241141660 |
Hex. Flange Screw K40 X 16 This part replaces 211000033. |
| 51 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 52 |
234032600 |
Flat Washer M3, Stainless This part replaces 213200018. |
| 53 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 54 |
293150013 |
Pop Rivet 3/16" |
| 237500011 |
Engine |
Foam R.H 237500011 |
