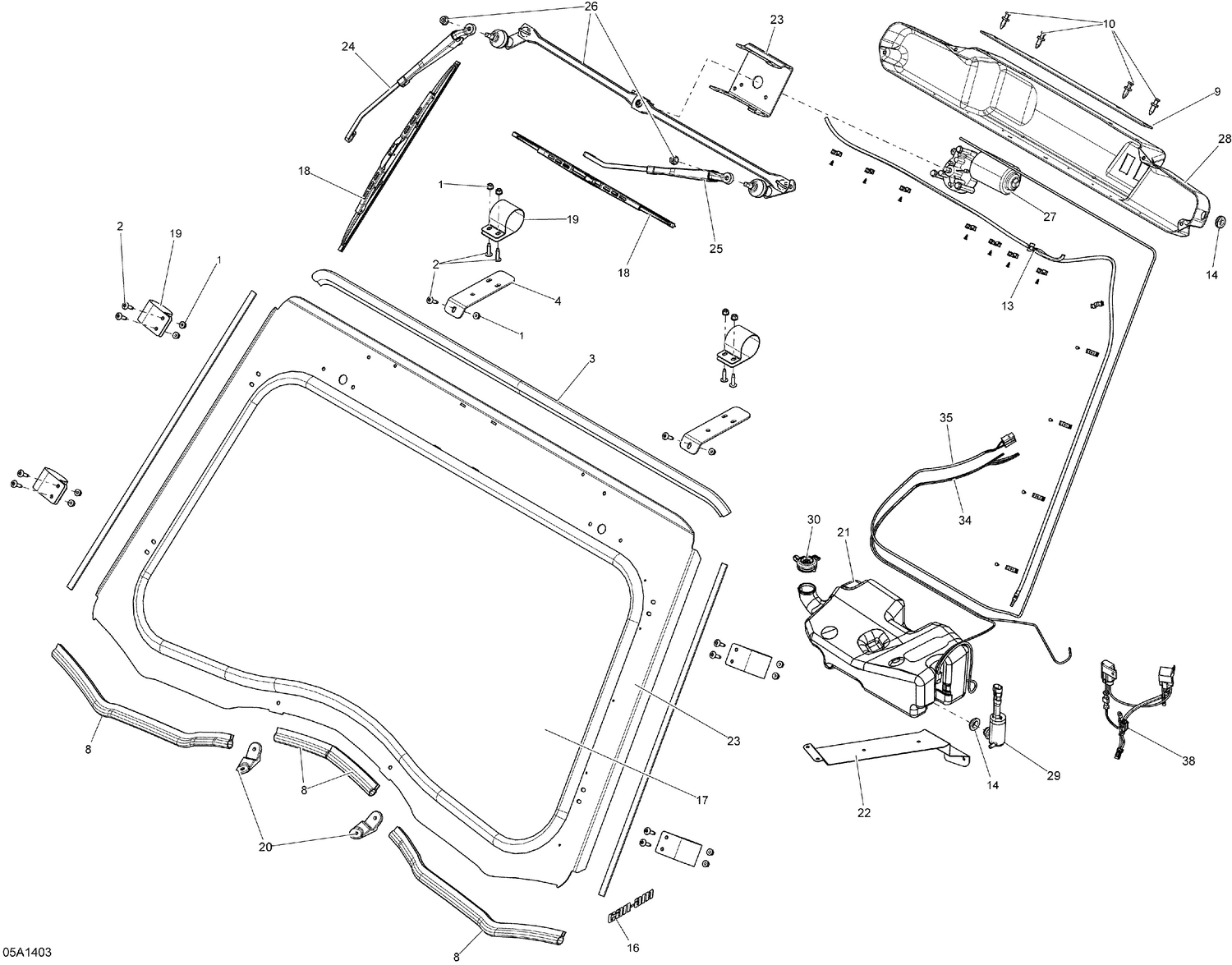

| Ref | Part Number | Description |
|---|
| 1 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 2 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 3 |
Not |
Available As Spare Part - Gasket, Neoprene |
| 4 |
705006969 |
WINDSHIELD STIFFNER - Call your local BRP dealership |
| 8 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 9 |
705007098 |
Engine Cover |
| 10 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 13 |
703500821 |
WIPER FLUID HOSE KIT - Call your local BRP dealership |
| 14 |
293720062 |
Grommet |
| 16 |
Not |
Available As Spare Part - CAN-AM Decal |
| 17 |
705004590 |
GLASS WINDSHIELD - Call your local BRP dealership |
| 18 |
705005144 |
Wiper |
| 19 |
705005606 |
P-Bracket, 2" |
| 20 |
705005776 |
Windshield Support |
| 21 |
705006422 |
Wiper Fluid Tank |
| 22 |
Not |
Available As Spare Part - Tank Support |
| 23 |
705006968 |
Windshield Frame |
| 24 |
703500820 |
WIPER ARM KIT - Call your local BRP dealership |
| 25 |
703500820 |
WIPER ARM KIT - Call your local BRP dealership |
| 26 |
703500820 |
WIPER ARM KIT - Call your local BRP dealership |
| 27 |
705006977 |
Wiper Motor |
| 28 |
705006978 |
Linkage Wiper Cover |
| 30 |
705006980 |
WIPER FLUID TANK CAP - Call your local BRP dealership |
| 34 |
Not |
Available As Spare Part - Wiper Harness |
| 35 |
Not |
Available As Spare Part - Fluid Wiper Harness |
| 38 |
Not |
Available As Spare Part - Accessories Harness |
| 39 |
704902916 |
Warning Decal, Trailer |
