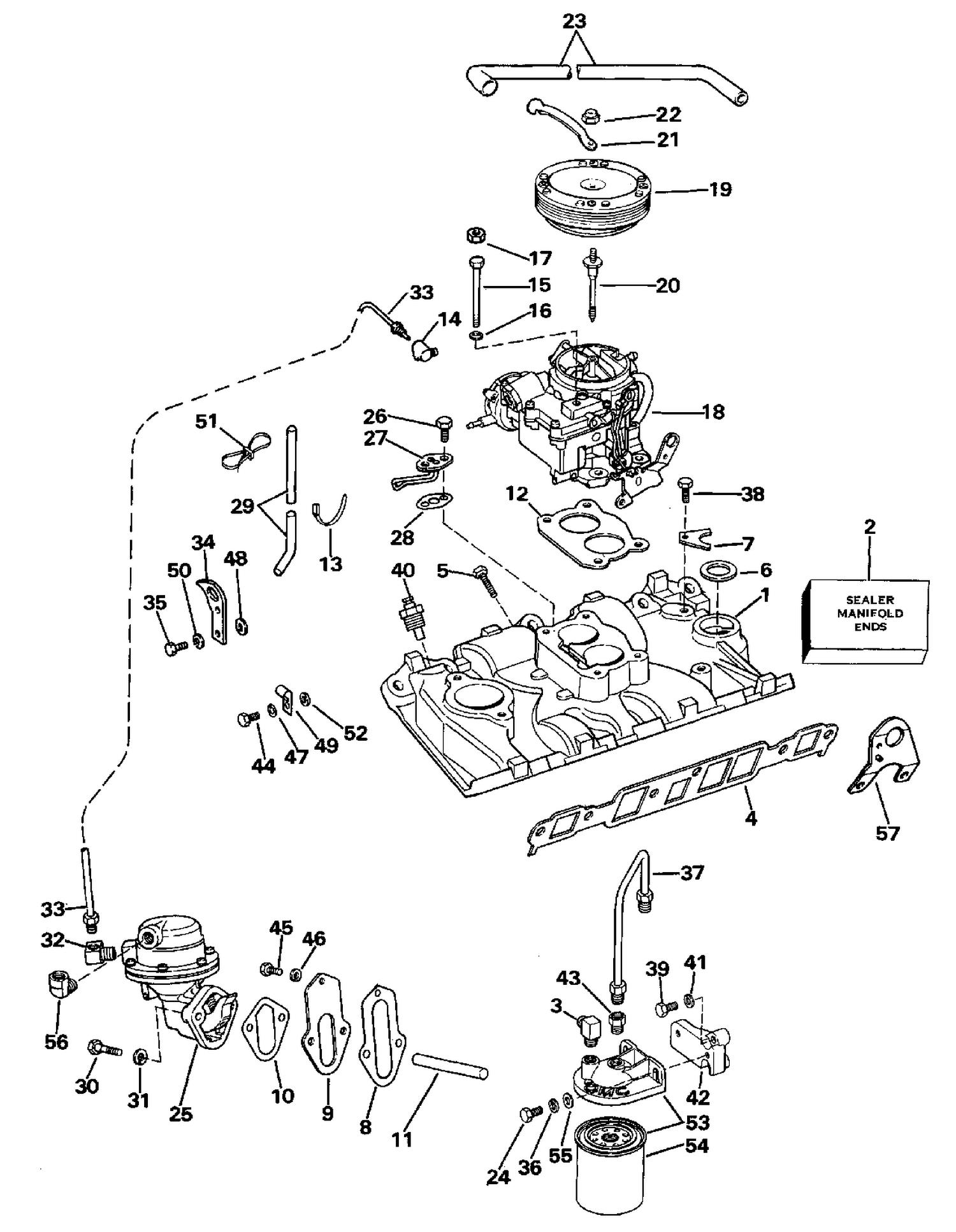

| Ref | Part Number | Description |
|---|
| 1 |
0910997 |
MANBIOLD,Intake |
| 1 |
0983874 |
MANIFOLD, Intake |
| 2 |
0914372 |
SEALER, Manifold ends |
| 3 |
0174179 |
ELBOW, Filter inlet |
| 4 |
0912978 |
GASKET SET, Manifold |
| 4 |
0912979 |
GASKET SET, Manifold |
| 5 |
3853370 |
Cover This part replaces 0912972. |
| 5 |
3856129 |
BOLT, Intake manifold, short This part replaces 0914407. |
| 6 |
0312780 |
GASKET, Dist. to manifold |
| 7 |
3852108 |
CLAMP, Distributor This part replaces 0312778. |
| 8 |
0910102 |
GASKET, Plate to engine |
| 9 |
0910112 |
PLATE, Fuel pump mounting |
| 10 |
0311064 |
GASKET, Fuel pump |
| 11 |
0913299 |
PUSH ROD, Fuel pump |
| 12 |
0908765 |
GASKET, Carburetor |
| 12 |
0909758 |
GASKET, Caarburetor 185 hp |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 14 |
0310924 |
CLAMP, Main cable to adapter |
| 15 |
0907725 |
SCREW, Carb mounting, front |
| 15 |
0913209 |
SCREW, Carburetor |
| 18 |
0983850 |
CARBURETOR ASSY |
| 18 |
0983855 |
CARBURETOR ASSY |
| 19 |
0985032 |
FLAME ARRESTOR |
| 19 |
3854026 |
FLAME ARRESTOR This part replaces 0982304. |
| 20 |
0909536 |
STUD, Flame arrestor |
| 20 |
0909574 |
STUD, Flame arrestor |
| 21 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
HOSE, |
Crankcase vent |
| 24 |
0306414 |
SCREW |
| 25 |
0982997 |
FUEL PUMP ASSY |
| 26 |
3853167 |
BOLT, Water pump This part replaces 0914369. |
| 27 |
0913588 |
CHOKE TUBE ASSY. |
| 28 |
0914371 |
GASKET, Choke tube |
| 29 |
0909938 |
HOSE, Fuel overflow |
| 30 |
0910164 |
SCREW, Pump mounting |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852453 |
FITTING, Cover, return line This part replaces 0908644. |
| 33 |
0984563 |
FUEL LINE ASSY., Pump to carb |
| 33 |
0984564 |
FUEL LINE ASSY., Pump to carb |
| 34 |
0911963 |
BRACKET, Lifting, port |
| 35 |
0306539 |
BOLT, Distributor |
| 36 |
0120177 |
L'WASHER, Alternator to brkt |
| 37 |
0984566 |
FUEL LINE, Filter to pump |
| 38 |
3856129 |
BOLT, Intake manifold, short This part replaces 0914407. |
| 40 |
0171960 |
SENDER, Water temperature |
| 41 |
0120177 |
L'WASHER, Alternator to brkt |
| 42 |
0912815 |
BRACKET, Fuel filter |
| 43 |
0908951 |
FITTING, Filter outlet |
| 44 |
0306834 |
BOLT, Throttle lever retainer |
| 45 |
0306487 |
SCREW |
| 47 |
0120177 |
L'WASHER, Alternator to brkt |
| 49 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908924. |
| 50 |
0120177 |
L'WASHER, Alternator to brkt |
| 53 |
0174176 |
FUEL FILTER & BRACKET ASSY |
| 56 |
3852525 |
FITTING, Fuel pump This part replaces 0911455. |
