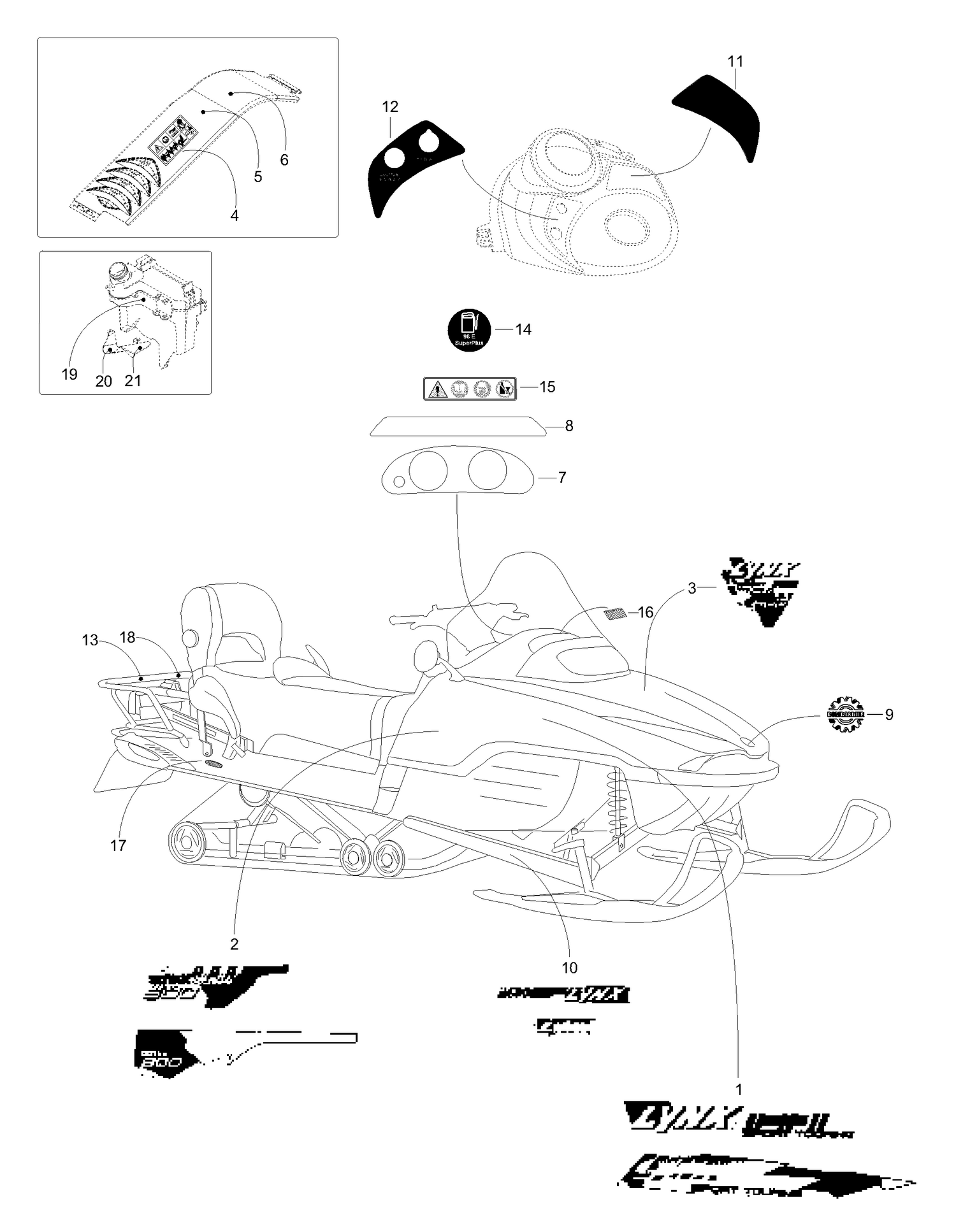

09- Decals
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605349662 | R.H. Hood decal, upper |
| 1 | 605349663 | L.H. Hood decal, upper |
| 2 | 605349698 | R.H. lower decal, hood |
| 2 | 605349699 | L.H. lower decal, hood |
| 3 | Not | Available As Spare Part - Hood decal, front - DOES NOT APPLY TO THIS MODEL |
| 4 | 605448801 | Warning label |
| 5 | 5447014 | Pulley decal |
| 6 | 5447012 | Oil check decal |
| 7 | 605249323 | Control panel decal |
| 8 | 5346800 | Instruction decal |
| 9 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 10 | 605349700 | Decal, swing arm R.H. |
| 10 | 605349701 | Decal, swing arm L.H. |
| 11 | 605448798 | R.H. console decal |
| 12 | 5446931 | Decal D.E.S.S. |
| 13 | 5447931 | Instruction symbol decal |
| 14 | 5447020 | Fuel label, 95E |
| 15 | 5447124 | Instruction symbol decal |
| 16 | 21060 | Reflector, bright |
| 17 | 21135 | Reflector, yellow |
| 18 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 19 | 605449628 | Label, oil level |
| 20 | 605449565 | Instruction decal |
