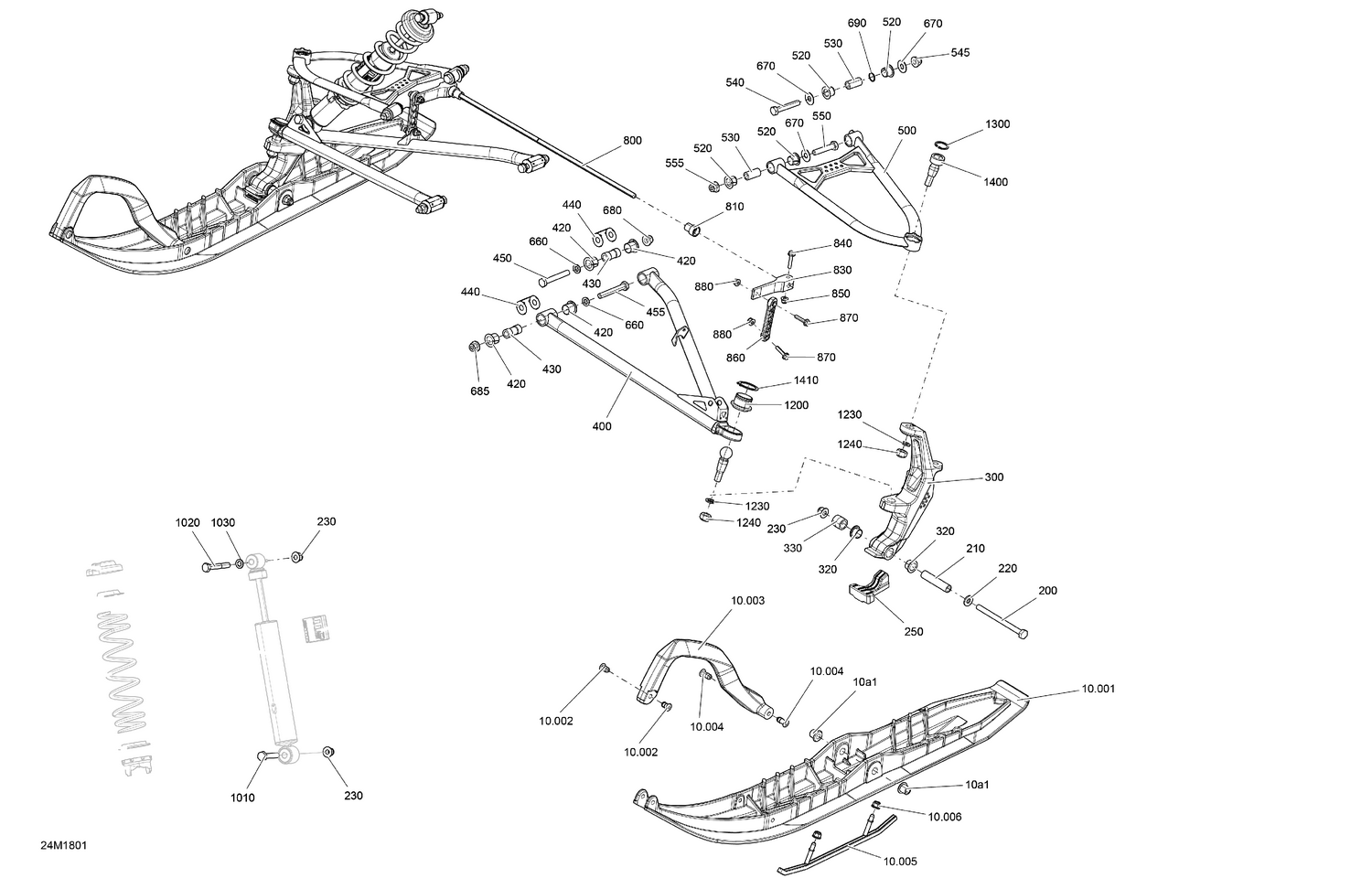

07- Front Suspension And Ski Summit - 600 CARB - Package Sport
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 506133300 | Spacer |
| 250 | 505074138 | Ski Stopper |
| 300 | 505073557 | Clear, LH Ski Leg |
| 310 | 505073558 | Clear, RH Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 330 | 503193651 | Spacer |
| 400 | 505073039 | Black, LH Lower Arm |
| 400 | 505073040 | Black, Lower Arm RH |
| 420 | 505072208 | Bushing |
| 430 | 505072209 | Sleeve |
| 440 | 505072634 | Wear Plate |
| 450 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 455 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 500 | 505073466 | Black Upper Arm LH 36" |
| 500 | 505073467 | Black Upper Arm RH 36" |
| 520 | 505072250 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 800 | 505073609 | Stabilisator |
| 810 | 505072786 | Bushing |
| 830 | 505073176 | Stabilisator Lever |
| 840 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flange Elastic Nut M6 |
| 860 | 505072204 | Sway Bar Double Joint Link |
| 860 | 505073172 | Double Ball Joint Link |
| 870 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1010 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 1020 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 1030 | 503189564 | Washer |
| 1200 | 505073636 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
