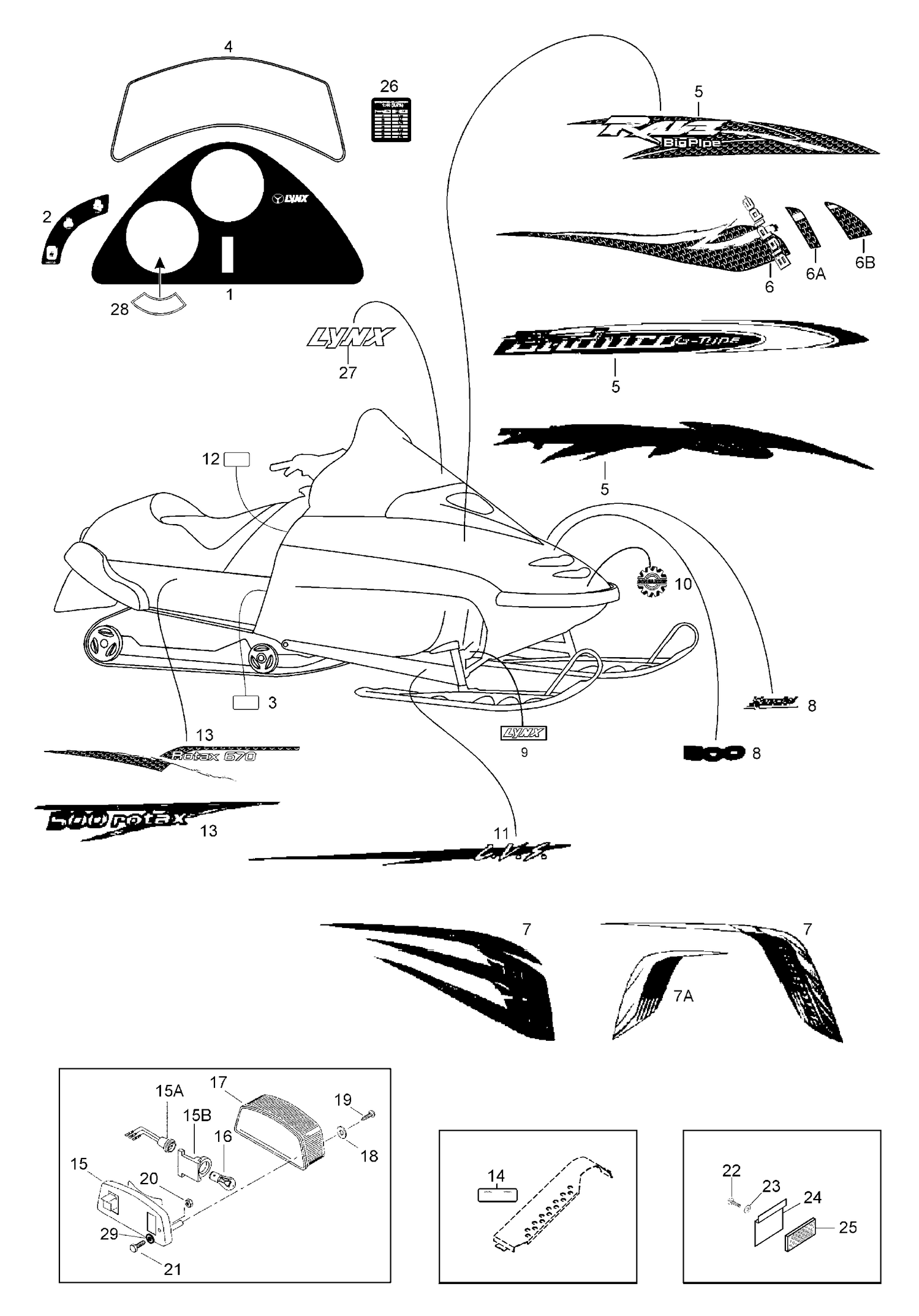

| Ref | Part Number | Description |
|---|
| 1 |
5241570 |
Control panel decal |
| 2 |
5444818 |
Grip heater decal |
| 3 |
418002200 |
CE-decal |
| 4 |
5241725 |
Instruction Decal |
| 5 |
5244546 |
RAVE B. P. -decal R.H. |
| 5 |
5244547 |
RAVE B. P. -decal L.H. |
| 6 |
5244548 |
Hood decal, upper |
| 6A |
5344549 |
Hood decal, middle |
| 6B |
5344550 |
Hood decal, lower |
| 7 |
Not |
Available As Spare Part - Decal Lynx Racing - DOES NOT APPLY TO THIS MODEL |
| 7A |
Not |
Available As Spare Part - Decal upper R.H. - DOES NOT APPLY TO THIS MODEL |
| 8 |
Not |
Available As Spare Part - Decal ‘Special’ - DOES NOT APPLY TO THIS MODEL |
| 9 |
Not |
Available As Spare Part - Support Arm Decal - DOES NOT APPLY TO THIS MODEL |
| 10 |
516008738 |
Logo 48mm "BRP" This part replaces 516000282. |
| 11 |
5244553 |
Decal L.V.S. R.H. |
| 11 |
5244554 |
Decal L.V.S. L.H. |
| 12 |
544068 |
Oil check decal |
| 13 |
5244551 |
Framedecal R,H. |
| 13 |
5244552 |
Framedecal L.H. |
| 14 |
546820 |
Pulley decal |
| 15 |
414979400 |
Taillamp housing |
| 15A |
414979400 |
Socket |
| 15B |
414979411 |
Rubber damper |
| 16 |
520000758 |
Bulb This part replaces 410504000. |
| 17 |
414513700 |
Lens |
| 18 |
414516400 |
Washer - Call your local BRP dealership |
| 19 |
40613 |
Screw |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 21 |
40002 |
Screw M6x40 |
| 22 |
40073 |
Screw 3.5x16 |
| 23 |
20037 |
Washer |
| 24 |
5442484 |
Bracket of reflector |
| 25 |
21060 |
Reflector |
| 26 |
Not |
Available As Spare Part - Premix-fuel-decal - DOES NOT APPLY TO THIS MODEL |
| 27 |
5444539 |
Decal-Lynx |
| 28 |
5444852 |
Decal RPM limits |
