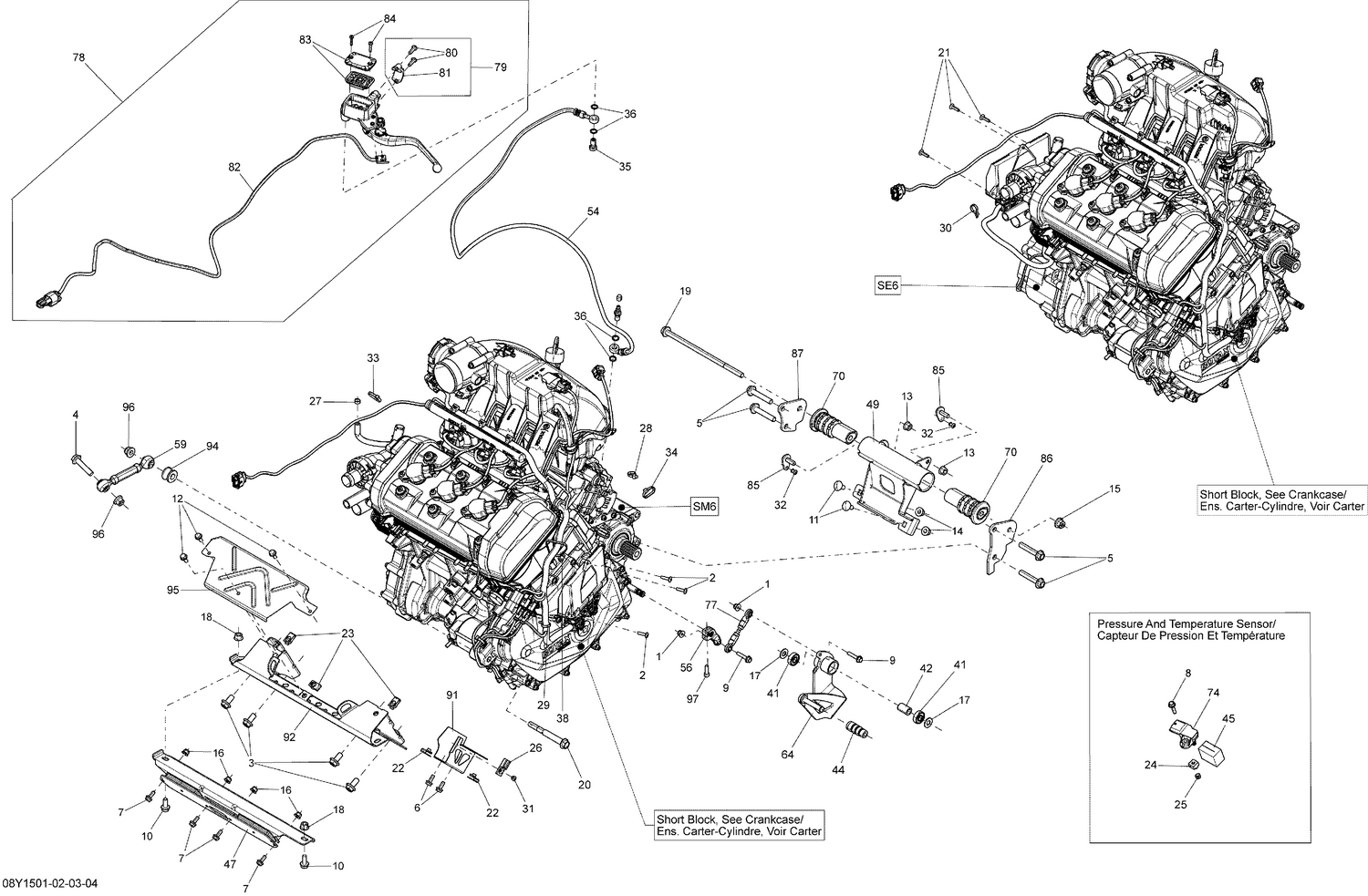

01- Engine SM6_08Y1501
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2 | 250000724 | Torx Screw M5 X 20 |
| 3 | 207502044 | Hex Flange Screw M10 X 20 |
| 4 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 5 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 8 | 207662554 | Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 9 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 10 | 207682046 | Hex. Flange Screw M8 X 20 |
| 11 | 207782046 | Carriage Bolt M8 X 20 |
| 12 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 13 | 233081416 | Hex. Flange Nut M8 |
| 14 | 233081416 | Hex. Flange Nut M8 |
| 15 | 233201436 | Hex. Flange Elastic Nut M10 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 234001410 | Flat Washer 10 mm |
| 18 | 233081416 | Hex. Flange Nut M8 |
| 19 | 250000507 | Hex. Flange Screw M10 X 220 |
| 20 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 23 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 25 | 232561600 | Hex. Elastic Stop Nut M6 |
| 26 | 270000141 | Clip |
| 27 | 293650044 | Oetiker Clamp |
| 28 | 293750002 | Tie Wrap 142 mm |
| 29 | 293750008 | Tie Wrap 368 mm |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 390402200 | Pop Rivet 3/16" |
| 32 | 390402300 | Pop Rivet 3/16" |
| 33 | 414115200 | Tie-Rap 180 mm |
| 34 | 414115200 | Tie-Rap 180 mm |
| 35 | 414920500 | Banjo Bolt |
| 36 | 414920600 | Washer |
| 38 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 41 | 705600458 | Bearing |
| 42 | 705600541 | Bushing |
| 44 | 707000456 | End Clutch Pedal |
| 45 | 707000586 | Foam Filter |
| 47 | 707000876 | Rubber Mount |
| 49 | 707000877 | Frame Extension |
| 54 | 707000879 | Hose |
| 56 | 707000926 | Shifter Arm |
| 59 | 707001918 | Connecting Rod This part replaces 707000959. |
| 64 | 707000967 | CRYSTAL SILVER LEVER - Call your local BRP dealership |
| 70 | 707000973 | Rubber Mount |
| 74 | 707000995 | Pressure And Temperature Sensor |
| 77 | 707001103 | Double Ball Joint |
| 79 | 719000049 | Clamps |
| 80 | 250000433 | Torx Screw M6 X 20 |
| 81 | 719000049 | Clamps This part replaces 219800081. |
| 82 | 219800297 | MICROSWITCH - Call your local BRP dealership |
| 83 | 219800096 | Cap Set |
| 84 | 415129356 | Screw M4 X 20 |
| 85 | 707001292 | Attach |
| 86 | 707001293 | LH Engine Support |
| 87 | 707001294 | RH Engine Support |
| 91 | 707001353 | Connector Support |
| 92 | 707001561 | Front Engine Support |
| 94 | 707001423 | SPACER - Call your local BRP dealership |
| 95 | 707601057 | Upper Heat Deflector |
| 96 | 233201436 | Hex. Flange Elastic Nut M10 |
