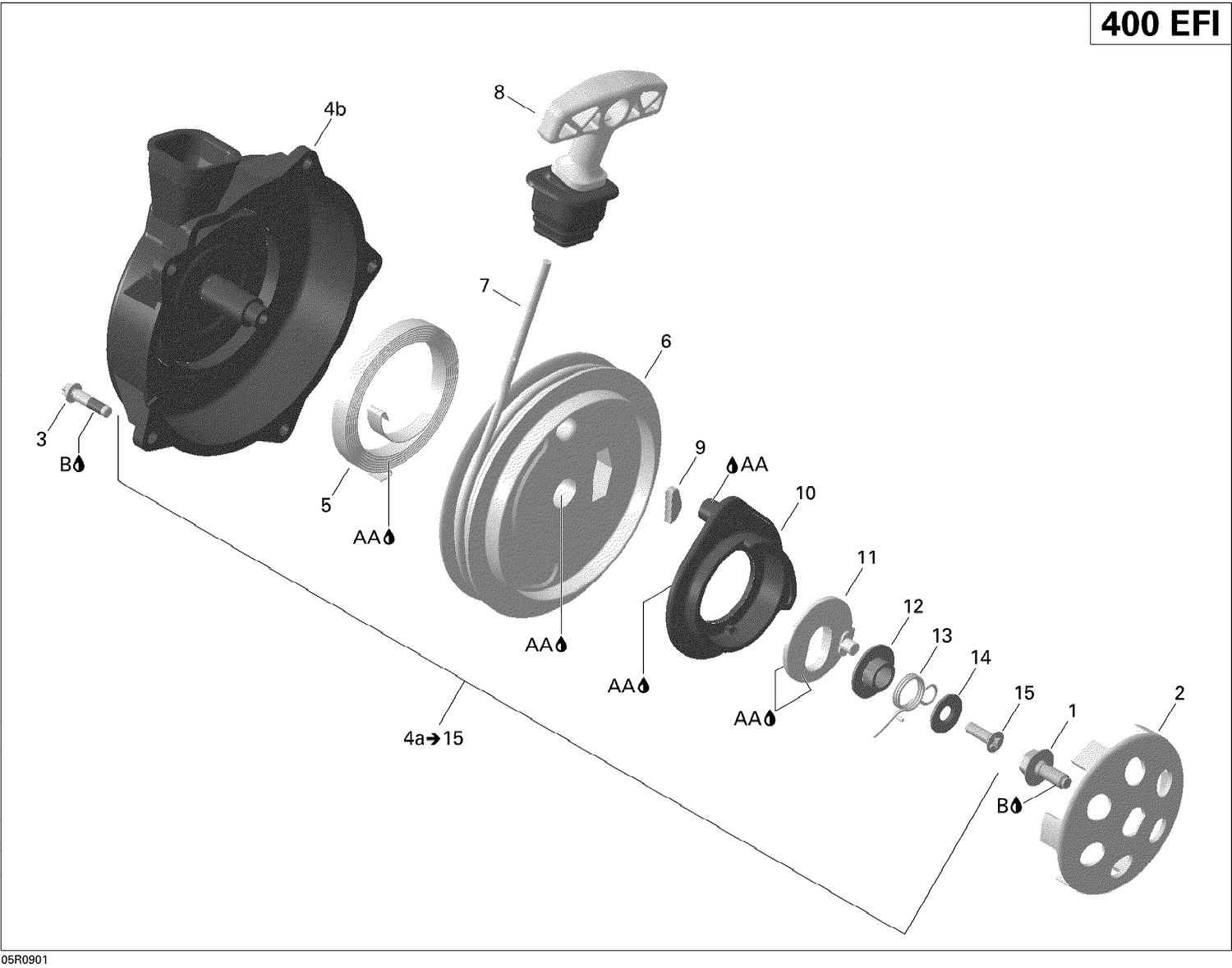

04- Rewind Starter
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420241721 | Hex. Collar Screw M8 X 20 |
| 2 | 420852501 | Starting Pulley |
| 3 | 420240034 | Hex. Screw M6 X 25 This part replaces 420240031. |
| 4b | 420610930 | Starter Rope Housing |
| 5 | 420939115 | Rewind Spring |
| 6 | 420852283 | Rope Sheave |
| 7 | 219704403 | Was 412500100 Rope-Starter |
| 8 | 420852555 | Starting Grip With Rubber Buffer |
| 9 | 420852070 | Key Clamp |
| 10 | 420852299 | Pawl |
| 11 | 420852306 | Lock Pawl |
| 12 | 420847927 | STAGE SLEEVE - Call your local BRP dealership |
| 13 | 420938989 | Locking Spring |
| 14 | 420244320 | Flat Washer |
| 15 | 420241730 | PLASTITE SCREW M6 X 20 - Call your local BRP dealership |
