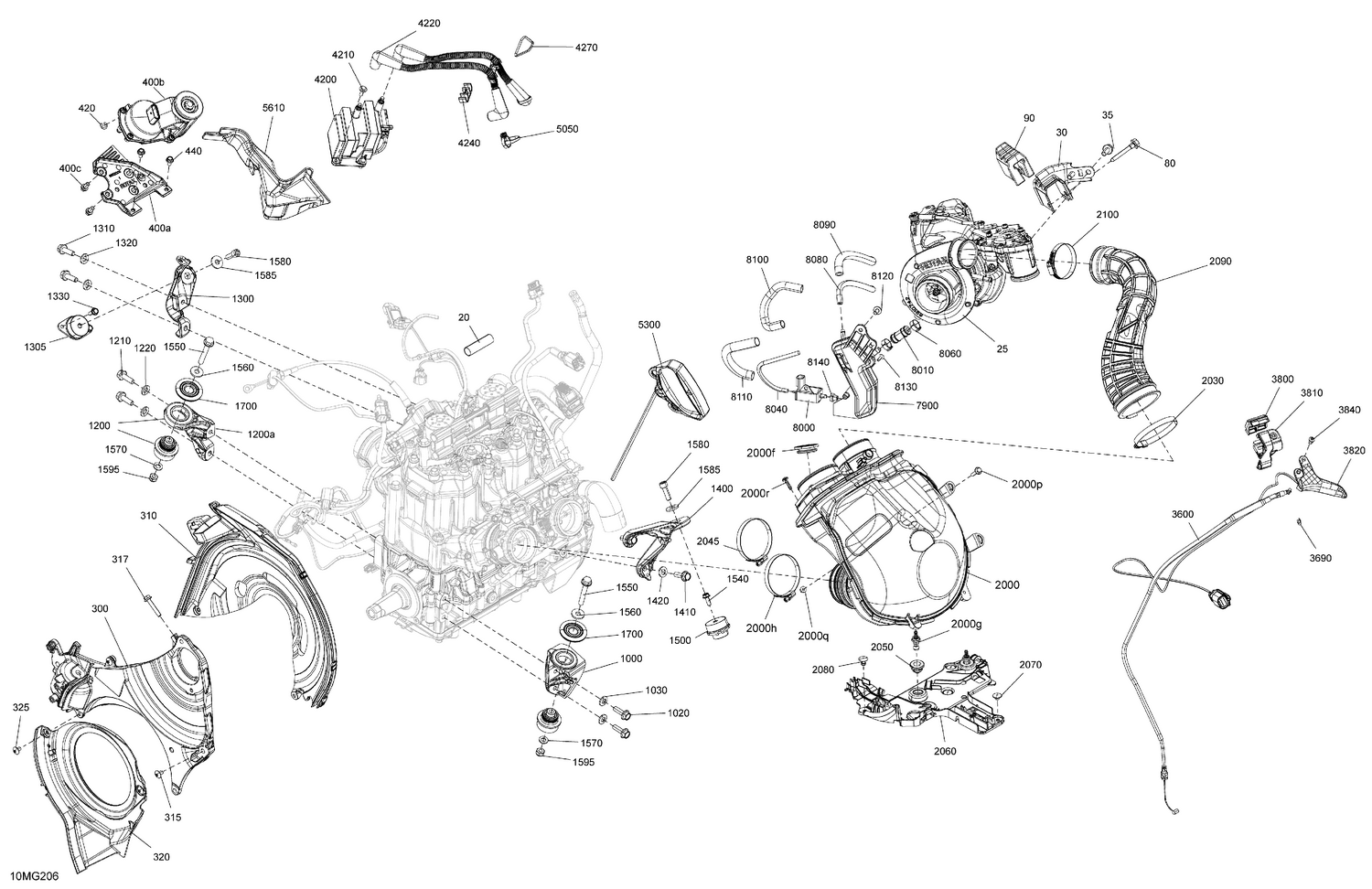

02- Engine - System
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 25 | 420893748 | Turbocharger Ass'y |
| 30 | 512061457 | Compressor Support |
| 35 | 207682046 | Hex. Flange Screw M8 X 20 |
| 80 | 250001058 | Hex. Flange Screw M8 X 50 |
| 90 | 512061328 | Upper Stopper |
| 300 | 512061696 | LH Machined Brace |
| 310 | 512061709 | CVT Cooling Duct |
| 315 | 250001420 | Screw Torx Truss Head Threadlock M6 |
| 317 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 320 | 512061450 | Lower CVT Cooling Duct |
| 325 | 250001420 | Screw Torx Truss Head Threadlock M6 |
| 400a | 420912006 | Mounting Bracket |
| 400b | 420889432 | Servo Motor Ass'y |
| 400c | 420440149 | Hex. Flange Screw M6 X 12 |
| 420 | 293370122 | Circlip |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000 | 512061705 | LH Rear Engine Support Ass'y |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200a | 512061419 | SUPPORT_ENGINE FL - Call your local BRP dealership |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300 | 512061439 | RH Front Engine Support |
| 1305 | 512061647 | Vibration Damper |
| 1310 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1330 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1400 | 512061411 | RH Rear Engine Support Ass'y |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061647 | Vibration Damper |
| 1540 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1580 | 205082544 | Socket Head Screw M8 X 25 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061530 | Engine Stopper |
| 2000f | 512061083 | Rubber |
| 2000g | 420441840 | Screw |
| 2000h | 293650383 | Gear Clamp |
| 2000p | 207652544 | Hex. Flange Screw M5 X 25 |
| 2000q | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 2000r | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2030 | 293650366 | Gear Clamp |
| 2045 | 293650383 | Gear Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061645 | Primary Chamber Support |
| 2070 | 293150322 | Black, Rivet Ornit 4.8 X 12 |
| 2080 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 2090 | 512061644 | Inlet Tube |
| 2100 | 293650090 | Norma Gear Clamp |
| 3600 | 512061224 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061676 | Accelerator Hand Lever Ass'y |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 4220 | 512061166 | Ignition Cable |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4270 | 293300059 | O-Ring |
| 5050 | 512060993 | Clamp |
| 5300 | 512060136 | Starter Grip |
| 5610 | 512061704 | Acoustic Panel |
| 7900 | 512061538 | Oil Tank |
| 8000 | 519000332 | Oil Pump |
| 8010 | 512061379 | Hose 7,94 mm ID |
| 8040 | 512061381 | Hose |
| 8060 | 293650360 | Crimp Clamp |
| 8080 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8090 | 503195447 | Protector Tube |
| 8100 | 503195447 | Protector Tube |
| 8110 | 503195447 | Protector Tube |
| 8120 | 250000767 | Torx Truss Screw M6 X 12 |
| 8130 | 250000759 | Torx Truss Pt K40 X 16 |
