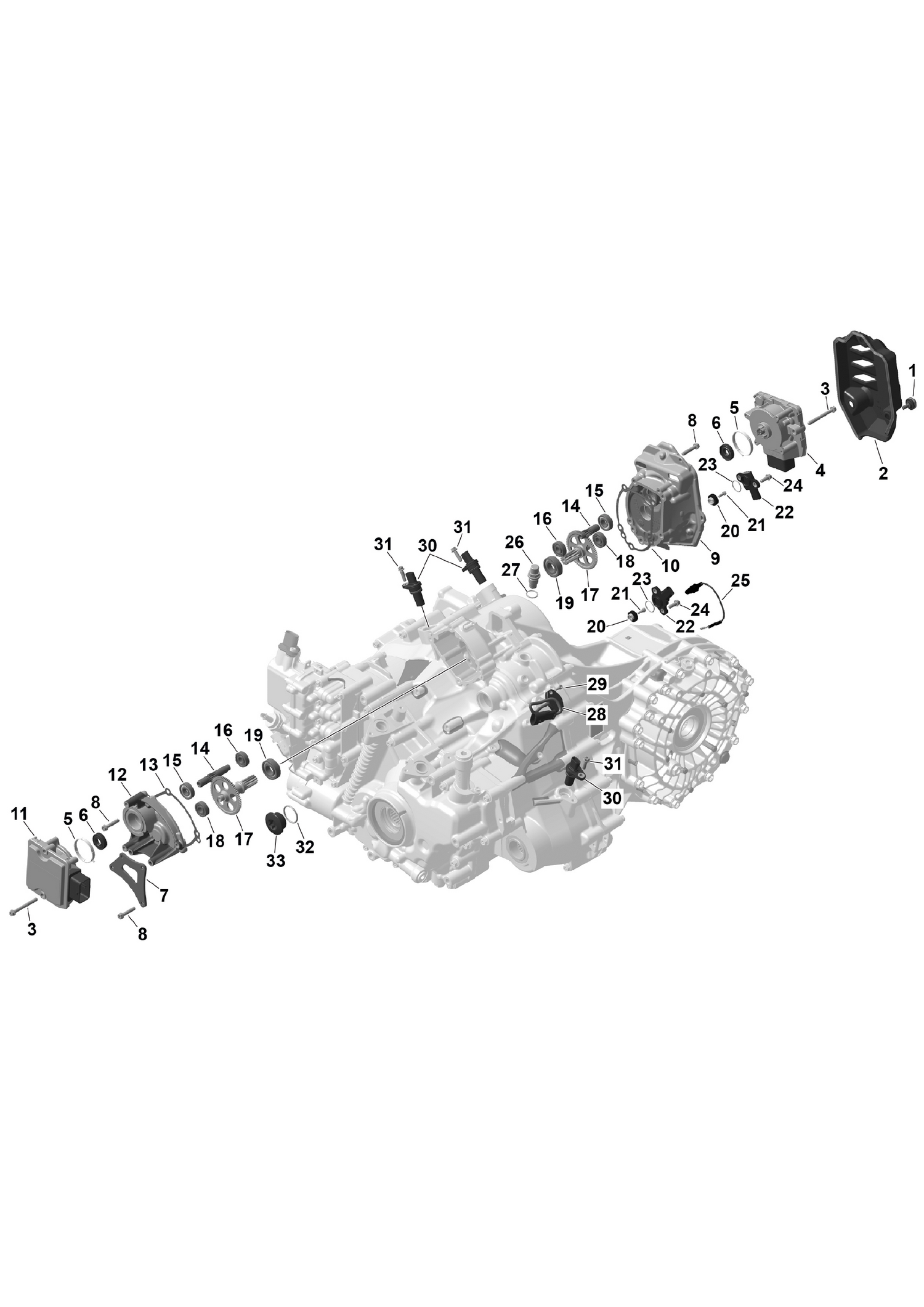

01- ROTAX - GearBox Servo Motors
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440207 | Torx Flange Screw M6 X 20 |
| 2 | 420201354 | Lateral Guard |
| 3 | 420440701 | Torx Flange Screw M6 X 55 |
| 4 | 420685685 | Servo Motor Ass'y |
| 5 | 420431660 | Gasket |
| 6 | 420250452 | Oil Seal |
| 7 | 420251101 | Support Bracket |
| 8 | 420440647 | Torx Flange Screw M6 X 30 |
| 9 | 420201601 | Servo Motor Cover |
| 10 | 420230064 | Gasket |
| 11 | 420685686 | Servo Motor Ass'y |
| 12 | 420201605 | Actuator Cover |
| 13 | 420230061 | Gasket |
| 15 | 420232400 | Balll Bearing |
| 16 | 420232100 | Ball Bearing |
| 18 | 420232101 | Ball Bearing 6000 |
| 19 | 420232626 | Ball Bearing 6003 |
| 20 | 420232101 | Ball Bearing 6000 |
| 21 | 420232626 | Ball Bearing 6003 |
| 22 | 420256003 | Magnet |
| 23 | 420440297 | Allen Screw M4X12 8.8 MK |
| 24 | 420265122 | Angle Of Rotation Sensor |
| 25 | 420230405 | O-Ring |
| 26 | 420440162 | Torx Flange Screw M6 X 16 |
| 27 | 420640192 | Contact Screw M10 Ass'y With Cable |
| 28 | 420441397 | Index Screw M16X1.5 Ass'y |
| 29 | 420430624 | Oil Pressure Regulator Gasket Ring |
| 30 | 420665977 | Position Sensor |
| 31 | 420440297 | Allen Screw M4X12 8.8 MK |
| 32 | XXX | Not Available As Spare Parts |
