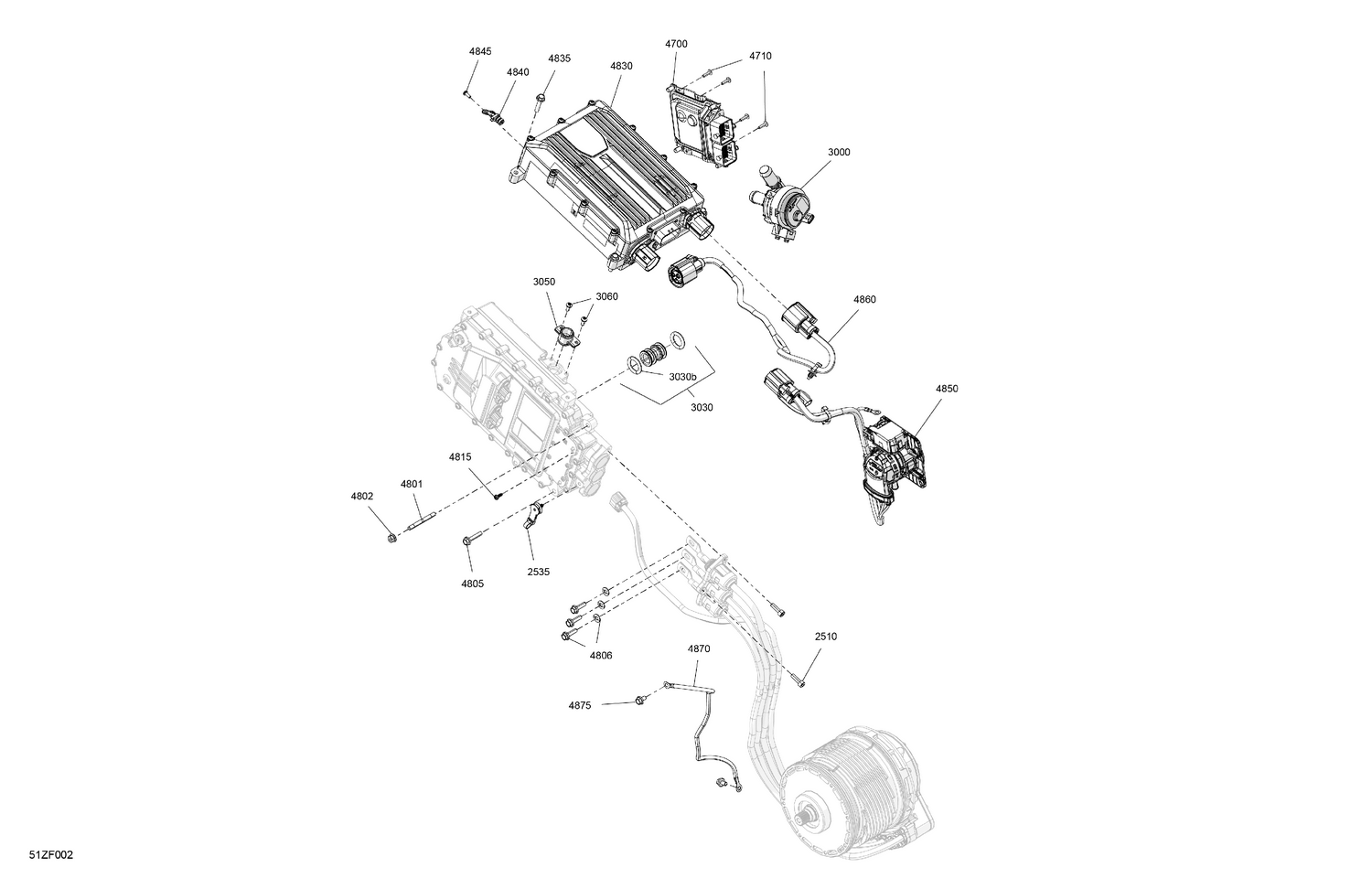

08- Electric - High Voltage
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2510 | 205562054 | Socket Head Screw M6 X 20 S.Grip |
| 2535 | 293750113 | Tie Wrap |
| 3000 | 709201048 | Cooling Pump |
| 3030b | 709201273 | O-RIng |
| 3050 | 709201559 | Coolant Manifold Ass'y |
| 3060 | 250001241 | Screw Torx M5 X 12 |
| 4700 | 420464172 | Vehicle Control Unit |
| 4710 | 250000759 | Torx Truss Pt K40 X 16 |
| 4801 | 509001410 | Threaded Rod |
| 4802 | 233161464 | Hex. Elastic Flange Nut M6 |
| 4805 | 250001211 | Hex. Flange Screw M6 X 30 |
| 4806 | 250013012 | Hex. Flange Screw Sems M6 X 22 |
| 4815 | 420841979 | Screw |
| 4835 | 250001211 | Hex. Flange Screw M6 X 30 |
| 4840 | 293710206 | Coolant Manifold Ass'y |
| 4845 | 250001298 | Torx Head Screw M4 X 10 |
| 4850 | 712000161 | High Voltage Charging Port Cable |
| 4860 | 712000035 | High Voltage Charger Cable |
| 4870 | 710009064 | Ground Cable |
