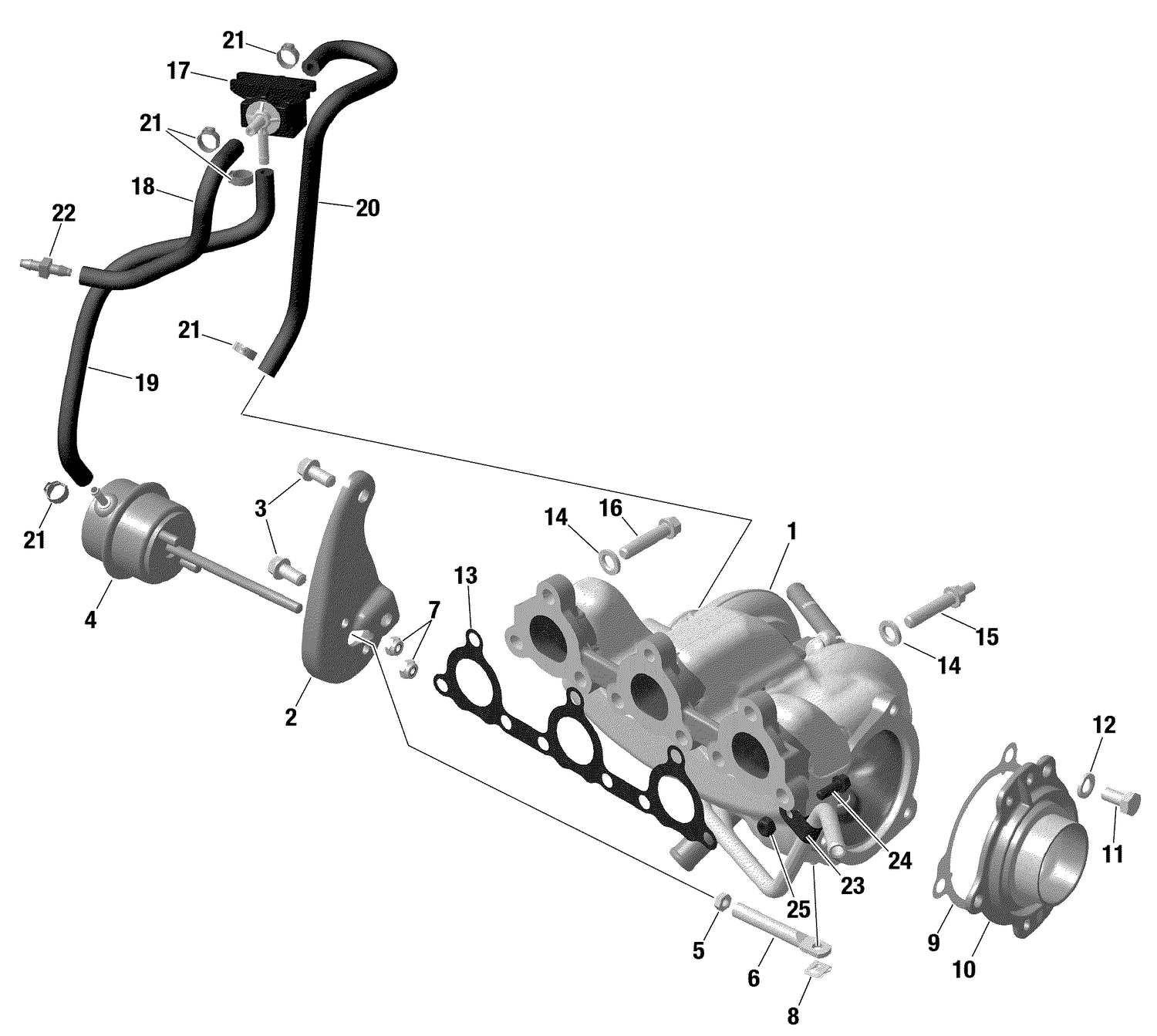

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Wastegate Support |
| 3 |
Not |
Available As Spare Part - Flange Torx Screw M8 X 16 |
| 5 |
Not |
Available As Spare Part - Nut M6 |
| 6 |
Not |
Available As Spare Part - Wastegate Rod |
| 7 |
Not |
Available As Spare Part - Washer |
| 8 |
420845000 |
Circlip |
| 9 |
Not |
Available As Spare Part - Exhaust Gasket |
| 10 |
Not |
Available As Spare Part - Exhaust Flange |
| 11 |
Not |
Available As Spare Part - Hex Screw M8 X 16 |
| 12 |
Not |
Available As Spare Part - Washer |
| 13 |
420431850 |
Gasket |
| 14 |
420827521 |
Washer This part replaces 420827520. |
| 15 |
420440693 |
Collar Screw M8 X 35 |
| 16 |
420641188 |
Torx Flange Screw M8 X 35 |
| 17 |
420664636 |
Solenoid Valve |
| 18 |
420201233 |
Hose 390MM |
| 19 |
420201233 |
Hose 390MM |
| 20 |
420201233 |
Hose 390MM |
| 21 |
420853133 |
Clamp 9.2-10.9 mm |
| 22 |
420922160 |
Tube Connector |
| 23 |
420851101 |
Cable Clamp |
| 24 |
420440162 |
Torx Flange Screw M6 X 16 |
