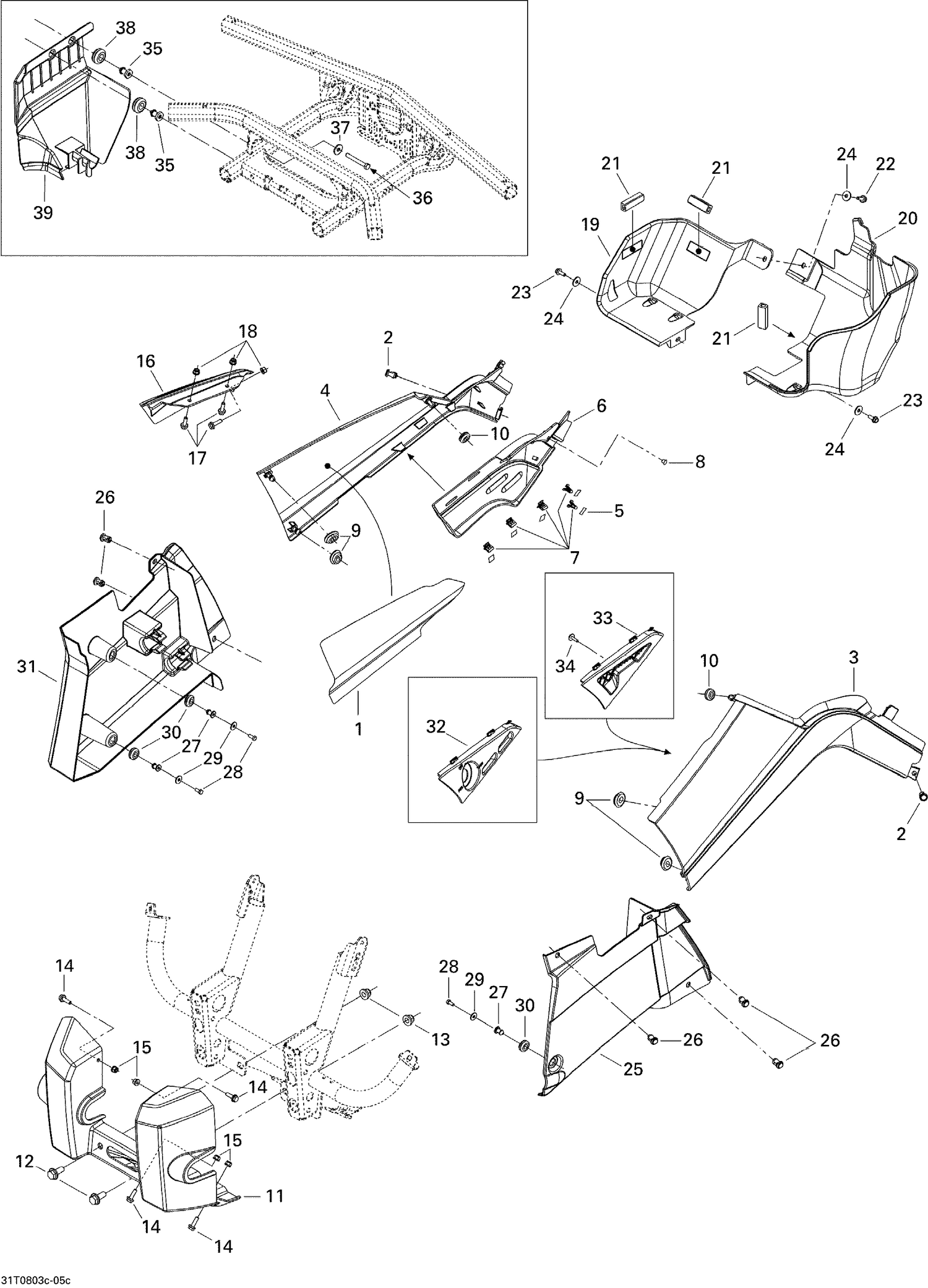

| Ref | Part Number | Description |
|---|
| 1 |
705000750 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 2 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 5 |
517305451 |
Heat Shield This part replaces 705000809. |
| 6 |
705001685 |
MUFFLER COVER - Call your local BRP dealership |
| 7 |
517302785 |
Edge Clip |
| 8 |
293830005 |
Rubber Bumper |
| 9 |
705005156 |
Oval Washer |
| 10 |
705003264 |
Grommet This part replaces 705002149. |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
705001529 |
LEVER INDICATOR - Call your local BRP dealership |
| 17 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
705000554 |
RH TANK PROTECTOR - Call your local BRP dealership |
| 20 |
705002176 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 21 |
219704365 |
Was 293200017 Neoprene Seal |
| 22 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 23 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 24 |
250200082 |
Flat Washer This part replaces 391302000. |
| 25 |
705000652 |
LH Inner Fender |
| 26 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 27 |
517303439 |
Knob |
| 28 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 29 |
391301600 |
Washer |
| 30 |
709000582 |
Grommet This part replaces 293720053. |
| 31 |
705002640 |
INNER FENDER - Call your local BRP dealership |
| 32 |
705001691 |
VALVE SUPPORT - Call your local BRP dealership |
| 33 |
Not |
Available As Spare Part - Not available for this vehicule |
| 34 |
Not |
Available As Spare Part - Not available for this vehicule |
| 35 |
Not |
Available As Spare Part - Not available for this vehicule |
| 36 |
Not |
Available As Spare Part - Not available for this vehicule |
| 37 |
Not |
Available As Spare Part - Not available for this vehicule |
| 38 |
Not |
Available As Spare Part - Not available for this vehicule |
