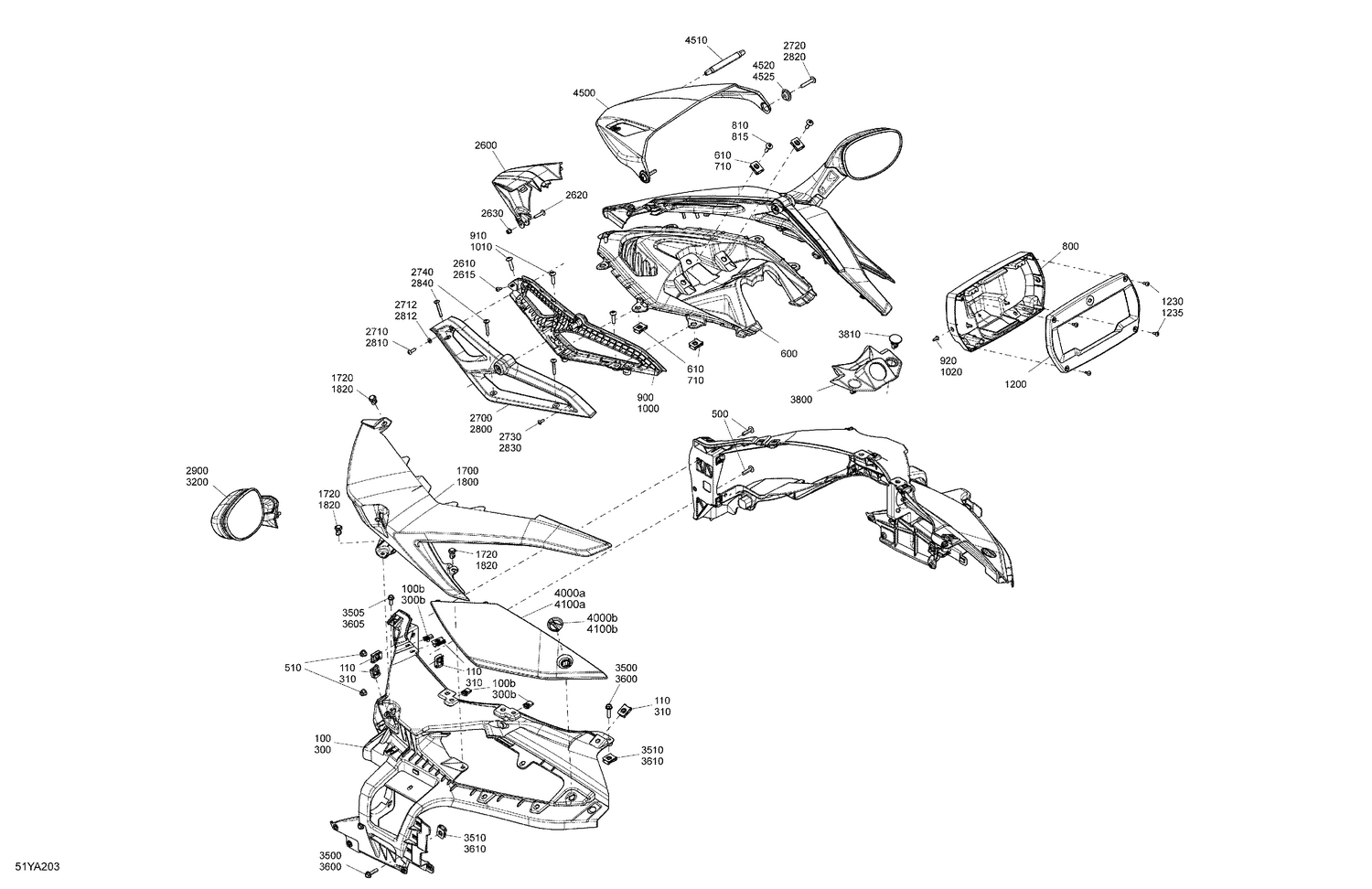

07- Body - Console - North America - Europe - Japan
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 100b | 250000958 | Panel Nut M5 X 0.8 |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 300b | 250000958 | Panel Nut M5 X 0.8 |
| 310 | 250100208 | Panel Nut M6 X 1.0 |
| 500 | 250000758 | Torx Screw M6 X 25 |
| 510 | 233261494 | Hex. Flange Elastic Nut M6 |
| 600 | 708400208 | Upper Fairing |
| 610 | 250100208 | Panel Nut M6 X 1.0 |
| 710 | 250100208 | Panel Nut M6 X 1.0 |
| 800 | 709402490 | Rear Gauge Trim |
| 810 | 250000722 | Torx Screw M6 X 20 |
| 815 | 250000722 | Torx Screw M6 X 20 |
| 900 | 708400053 | LH Slider Support |
| 910 | 250000807 | Torx Truss Screw M6 X 25 |
| 920 | 250001131 | Torx Truss PT K40 x 12 |
| 1000 | 708400054 | RH Slider Support |
| 1010 | 250000807 | Torx Truss Screw M6 X 25 |
| 1020 | 250001131 | Torx Truss PT K40 x 12 |
| 1200 | 709402487 | Front Gauge Trim |
| 1230 | 250001131 | Torx Truss PT K40 x 12 |
| 1235 | 250001131 | Torx Truss PT K40 x 12 |
| 1700 | 708400341 | Deep Black, LH Consol Fairing |
| 1720 | 293150230 | Tuflok Plastic Rivet |
| 1800 | 708400339 | Deep Black, RH Consol Fairing |
| 1820 | 293150230 | Tuflok Plastic Rivet |
| 2600 | 708400011 | Black Deep Nose Fairing |
| 2610 | 250001131 | Torx Truss PT K40 x 12 |
| 2615 | 250001131 | Torx Truss PT K40 x 12 |
| 2620 | 250000762 | Torx Screw M5 X 25 |
| 2630 | 233251494 | Elastic Flange Nut M5 |
| 2700 | 708400016 | LH Upper Console Header |
| 2710 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 2712 | 234051670 | Flat Washer M5 |
| 2720 | 250000646 | Black, Torx Screw M6 X 35 |
| 2730 | 250001131 | Torx Truss PT K40 x 12 |
| 2740 | 250000732 | Torx Screw Nylon |
| 2800 | 708400017 | RH Upper Console Header |
| 2810 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 2812 | 234051670 | Flat Washer M5 |
| 2820 | 250000646 | Black, Torx Screw M6 X 35 |
| 2830 | 250001131 | Torx Truss PT K40 x 12 |
| 2840 | 250000732 | Torx Screw Nylon |
| 2900 | 705015049 | LH Housing Rear View Mirror Ass'y |
| 3200 | 705015050 | RH Housing Rear View Mirror Ass'y |
| 3500 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3505 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3510 | 250100208 | Panel Nut M6 X 1.0 |
| 3600 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3605 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3610 | 250100208 | Panel Nut M6 X 1.0 |
| 3800 | 708400205 | Switch Bezel |
| 3810 | 708400046 | Cap |
| 4000a | 708400238 | Black Polycarbonate, LH Acces Panel |
| 4000b | 708400065 | Cover Latch Quarter Turn |
| 4100a | 708400239 | Black Polycarbonate, RH Acces Panel |
| 4100b | 708400065 | Cover Latch Quarter Turn |
| 4500 | 219400531 | Gauge Cover |
| 4510 | 219400531 | Gauge Cover |
| 4520 | 219400531 | Gauge Cover |
