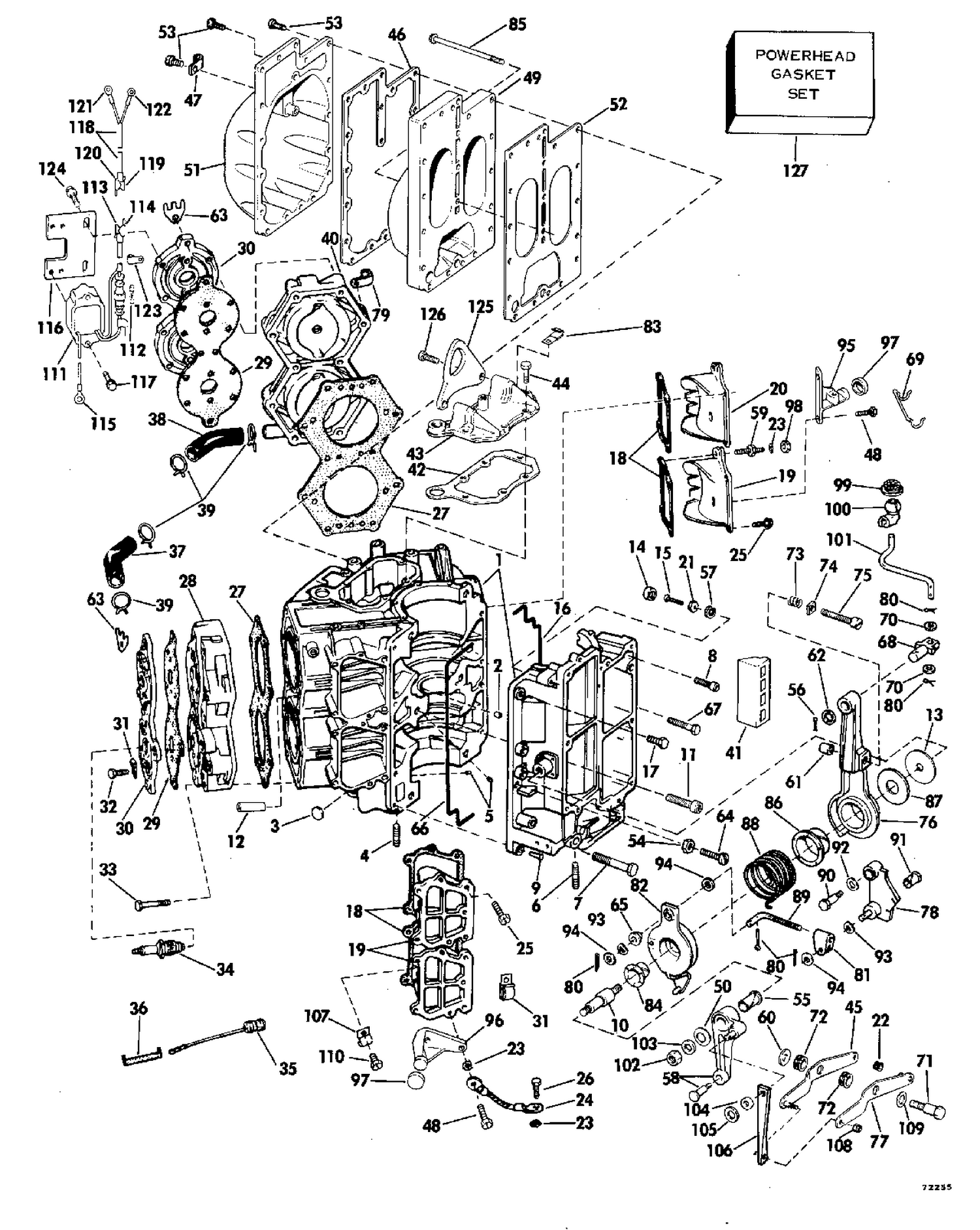

| Ref | Part Number | Description |
|---|
| 1 |
0387748 |
CYLINDER C'CASE ASSY,85 hp |
| 1 |
0387749 |
CYLINDER C'CASE ASSY,115 hp |
| 1 |
0387750 |
CYLINDER C'CASE ASSY,140 hp |
| 3 |
0310221 |
CORE PLUG |
| 4 |
0321640 |
STUD |
| 5 |
0310507 |
PLUG |
| 8 |
0318907 |
SCREW, C'case to cyl top |
| 10 |
0318558 |
STUD, Throttle lever |
| 11 |
0319592 |
SCERW,Cyl.to c'case,center |
| 12 |
0322411 |
DEFLECTOR, Water pass |
| 13 |
0318562 |
WASHER, Stud |
| 14 |
0314416 |
BUMBER, Advance screw |
| 16 |
0314964 |
SEAL, Cyl, to c'case |
| 17 |
0300646 |
VIS, ancrage |
| 18 |
0307133 |
GASKET |
| 19 |
0310532 |
COVER BY-PASS |
| 20 |
0323045 |
COVER, By-pass This part replaces 0311240. |
| 22 |
0318590 |
BUSHIG,Bellcrank & rod |
| 24 |
0376349 |
FIL, masse |
| 25 |
0306049 |
SCREW |
| 27 |
0318358 |
GASKET, Cyl. head |
| 27 |
0318662 |
GASKET, Cyl. head 85 HP |
| 28 |
0318332 |
CYLINDER HEAD, Stbd |
| 28 |
0326503 |
CYLINDER HEAD, Stbd., 115 only This part replaces 0322215. |
| 29 |
0318335 |
COVER, Cylinder head |
| 30 |
0318333 |
COVER, Cylinder head |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0307267 |
SCREW |
| 34 |
0384771 |
SPARK PLUG, Ch ul-77v |
| 34 |
0386939 |
PARK PLUG,AC M40FFX |
| 34 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 35 |
0386686 |
SWITCH TEMP |
| 37 |
0340975 |
HOSE, Cylinder head, stbd. This part replaces 0321724. |
| 38 |
0340976 |
HOSE, Cylinder head, port This part replaces 0321723. |
| 39 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 40 |
0321898 |
CYL.HEAD,Port,85 HP |
| 40 |
0321900 |
CYL.HEAD,Port,115 HP |
| 41 |
0322684 |
FILLER BLOCK |
| 42 |
0317951 |
GASKET, Water pass. cover |
| 43 |
0318473 |
COVER, Water passage |
| 45 |
0385833 |
BELLCRANK & SHOULDER STUD ASSEMBLY |
| 46 |
0317955 |
GASKET, Exh. cover |
| 47 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 49 |
0317729 |
COVER, Exh. inner |
| 49 |
0317953 |
EXHAUST MANIFOLD |
| 49 |
0322689 |
COVER, Exh. inner |
| 51 |
0317902 |
COVER, Exhause outer |
| 51 |
0390015 |
COVER, Exh. manifold This part replaces 0317956. |
| 52 |
0318156 |
GASKET, Exh manifold to cyl. |
| 53 |
0308728 |
SCREW |
| 53 |
0323626 |
SCREW This part replaces 0317952. |
| 54 |
0306531 |
NUT, Screw throttle |
| 55 |
0318208 |
BUSHING, Shift lever |
| 56 |
0120356 |
COTTER PI, Retainer |
| 58 |
0385684 |
SHIFT LEVER & STUD ASSY |
| 61 |
0318660 |
BUMPER, Screw, throttle stop |
| 62 |
0330179 |
WASHER This part replaces 0303304. |
| 63 |
0313774 |
RETAINER CYL. HEAD COVER |
| 66 |
0319274 |
SEAL, Cyl to c'case, stbd. |
| 67 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 68 |
0315104 |
RETAINER, #3 ing. lead |
| 72 |
0318248 |
BUSHING BELLCRANK |
| 75 |
0322357 |
SCREW, Idle adjust |
| 76 |
0318561 |
LEVER, Spark adjust |
| 77 |
0385683 |
BELLCRANK & SHLDR PIN ASSY |
| 78 |
0395310 |
THROTTLE CAM ASSY. This part replaces 0386588. |
| 81 |
0310524 |
YOKE |
| 82 |
0318207 |
BUSHING,Shift lever |
| 83 |
0310441 |
CLAMP, CPS lead |
| 84 |
0318559 |
BUSHING |
| 85 |
0317972 |
ACREW,Exh manf to cyl.,4-1/4" long |
| 86 |
0318560 |
BUSHING, Spark lever |
| 87 |
0314098 |
WASHER, Throttle lever |
| 88 |
0314094 |
LINK, Throttle lever to cam |
| 89 |
0315107 |
LINK, Throttle lever |
| 90 |
0314136 |
VIS, came de papillon |
| 92 |
0204445 |
BOW WASHER |
| 93 |
0204757 |
BOW WASHER |
| 94 |
0302474 |
WAHSER,Link |
| 95 |
0319217 |
PIN,Clevis to shift lock |
| 96 |
0319218 |
SUPPORT BNRACE,Stbd. |
| 97 |
0313581 |
BUMBER, Mount screw |
| 99 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 100 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 101 |
0318402 |
ROD, Spare advance |
| 104 |
0306358 |
FLAT WASHER, Helm mounting |
| 105 |
0204757 |
BOW WASHER |
| 106 |
0322657 |
ROD,Shift lever to bellcrank |
| 110 |
0303311 |
SCR,Clamp,eng cable |
| 111 |
0581580 |
VOLTAGE REGULATOR This part replaces 0581741. |
| 116 |
0511522 |
MOUNTING PLATE,Regulator |
| 117 |
0317180 |
SCREW |
| 118 |
0581401 |
LEAD, Regulator extension |
| 123 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 125 |
0317973 |
LIFT BRACKET |
| 126 |
0314515 |
SCREW |
