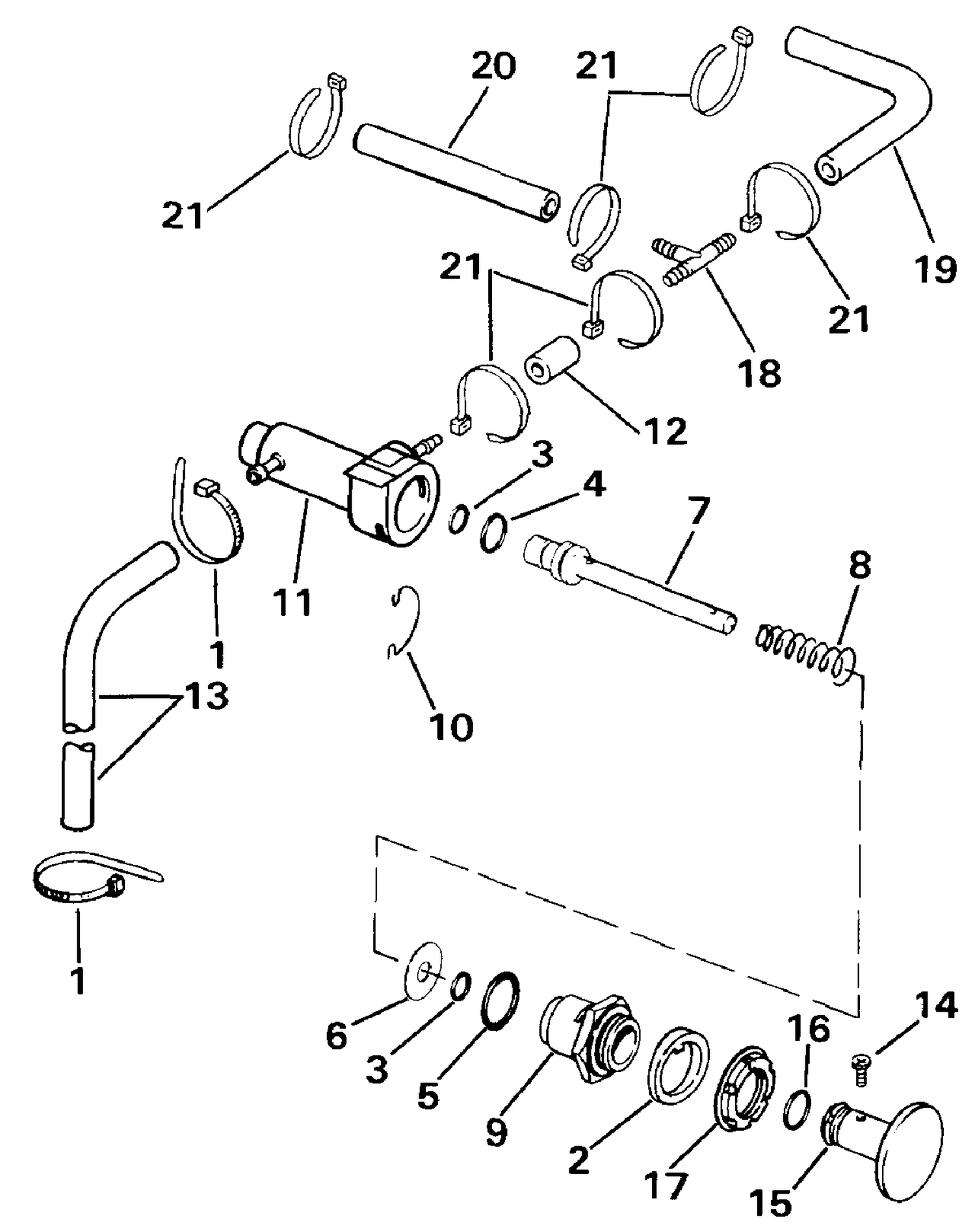

| Ref | Part Number | Description |
|---|
| 1 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 2 |
0328836 |
WASHER, Primer pump |
| 9 |
0398868 |
END CAP This part replaces 0328802. |
| 12 |
HOSE, |
Primer to tee 26mm (1") |
| 13 |
HOSE, |
Carb. to primer 190mm (7-1/2") |
| 14 |
0329054 |
SCREW |
| 15 |
0395781 |
KNOB & DETENT ASSY |
| 16 |
0330992 |
JOINT TORIQUE, bouton |
| 17 |
0329670 |
NUT |
| 18 |
0325569 |
T, amorçage |
| 19 |
HOSE, |
Tee to carb. 203mm (8") |
| 20 |
HOSE, |
Tee to manifold 114mm (4-1/2") |
| 0398357 |
5007336 |
Kit Ay This part replaces 0398357. |
