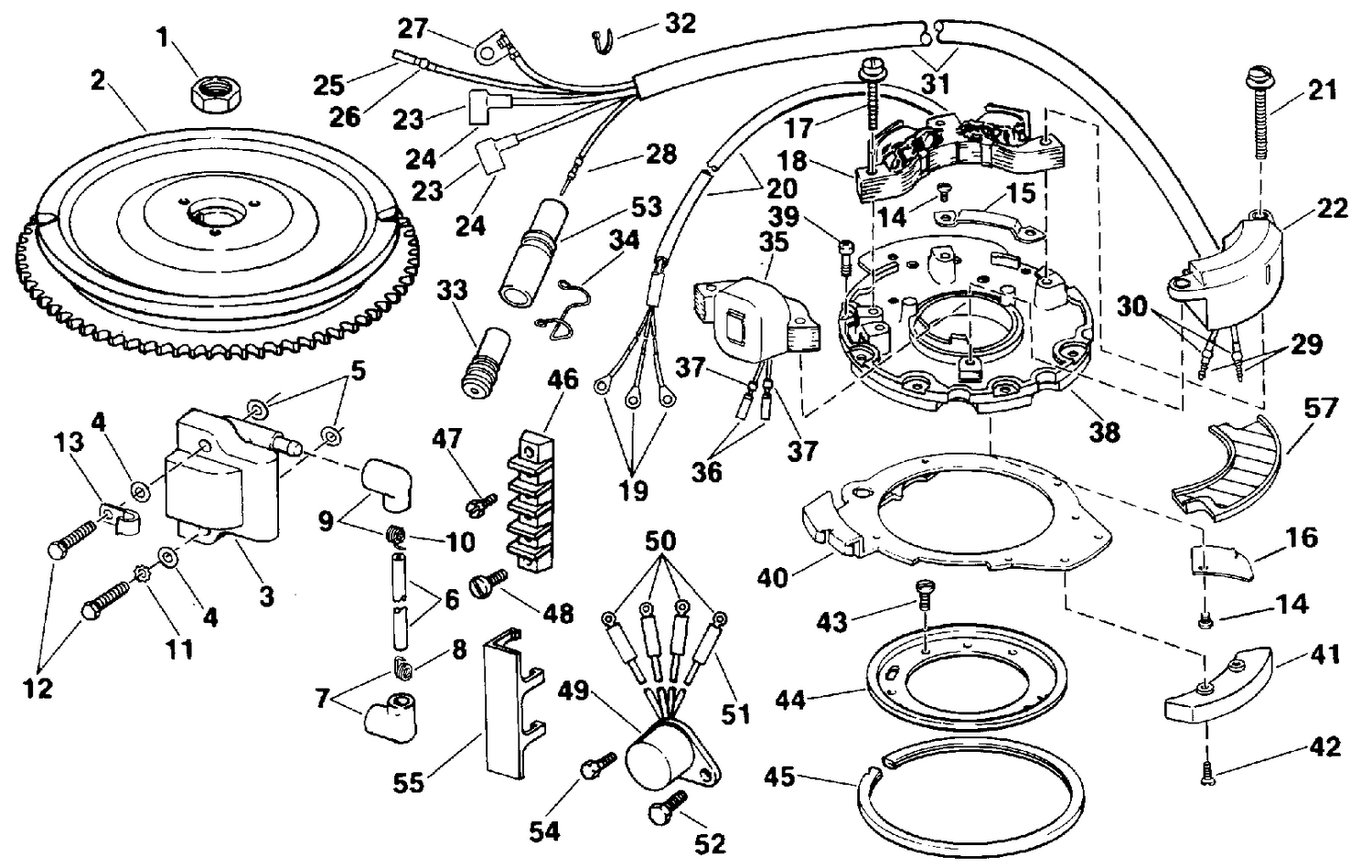

| Ref | Part Number | Description |
|---|
| 2 |
0583474 |
FLYWHEEL ASSEMBLY |
| 3 |
0582508 |
COIL ASSY |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 13 |
0330151 |
CLAMP, Harness to oil tank boss |
| 14 |
0303212 |
VIS, collier & capot |
| 15 |
0511458 |
COLLIER, fils |
| 16 |
0511459 |
CACHE, fils |
| 17 |
0337522 |
VIS, ensemble bobine |
| 18 |
0584341 |
STATOR ASSEMBLY |
| 20 |
0511601 |
SLEEVE, Leads |
| 21 |
0337521 |
SCREW, Module |
| 22 |
0584489 |
IGNITION MODULE This part replaces 0584331. |
| 34 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 35 |
0584333 |
CHARGE COIL & LAM. ASSY. |
| 38 |
0583285 |
PLAT & SLEEVE ASSY. |
| 39 |
0511460 |
VIS, dispositif de retenue |
| 40 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 41 |
0326876 |
CAM, Throttle control |
| 42 |
0331036 |
VIS, attache de palier |
| 43 |
0315287 |
SCREW |
| 44 |
0322102 |
PLATE, Support |
| 45 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 46 |
0511949 |
BORNIER |
| 47 |
0329182 |
VIS, borne |
| 48 |
0306644 |
VIS, capteur de papillon |
| 49 |
0581778 |
REDRESSEUR |
| 52 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 54 |
0314576 |
SCREW |
| 55 |
0335813 |
COVER, Block |
