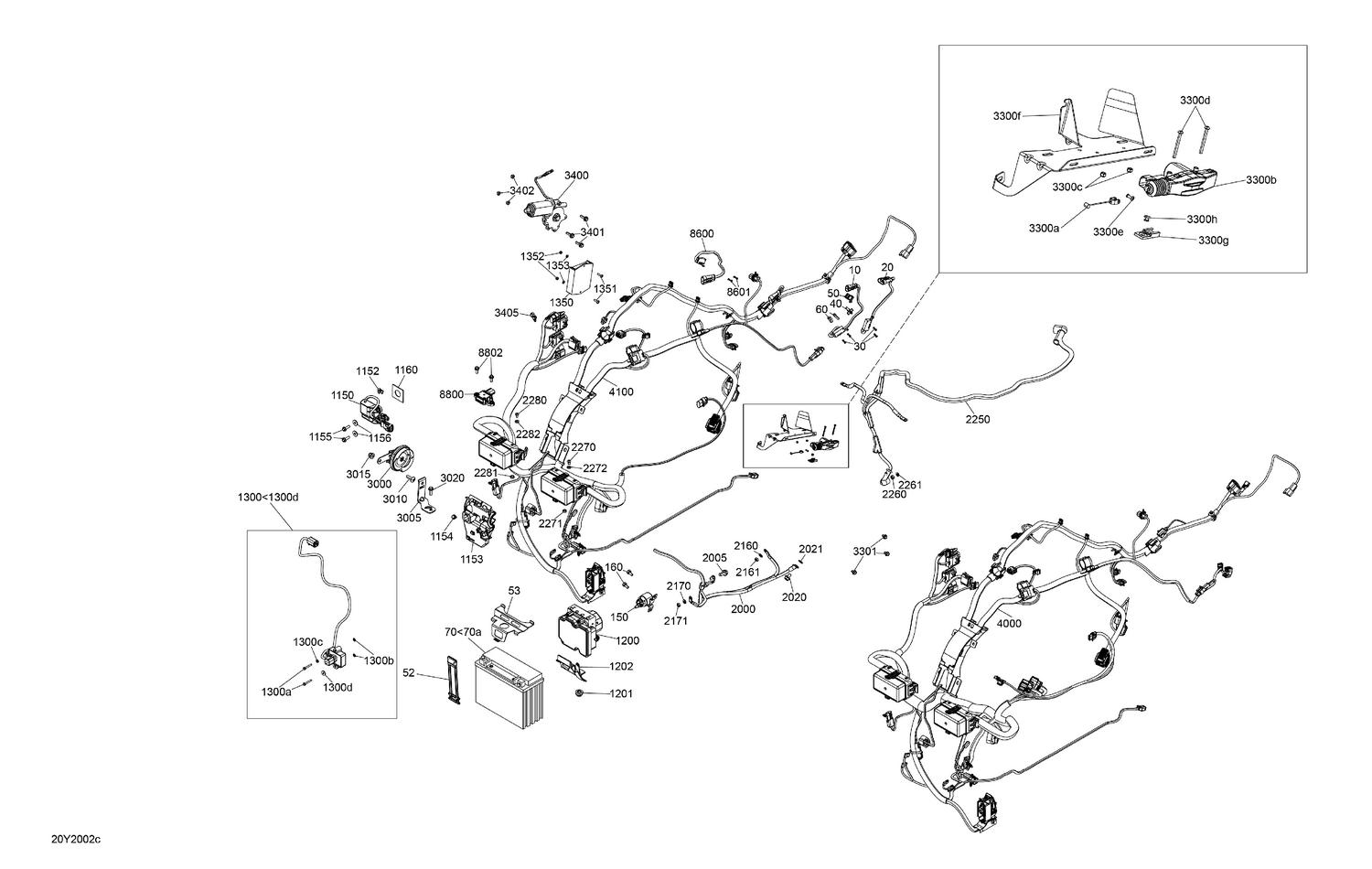

10- Electrical System Frame
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710003412 | Brake Light Switch Ass'y |
| 20 | 710001379 | Brake Pressure Switch Ass'y |
| 30 | 293150150 | Pop Rivet |
| 40 | 293750009 | Tie-Rap 173 mm |
| 50 | 710002899 | Clip Tie-Rap |
| 52 | 520000528 | Latch |
| 53 | 710002893 | Battery Holder |
| 60 | 293750002 | Tie Wrap 142 mm |
| 150 | 710007777 | Starter Relay This part replaces 710001364. |
| 160 | 210261250 | Hex. Flange Screw M6 X 12 |
| 1150 | 710004916 | Dess Module |
| 1152 | 293750009 | Tie-Rap 173 mm |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710003996 | VCM Harness Protector |
| 1300a | XXX | Not Available As Spare Parts |
| 1300b | XXX | Not Available As Spare Parts |
| 1300c | XXX | Not Available As Spare Parts |
| 1300d | XXX | Not Available As Spare Parts |
| 1350 | 710005887 | PBM Module Ass'y |
| 1351 | 250000750 | Torx Screw M4 X 16 |
| 1352 | 232541484 | Elastic Stop Nut M4 |
| 1353 | 234041480 | Flat Washer 4 mm |
| 2000 | 710006399 | Starter Cable Ass'y |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561434 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710005026 | Pos Cable |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 3000 | 710004940 | Horn |
| 3005 | 710005769 | Horn Support |
| 3010 | 250000874 | Torx Truss M8 X 25 |
| 3015 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3020 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 3300a | 710002889 | Reverse Cable |
| 3300b | 710011269 | Actuator |
| 3300c | 232541414 | Elastic Stop Nut M4 |
| 3300d | 205444056 | Socket Head Screw M4 X 40 |
| 3300e | 390403000 | Pop Rivet 5/32 |
| 3300f | 710005642 | Reverse Actuator Support |
| 3300g | 270000141 | Clip |
| 3300h | 390402400 | Pop Rivet 3/16" |
| 3301 | 210261250 | Hex. Flange Screw M6 X 12 |
| 3400 | 710002756 | Control Gear Motor |
| 3401 | 207662054 | Hex. Flange Screw M6 X 20 |
| 3402 | 232561434 | Elastic Stop Nut M6 |
| 3405 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 8600 | 710001379 | Brake Pressure Switch Ass'y |
| 8601 | 293150150 | Pop Rivet |
| 8800 | 710005658 | Yaw Rate Sensor |
