Home / BRP / 2011 / Skandic / Tundra LT 600ACE, 2011 000GHBA00 000GHBB00 / 01- Engine

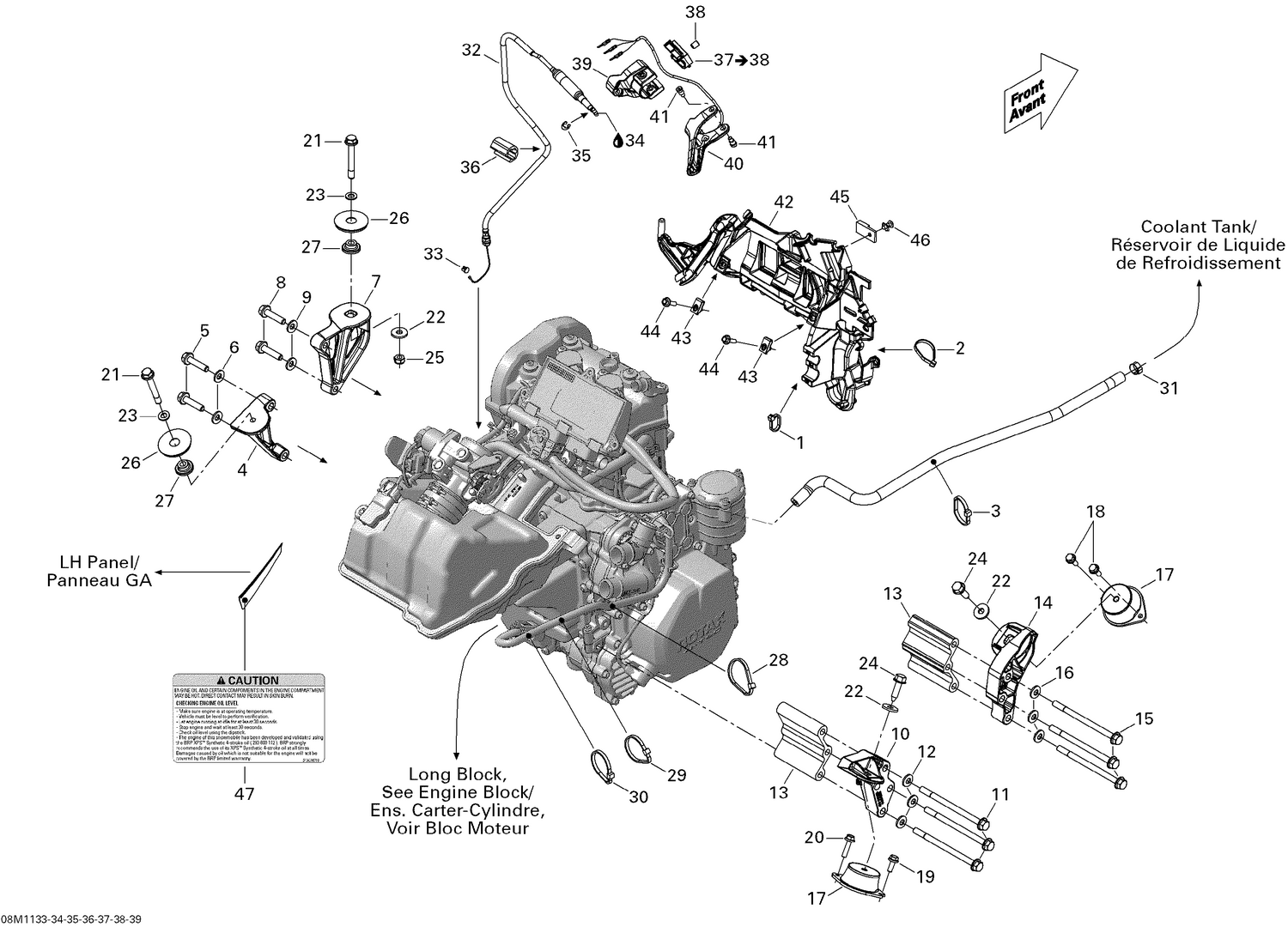

01- Engine

01- Engine

Parts (43)

RefPart NumberDescription
1 414115200 Tie-Rap 180 mm
2 414115200 Tie-Rap 180 mm
3 414115200 Tie-Rap 180 mm
4 512061139 Rear Support PTO This part replaces 512060474.
6 234281474 Conical Spring Washer M8
7 512061140 Front Support PTO This part replaces 512060475.
9 234281474 Conical Spring Washer M8
10 512061142 Rear Support MAG This part replaces 512060497.
11 230582544 Hex. Flange Screw M8 X 125, Scotch Grip
12 234281474 Conical Spring Washer M8
13 512060505 Shim
14 512060663 Front Support, MAG This part replaces 512060498.
15 230582544 Hex. Flange Screw M8 X 125, Scotch Grip
16 234281474 Conical Spring Washer M8
17 512060729 Rubber Mount This part replaces 512060457.
18 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
19 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
20 207562534 Hex. Flange Screw M6 X 25, Scotch Grip
21 207586044 Hex. Flange Screw M8 X 60, Scotch Grip
22 503183200 Yellow, Washer
23 250200008 Flat Washer With Teflon 8 mm
24 250000257 Cone Screw, M8 X 30
25 232581414 Hex. Elastic Stop Nut M8
26 512061203 Stopper This part replaces 512060647.
27 512060285 Spacer
28 414115200 Tie-Rap 180 mm
29 414115200 Tie-Rap 180 mm
30 414115200 Tie-Rap 180 mm
31 293650046 Oetiker Clamp
32 512060607 Throttle Cable
33 707000434 Cable Guide
34 219704453 Was 293550004 Dielectric Grease, 150 g
35 414274500 Circlip
36 512060313 Protector
38 414440800 Socket Set Screw M8 X 10
39 512060860 Lower Housing This part replaces 512060430.
40 512061252 Throttle Handle Ass'y This part replaces 512060616.
41 732601143 Flange Screw
42 512060509 MODULE SUPPORT - Call your local BRP dealership
43 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
44 207552044 Hex. Flange Screw M5 X 20, Scotch Grip
45 270000141 Clip This part replaces 515175917.
46 293150027 Avdel Rivet
