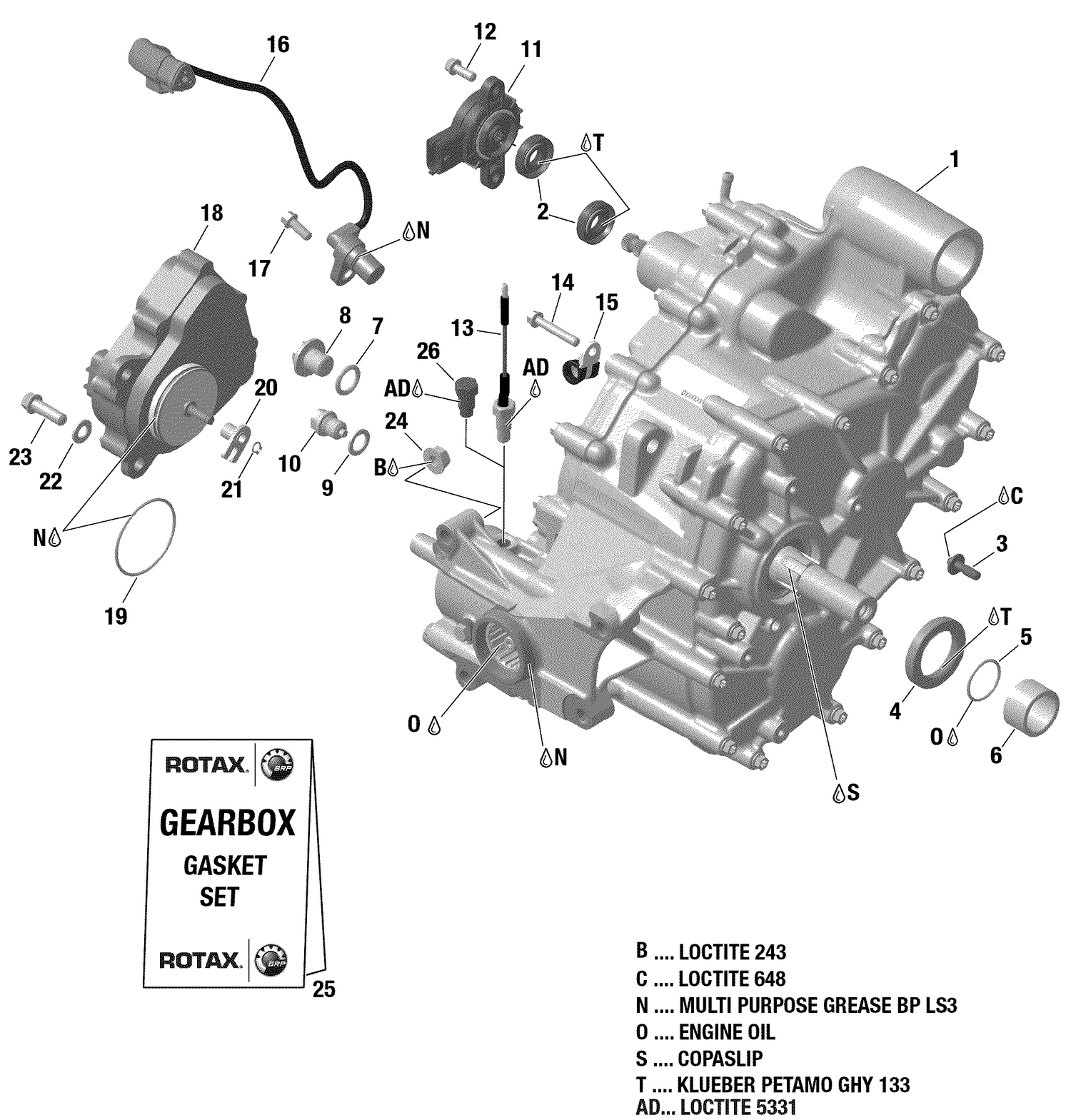

01- ROTAX - Gear Box And Components 420686562
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420932435 | Ball Bearing |
| 3 | 420441433 | Distance Screw M6 This part replaces 420441431. |
| 4 | 420950089 | Oil Seal |
| 5 | 420631612 | O-Ring This part replaces 420631610. |
| 6 | 420647267 | Distance Ring This part replaces 420647253. |
| 7 | 420650350 | O-Ring |
| 8 | 420241662 | Plug Screw M14 X 1.5 This part replaces 420241660. |
| 9 | 420250640 | Copper Washer |
| 10 | 420241787 | Magnetic Drain Plug M12 |
| 11 | 420266168 | Angle Rotation Sensor |
| 12 | 420440162 | Torx Flange Screw M6 X 16 |
| 13 | 420640192 | Contact Screw M10 Ass'y With Cable |
| 14 | 420440274 | Torx Flange Screw M6 X 35 |
| 15 | 420251692 | Cable Clamp This part replaces 420251691. |
| 16 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265621. |
| 17 | 420440162 | Torx Flange Screw M6 X 16 |
| 19 | 293300117 | O-Ring |
| 20 | 415129175 | Shifting Fork |
| 21 | 293370042 | Circlip |
| 22 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 23 | 420440372 | Torx Flange Screw M8 X 25 |
| 24 | 420842619 | Hex. Nut M8 |
| 25 | 420684149 | Gasket Set |
