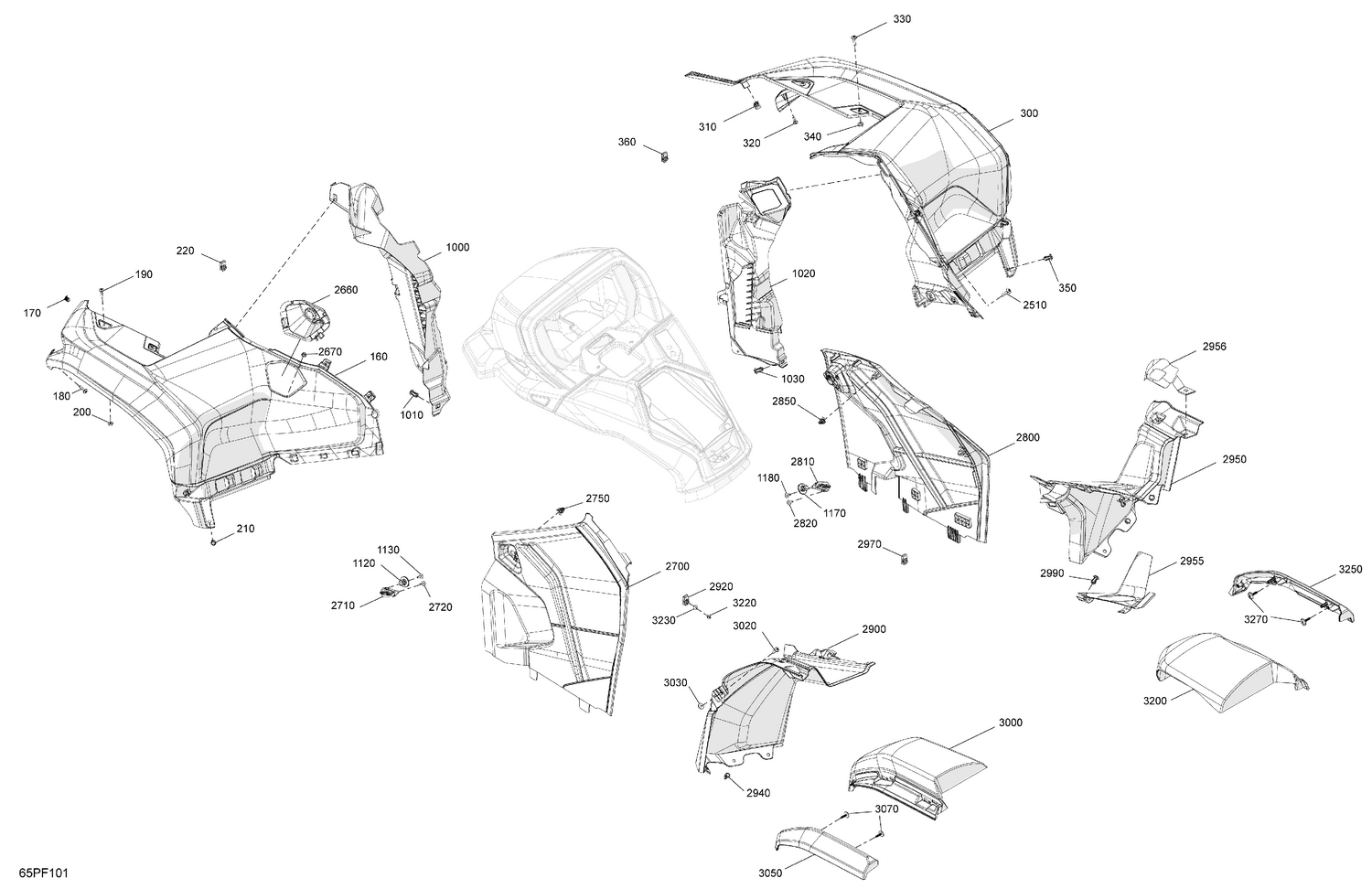

07- Body - Fender Kit
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 160 | 715011196 | Granite Gray, LH Front Fender Kit |
| 170 | 517302785 | Edge Clip |
| 180 | 250000720 | Torx Screw K50 X 16 |
| 190 | 250001257 | Screw Torx M6 X 20 |
| 200 | 233161414 | Hex. Flange Nut M6 |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 220 | 250100198 | Panel Nut M6 X 1.0 |
| 300 | 715011204 | Granite Gray, RH Front Fender Kit |
| 310 | 517302785 | Edge Clip |
| 320 | 250000720 | Torx Screw K50 X 16 |
| 330 | 250001257 | Screw Torx M6 X 20 |
| 340 | 233161414 | Hex. Flange Nut M6 |
| 350 | 293150230 | Tuflok Plastic Rivet |
| 360 | 250100198 | Panel Nut M6 X 1.0 |
| 1000 | 705013311 | LH Inner Fender |
| 1010 | 293150230 | Tuflok Plastic Rivet |
| 1020 | 705013312 | RH Inner Fender |
| 1030 | 293150230 | Tuflok Plastic Rivet |
| 1120 | 517305985 | Rear Stud |
| 1130 | 250000725 | Screw M4 X 16 |
| 1170 | 517305985 | Rear Stud |
| 1180 | 250000725 | Screw M4 X 16 |
| 2510 | 250000712 | Torx Screw M6 X 20 |
| 2660 | 705014661 | Switch Support |
| 2670 | 250100163 | Pressure Nut |
| 2700 | 705019073 | LH Panel |
| 2710 | 517305774 | LH Rear Latch |
| 2720 | 250000725 | Screw M4 X 16 |
| 2750 | 517306478 | Clip |
| 2800 | 705019064 | RH Panel |
| 2810 | 517305773 | RH Rear Latch |
| 2820 | 250000725 | Screw M4 X 16 |
| 2850 | 517306478 | Clip |
| 2900 | 715011207 | LH Rear Fender Support Kit |
| 2920 | 250100198 | Panel Nut M6 X 1.0 |
| 2940 | 293150230 | Tuflok Plastic Rivet |
| 2950 | 705014734 | RH Rear Fender Support |
| 2955 | 705018605 | Heat Shield |
| 2956 | 705018563 | Heat Shield |
| 2970 | 250100198 | Panel Nut M6 X 1.0 |
| 2990 | 293150230 | Tuflok Plastic Rivet |
| 3000 | 705019535 | Granite Gray, LH Rear Fender |
| 3020 | 250001257 | Screw Torx M6 X 20 |
| 3030 | 234062410 | Flat Washer 6 mm |
| 3050 | 705018512 | Deep Black, LH Rear Fender Trim |
| 3070 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 3200 | 705019536 | Granite Gray, RH Rear Fender |
| 3220 | 250001257 | Screw Torx M6 X 20 |
| 3230 | 234062410 | Flat Washer 6 mm |
| 3250 | 705018514 | Deep Black, RH Rear Fender Trim |
