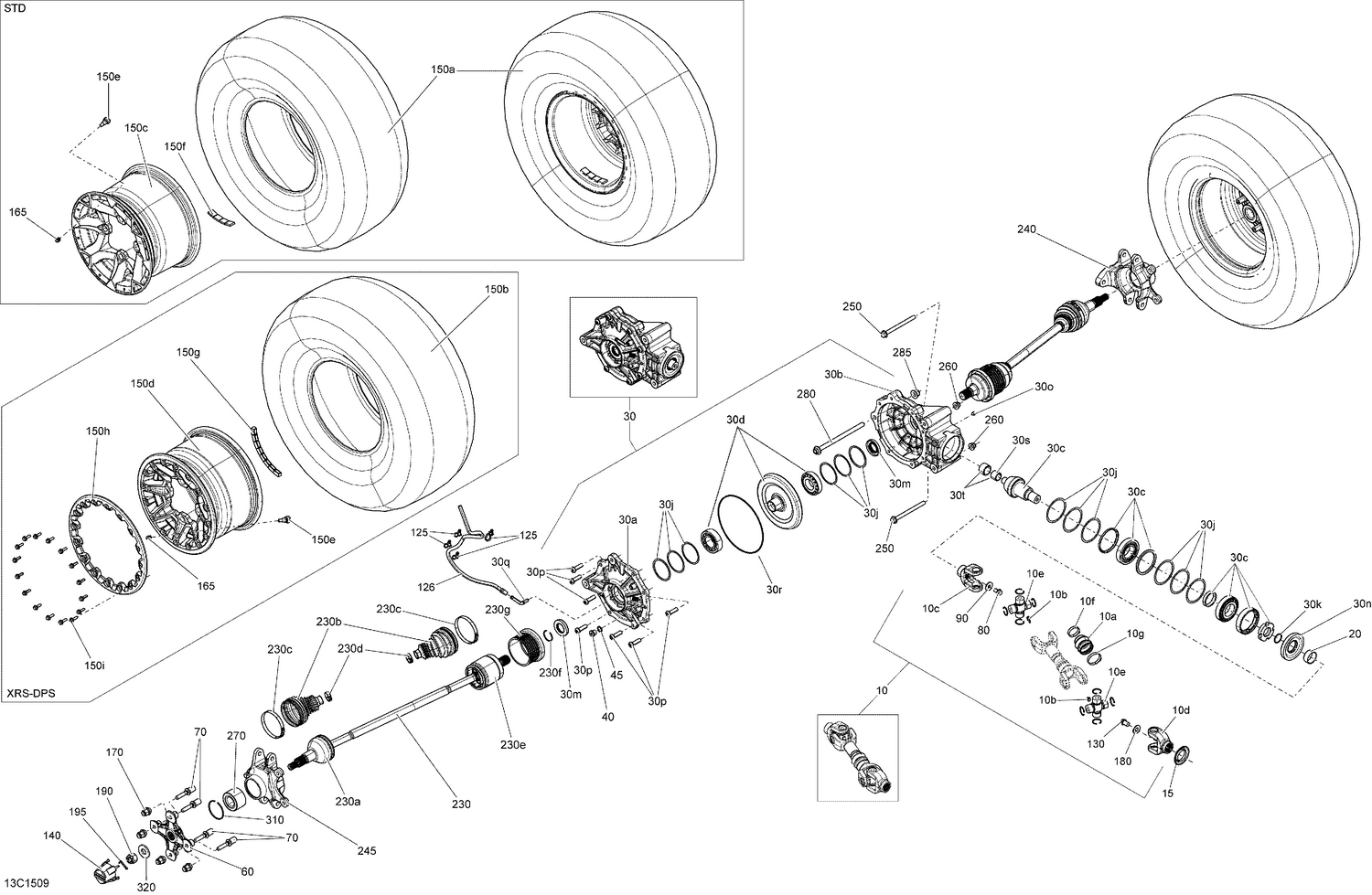

08- Drive System, Rear _13C1509
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 715900184 | Grease Fitting |
| 10b | 715900295 | Grease Fitting |
| 10c | 715900271 | Joint |
| 10d | 715900272 | Joint |
| 10e | 703500846 | Universal Joint Ass'y This part replaces 715900278. |
| 10f | 509000045 | Oetiker Gear Clamp 36.1MM |
| 10g | 293650138 | Oetiker Gear Clamp 44.0MM |
| 15 | 705501123 | Protector |
| 20 | 705400036 | Wear Ring |
| 30a | 705502171 | REAR COVER - Call your local BRP dealership |
| 30b | 705502172 | PINION COVER - Call your local BRP dealership |
| 30c | 703500867 | Pinion Kit |
| 30d | 703500868 | Gear Kit |
| 30j | 703500839 | Differential Shim Kit |
| 30k | 705501554 | O-Ring |
| 30m | 705501556 | Oil Seal |
| 30n | 705502276 | Oil Seal This part replaces 705501933. |
| 30o | 705501724 | Plug Drain |
| 30p | 705502063 | Screw |
| 30q | 705501584 | Breather Tube |
| 30r | 705501749 | Oil Seal |
| 30s | 703500840 | Needle Bearing |
| 30t | 703500840 | Needle Bearing This part replaces 703500869. |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 60 | 705501900 | Wheel Hub |
| 70 | 250300060 | Wheel Stud This part replaces 250300051. |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 90 | 250200014 | Flat Washer M10 |
| 125 | 710003168 | Dart Tie Rap 200MM |
| 126 | 219704410 | Polyurethane Hose 10000Mm Long |
| 130 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 140 | 705400928 | Wheel Cap |
| 150e | 705400193 | Rim Valve With Cap |
| 165 | 293000110 | Valve Cap |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 180 | 250200102 | Flat Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 | 250400036 | Cotter Pin |
| 230a | 715900391 | CV Joint |
| 230c | 715900241 | Oetiker Clamp, 82.1 mm |
| 230d | 715900242 | Oetiker Clamp, 27.3 mm |
| 230e | 705501865 | Plunging Joint |
| 230f | 705501781 | Circlip |
| 230g | 705501841 | HEAT DISSIPATOR - Call your local BRP dealership |
| 240 | 705501730 | LH Rear Knuckle |
| 245 | 705501731 | RH Rear Knuckle |
| 250 | 230602546 | Hex. Flange Screw M10 X 125 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350040. |
| 280 | 230629087 | HEX. FLANGED SCREW M12 X 190 - Call your local BRP dealership |
| 285 | 233221416 | Elastic Flange Nut M12 |
| 310 | 293370019 | Circlip |
