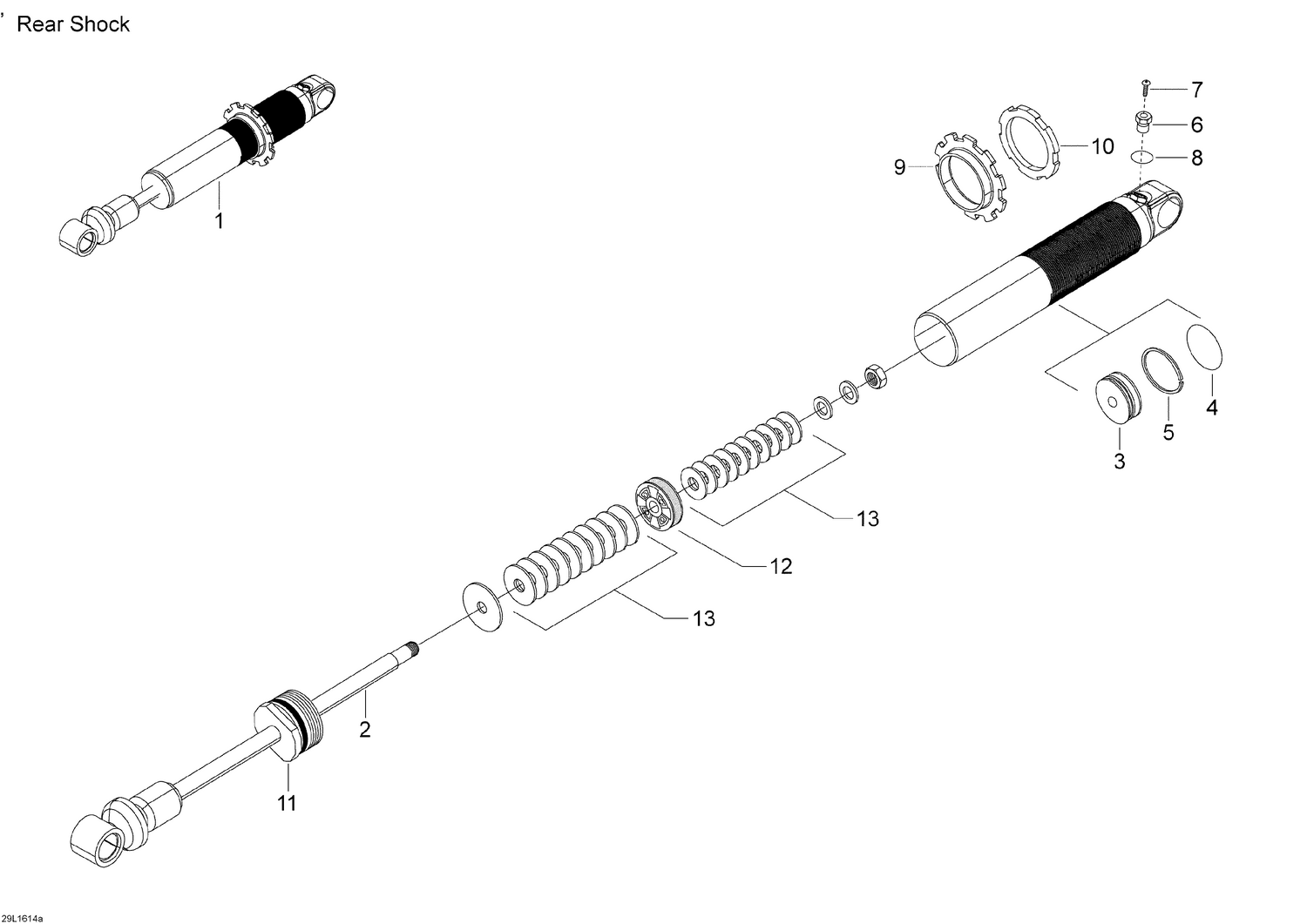

08- Rear Shocks - 800 E-TEC

08- Rear Shocks - 800 E-TEC

Parts (72)

RefPart NumberDescription
2 Not Available As Spare Part - Rod Ass´y
3 503189008 FLOTTING PISTON - Call your local BRP dealership
4 503189007 O-RING - Call your local BRP dealership
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 706000062 SHOCK SPRING STOPPER - Call your local BRP dealership
10 706000082 STOPPER RING - Call your local BRP dealership
11 230060 Seal Carrier Ass´y
12 230039 Piston 46 mm, 2.0 mm
12 230043 Piston 46 mm, 0 mm
12 619300159 Piston 46 mm, 1.2 mm
12 619300160 Piston 46 mm, 1.7 mm
12 Not Available As Spare Part - Piston 46 mm, 2.2 mm
13 230029 Shim 40/46 mm, 20 x 0,114
13 230030 Shim 40/46 mm, 20 x 0,152
13 230031 Shim 40/46 mm, 20 x 0,203
13 230032 Shim 40/46 mm, 20 x 0,254
13 230033 Shim 40/46 mm, 34 x 0,114
13 230034 Shim 40/46 mm, 34 x 0,152
13 230035 Shim 40/46 mm, 34 x 0,203
13 230036 Shim 40/46 mm, 34 x 0,254
13 230037 Shim 40/46 mm, 36 x 0,114
13 230040 Shim 40/46 mm, 38 x 0,152
13 230041 Shim 40/46 mm, 38 x 0,203
13 230042 Shim 40/46 mm, 38 x 0,254
13 230082 Shim 40/46 mm, 32 x 0,114
13 619300022 Shim 40/46 mm, 32 x 0,305
13 619300056 Shim 40/46 mm, 30 x 0,305
13 619300059 Shim 40/46 mm, 32 x 0,254
13 619300060 Shim 40/46 mm, 17 x 0,114
13 619300067 Shim 40/46 mm, 18 x 0,152
13 619300068 Shim 40/46 mm, 18 x 0,114
13 619300069 Shim 40/46 mm, 17 x 0,203
13 619300070 Shim 40/46 mm, 34 x 0,305
13 619300095 Shim 40/46 mm, 24 x 0,254
13 619300097 Shim 40/46 mm, 20 x 0,305
13 619300098 Shim 40/46 mm, 22 x 0,203
13 619300099 Shim 40/46 mm, 26 x 0,254
13 619300100 Shim 40/46 mm, 26 x 0,305
13 619300101 Shim 40/46 mm, 28 x 0,114
13 619300102 Shim 40/46 mm, 28 x 0,203
13 619300103 Shim 40/46 mm, 28 x 0,254
13 619300104 Shim 40/46 mm, 30 x 0,152
13 619300105 Shim 40/46 mm, 36 x 0,305
13 619300106 Shim 40/46 mm, 38 x 0,305
13 619300112 Shim 40/46 mm, 40 x 0,203
13 619300113 Shim 40/46 mm, 30 x 0,254
13 619300134 Shim 40/46 mm, 22 x 0,254
13 619300137 Shim 40/46 mm, 32 x 0,152
13 619300138 Shim 40/46 mm, 32 x 0,203
13 619300140 Shim 40/46 mm, 22 x 0,152
13 619300141 Shim 40/46 mm, 26 x 0,152
13 619300142 Shim 40/46 mm, 36 x 0,203
13 619300143 Shim 40/46 mm, 22 x 0,114
13 619300144 Shim 40/46 mm, 22 x 0,305
13 619300145 Shim 40/46 mm, 24 x 0,114
13 619300146 Shim 40/46 mm, 24 x 0,152
13 619300147 Shim 40/46 mm, 24 x 0,203
13 619300148 Shim 40/46 mm, 24 x 0,305
13 619300149 Shim 40/46 mm, 26 x 0,114
13 619300150 Shim 40/46 mm, 26 x 0,203
13 619300151 Shim 40/46 mm, 28 x 0,152
13 619300152 Shim 40/46 mm, 28 x 0,305
13 619300153 Shim 40/46 mm, 30 x 0,114
13 619300154 Shim 40/46 mm, 30 x 0,203
13 619300155 Shim 40/46 mm, 36 x 0,152
13 619300156 Shim 40/46 mm, 36 x 0,254
13 619300157 Shim 40/46 mm, 40 x 0,152
13 619300158 Shim 40/46 mm, 40 x 0,254
13 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
