Home / BRP / JOHNSON / 1978 / 115 / 115ETZ78C 1978 / GEARCASE

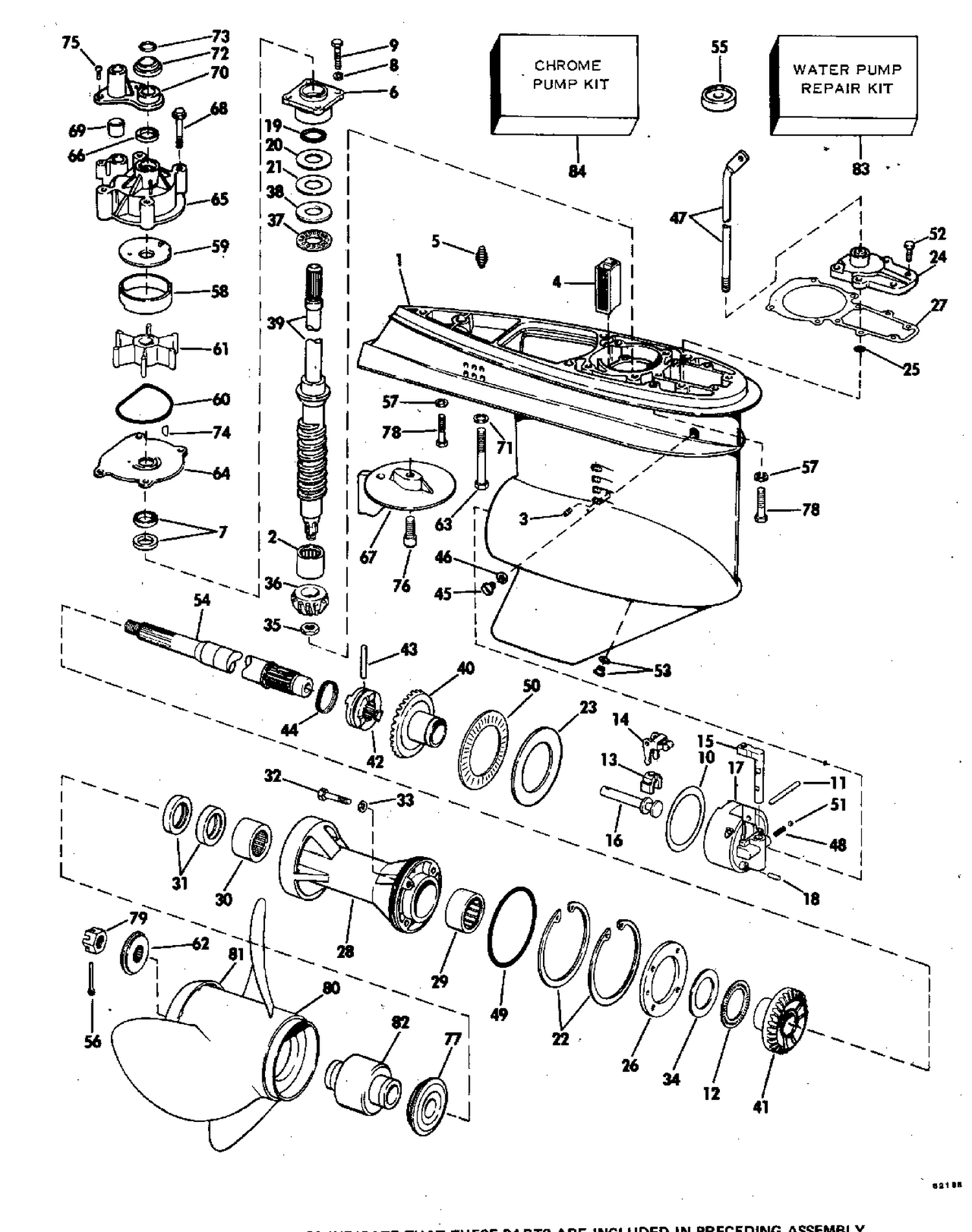

GEARCASE

GEARCASE

Parts (50)

RefPart NumberDescription
1 0982111 GEARCASE & BEARING ASSY This part replaces 0389072.
10 0323363 SHIM, .002 inch
10 0323364 SHIM, .003 inch
10 0323365 SHIM, .004 inch
17 0388616 BEARING HOUSING & PIN ASSY
20 0314742 SHIM BEARING HOUSING
23 0317165 THRUST WASHER, Fwd
27 0909118 GASKET, Solenoid cover
28 0397087 BEARING HOUSING SEAL ASSY. This part replaces 0384523.
32 0316563 SCREW
33 0317178 O RING
36 0317169 PINION
39 0387935 DRIVESHAFT ASSY
39 5000777 Kit Ay This part replaces 0387934.
40 0985050 GEAR & PINION ASSY This part replaces 0388630.
47 0323269 SHIFT ROD
47 0323270 SHIFT ROD
52 0335020 SCREW, Bracket to block This part replaces 0318139.
54 0436888 PROPELLER SHAFT ASSY. This part replaces 0387818.
57 0307708 RONDELLE GROWER
58 0322894 LINER, Impeller
59 0321176 PALTE,Liner,impeller
60 0321120 SEAL
61 0385528 IMPELLER ASSEMBLY
63 0313697 SCR,Grc to hsg.long
64 0435027 CUP & PLATE This part replaces 0321188.
65 0387385 IMPELLER HOUSING ASSY
67 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0316981.
68 0323626 SCREW
71 0306314 L'WASHER,Scr,long
76 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
78 0320741 SCREW, Gearcase to exhaust hsg
80 0382761 PROPELLER ,14 x 11
80 0382765 PROPELLER 13 X 19
80 0382766 PROP. 12-3/4 X 21 (STD)
80 0384136 PROPELLER 12-3/4 X 23
80 0384139 PROP., 13 - 3/8 x 17 - SST
80 0384142 PROP., 13 x 19 - SST
80 0384144 PROP., 13-3/4 x 15 - sst
80 0384703 PROP, 12-3/4 x 23 sst cupped This part replaces 0384138.
80 0388884 PROP., 13- 1/2 x 23 - sst-ss
80 0389512 PRO, 12-3/4 x 21 sst cupped This part replaces 0384141.
80 0389514 PROPELLER 12-3/4 x 23 - SST
80 0765181 PROPELLER This part replaces 0382762.
80 0765182 PROPELLER - W Models This part replaces 0382763.
80 0765183 PROPELLER, WDEL Models This part replaces 0382764.
83 0389158 WATER PUMP REPAIR KIT
90 0389512 PRO, 12-3/4 x 21 sst cupped This part replaces 0384702.
0389076 0398182 GEARCASE ASSY., Complete This part replaces 0389076.
0389077 0398183 GEARCASE ASSY., Complete This part replaces 0389077.
