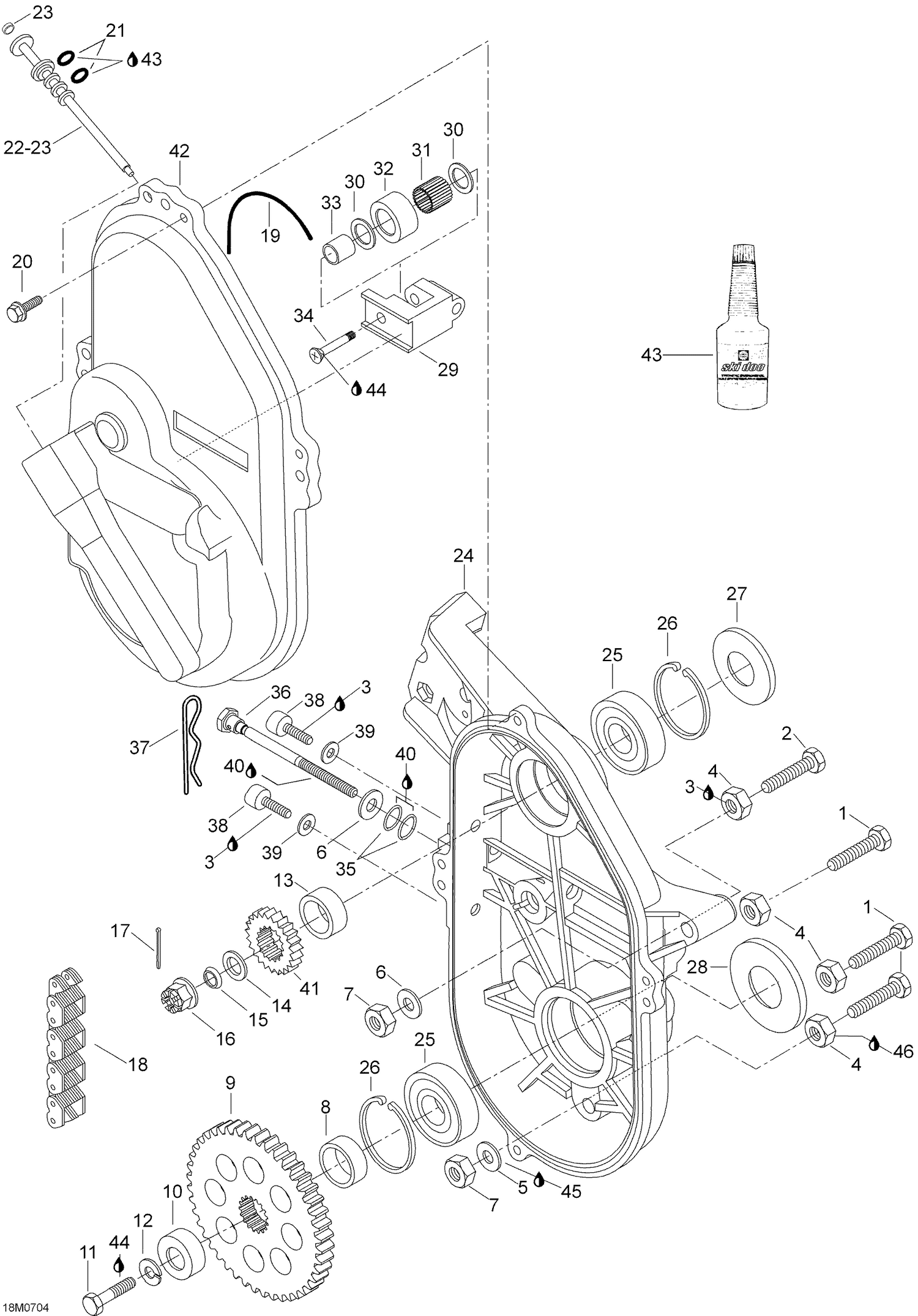

| Ref | Part Number | Description |
|---|
| 1 |
M40201 |
Screw |
| 2 |
M40043 |
Screw |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
504083800 |
Spacer |
| 5 |
M20073 |
WASHER-FLAT - Call your local BRP dealership |
| 6 |
234001410 |
Flat Washer 10 mm |
| 7 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 8 |
605452059 |
SPACER - Call your local BRP dealership |
| 9 |
504070900 |
Sprocket 44Th |
| 10 |
501026200 |
CAP - Call your local BRP dealership |
| 11 |
207102544 |
Hex. Screw M10 X 25 |
| 12 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 13 |
504093400 |
Shim |
| 14 |
504152049 |
SPACER - Call your local BRP dealership |
| 15 |
417000900 |
Spring Washer |
| 16 |
232210414 |
HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 17 |
371801300 |
Cotter Pin |
| 18 |
504151882 |
DRIVING CHAIN 70 M - Call your local BRP dealership |
| 19 |
414362300 |
O-Ring |
| 20 |
M40340 |
Hex. Forming Screw |
| 21 |
M28402 |
O RING - Call your local BRP dealership |
| 23 |
206540490 |
SCREW-SET SOCKET DIN.916 - Call your local BRP dealership |
| 24 |
504144600 |
Machined Chaincase |
| 25 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 26 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 27 |
414882800 |
OIL SEAL - Call your local BRP dealership |
| 28 |
504152076 |
Seal Oil Ass'y |
| 29 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 30 |
504080300 |
WASHER - Call your local BRP dealership |
| 31 |
M31050 |
Needle Bearing |
| 32 |
414531300 |
ROLLER - Call your local BRP dealership |
| 33 |
504080200 |
SPACER - Call your local BRP dealership |
| 34 |
732601144 |
SCREW - Call your local BRP dealership |
| 35 |
414484400 |
O-Ring |
| 36 |
732601311 |
ADJUSTING SCREW - Call your local BRP dealership |
| 37 |
414575600 |
Hair Pin |
| 38 |
M40859 |
Socket Head Screw |
| 39 |
M20022 |
Washer |
| 40 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 41 |
504071800 |
Sprocket 17 Th |
| 42 |
080037100 |
CASTING COVER - Call your local BRP dealership |
| 43 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 44 |
293800005 |
Loctite 271, 10 ml |
| 45 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
