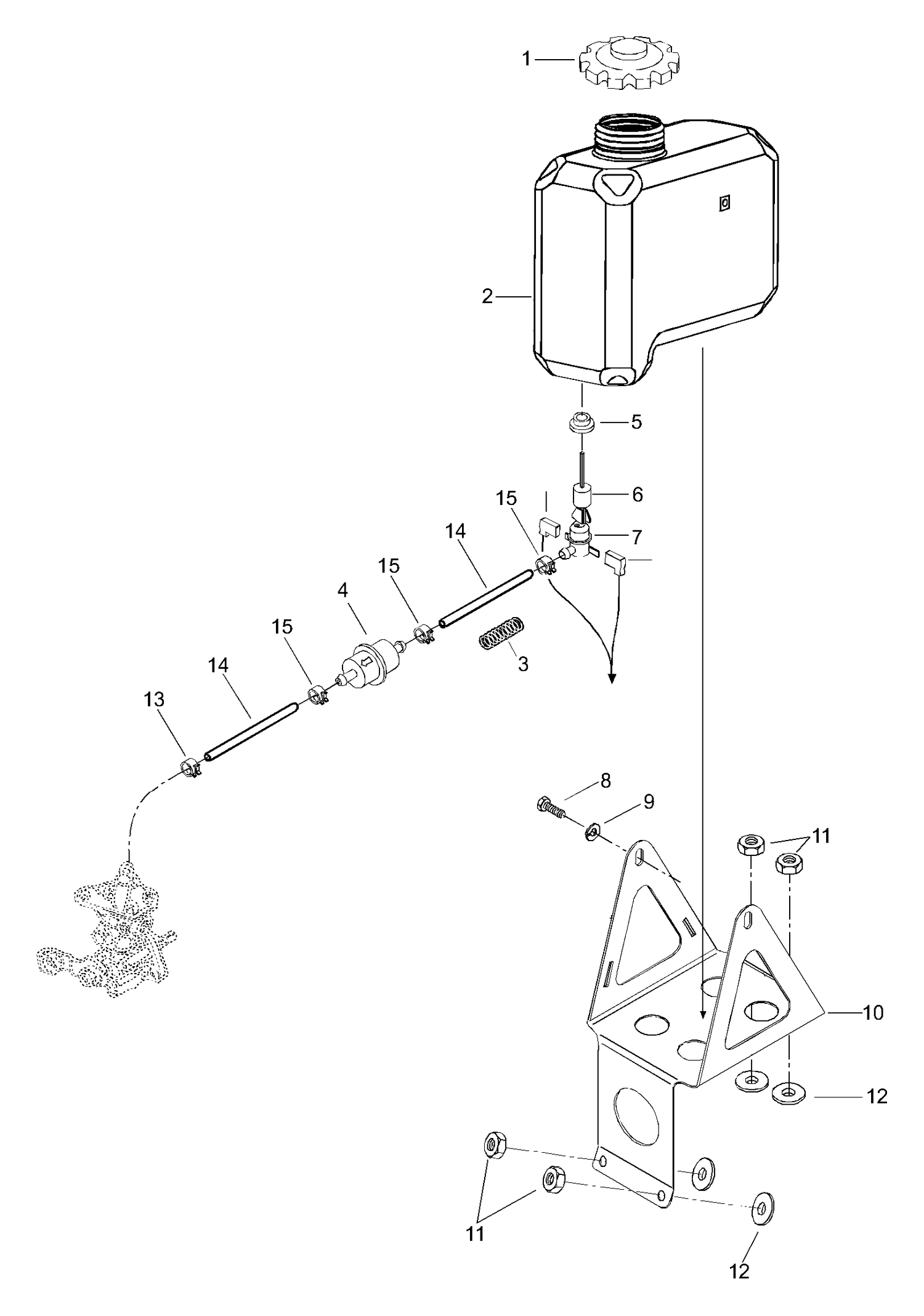

01- Oil Tank
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 2 | 572106700 | Oil tank |
| 3 | 414940300 | SPRING_COMPRESSION - Call your local BRP dealership |
| 4 | 414536500 | Oil filter |
| 5 | 570023000 | Grommet |
| 6 | 414681900 | Float |
| 7 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 8 | 40114 | Screw M6x10 |
| 9 | 20112 | Washer |
| 10 | 517284700 | Oil tank support |
| 11 | 33010 | Lock Nut M6 (1=10Pcs) |
| 12 | 414454400 | Rubber washer |
| 13 | 414420700 | Universal Spring Clamp |
| 14 | 39046 | Hose 11/8 |
