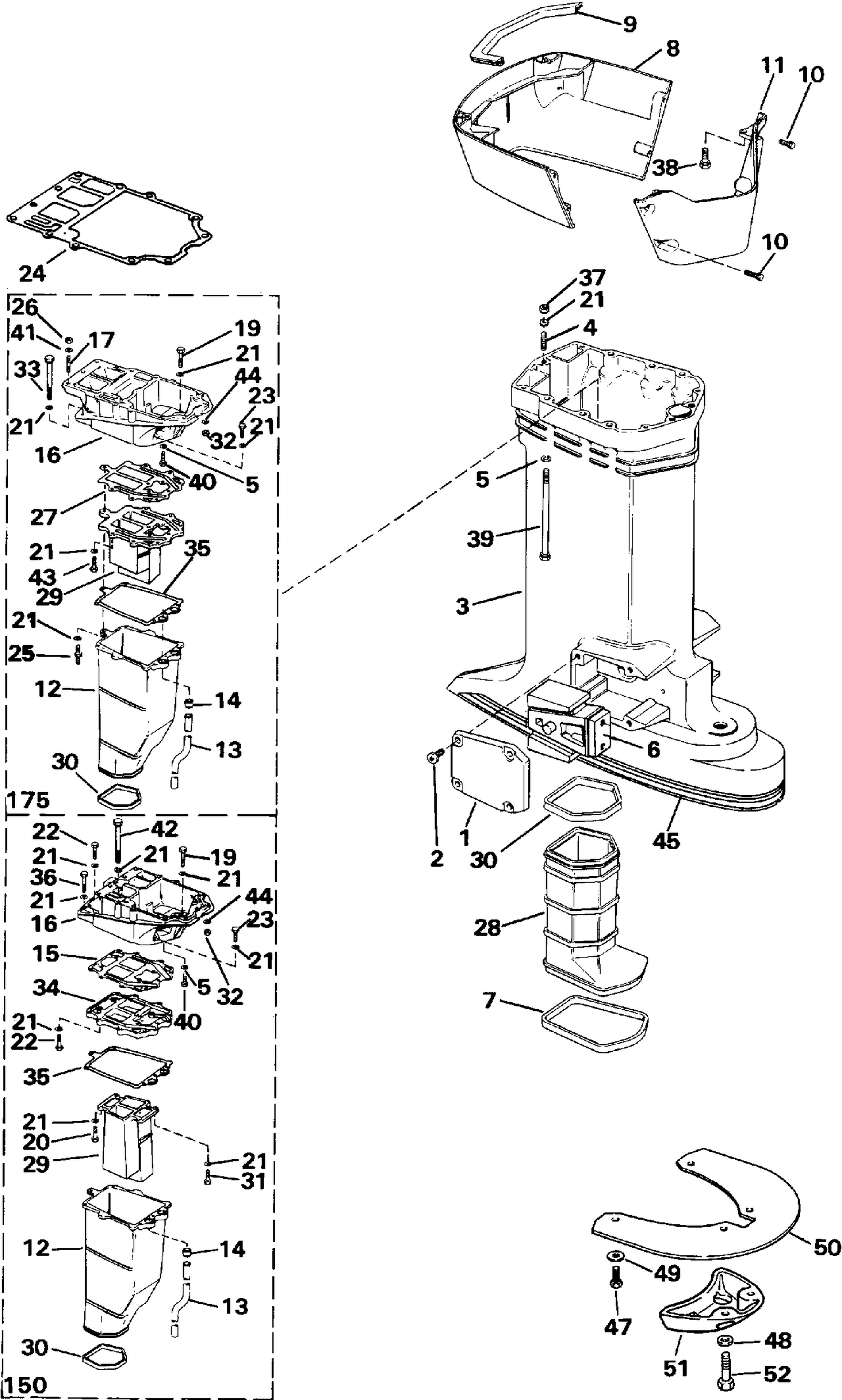

EXHAUST HOUSING — Parts Catalog

Parts (50)

Ref	Part Number	Description
1	0338942	COVER, Mount bracket lower This part replaces 0320864.
2	0322000	SCREW, Starter to crankcase
3	0332744	EXHAUST HOUSING
3	0337549	EXHAUST HOUSING This part replaces 0336674.
3	0435318	EXHAUST HOUSING, Outer This part replaces 0332745.
4	0314956	STUD
6	0434629	MOUNT, Lower
6	0434632	MONTURE CAOUTCHOUC, inférieur
7	0320961	JOINT, boîtier d'engrenages vers carter intérieur
8	0390131	COVER, Exhaust housing, rear
8	0983524	COVER, Exhaust housing, rear
9	0318258	SEAL Cover
9	0334824	SEAL, Cover
11	0323800	COVER, Exhause housing, front, plastic
12	0327800	EXH. HSG., Inner, upper
13	0346897	TUBE WATER, Inlet This part replaces 0321016.
13	0346898	TUBE WATER, Inlet This part replaces 0321015.
14	0305145	GROMMET
15	0324516	GASKET, Adapter to plate, 150
16	0331033	ADAPTER, Exh. hsg
16	0434157	ADAPTER, Exhaust, hsg., 175
17	0301185	STUD
19	0303459	ECREW,Exhaust cover,1-1/2"long
20	0306778	ECREW,Exhaust cover,1-3/8"long
22	0306418	VIS, ancrage
23	0306409	VIS, collecteur vers carter-moteur
24	0323214	GASKET, Adap. to pwrhd, 175
24	0335503	GASKET, Adap. to pwrhd., 150
25	0306778	ECREW,Exhaust cover,1-3/8"long
27	0323292	GASKET, Adapter to megaphone
28	0327796	EXHASUT HSG,Inner lower
28	0327797	EXHAUST HOUSING, Inner lower
29	0323220	MEGAPHONE, 175
29	0327802	TUNING MEGAPHONE
30	0320936	JOINT, boîtier échappement, inférieur
31	0319883	SCREW, Exhaust cover
33	0303398	VIS, support This part replaces 0302030.
34	0322313	PLATE ASSY.
35	0323222	GASKET, Inner exh. hsg to meg
36	0600014	SCREW
37	0328742	NUT
39	0328698	SCREW, Adapter to crankcase
42	0315071	SCREW
43	0306418	VIS, ancrage
45	0211388	DECAL
45	0336386	DECAL Exh. hsg. Jo.
47	0910741	SCREW, Cover plate
50	0345776	DÉFLECTEUR DE PROJECTIONS This part replaces 0334979.
51	0345776	DÉFLECTEUR DE PROJECTIONS This part replaces 0913262.
52	0910736	SCREW, Deflector
