Home / BRP / STERN DRIVE / 1997 / 5.70 / 572BPLKD 1997 / LOWER GEARCASE - SINGLE PROP

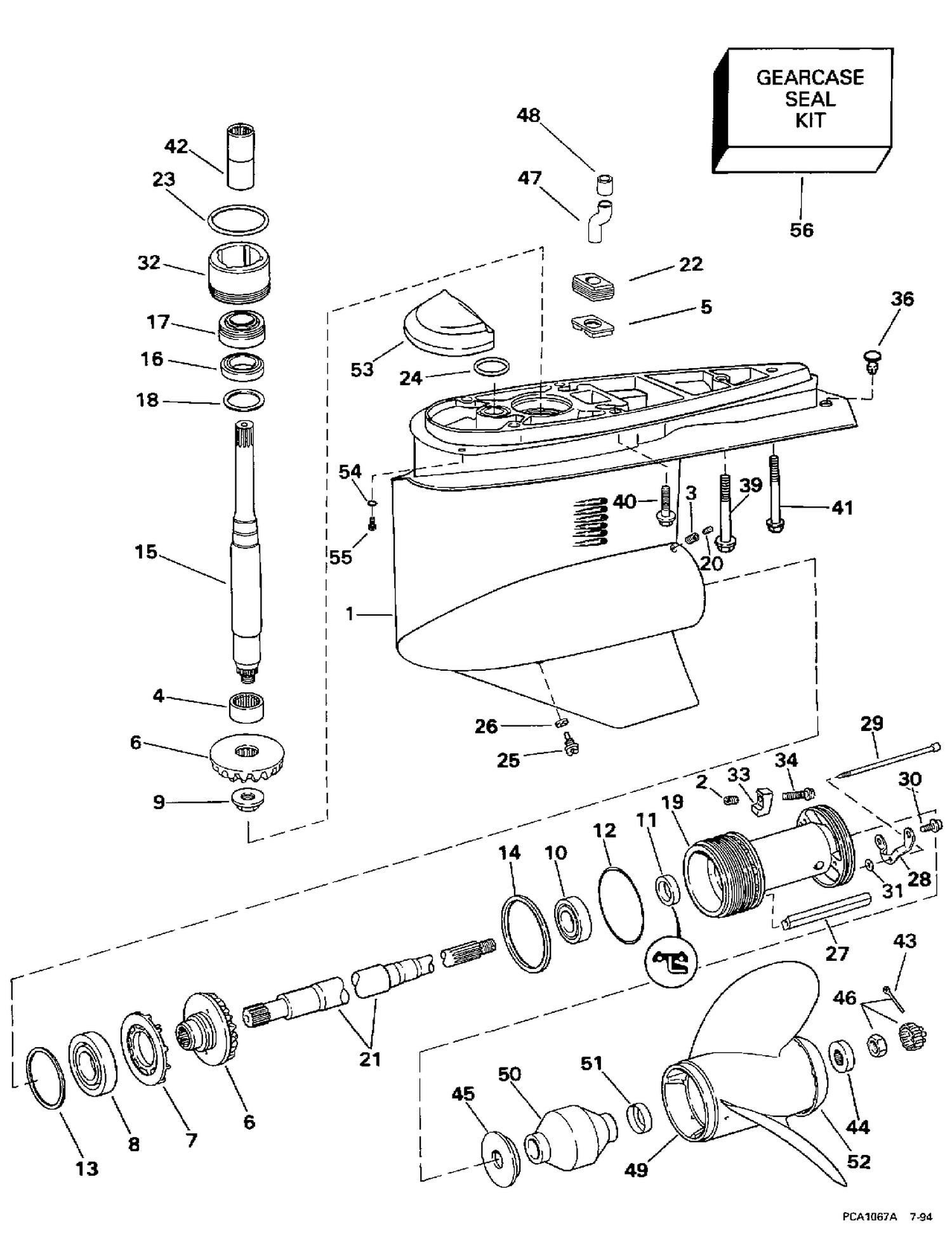

LOWER GEARCASE - SINGLE PROP

LOWER GEARCASE - SINGLE PROP

Parts (104)

RefPart NumberDescription
1 3855363 GEARCASE & BEARING
2 0910935 INSERT, 3/8-16 This part replaces 3852515.
3 3852567 INSERT
4 3853934 BEARING, Pinion
5 3854601 RETAINER, Seal
6 3850937 GEAR SET, 1.51, 18:26
6 3850938 GEAR SET, 1.60, 17:26
6 3855274 GEAR SET, 1.43, 19:26
7 3853941 OIL SLINGER & PINS
8 3850942 BEARING, Gear to gearcase
9 3851003 NUT, Pinion to driveshaft
10 3854249 BEARING, Driveshaft, lower
11 3863090 Seal This part replaces 3853474.
12 3852865 O-RING, Propeller shaft hsg.
13 0913870 SHIM, Gear position, 0.004" This part replaces 3852885.
13 0913871 SHIM, Gear position, 0.003" This part replaces 3852886.
13 0913872 SHIM, Gear position, 0.005" This part replaces 3852887.
13 0913873 SHIM, Gear position, 0.010" This part replaces 3852888.
13 3850695 SHIM, Gear position, 0.002 in.
14 3852868 RING, Shim, 0.100 in.
14 3852869 RING, Shim, 0.102 in.
14 3852870 RING, Shim, 0.104 in.
14 3852871 RING, Shim, 0.106 in.
14 3852872 RING, Shim, 0.108 in.
14 3852873 RING, Shim, 0.110 in.
14 3852874 RING, Shim, 0.112 in.
14 3852875 RING, Shim, 0.114 in.
14 3852876 RING, Shim, 0.116 in.
14 3852877 RING, Shim, 0.118 in.
14 3852878 RING, Shim, 0.120 in.
14 3852879 RING, Shim, 0.122 in.
14 3852880 RING, Shim, 0.124 in.
14 3852881 RING, Shim, 0.096 in.
14 3852882 RING, Shim, 0.098 in.
15 3851342 DRIVESHAFT, Lower
16 3854249 BEARING, Driveshaft, lower
17 3854250 BEARING, Driveshaft, upper
18 3852889 SHIM, Pinion position, 0.003 in.
18 3852890 SHIM, Pinion position, 0.004 in.
18 3852891 SHIM, Pinion position, 0.005 in.
18 3852892 SHIM, Pinion position, 0.010 in.
19 3858051 Housing This part replaces 3853492.
20 3853272 SET SCREW, Prop shaft housing
21 3857675 Shaft Ay This part replaces 3852271.
22 3854595 SEAL, Water supply tube
23 3852866 O-RING, Support housing
24 3852959 O-RING, Oil passage
25 3854539 SCREW, Gearcase plug
27 3852970 ANODE, Prop shaft housing
28 0914041 RETAINER, Anode This part replaces 3852971.
29 0914042 SCREW, Anode This part replaces 3852972.
30 0914673 SCREW, Anode retainer This part replaces 3853309.
31 3852973 WASHER, Anode
32 3855636 RETAINER, Bearing
33 3853371 RETAINER, Prop shaft housing
34 3852478 SCREW, Prop shaft retainer
36 3850662 PLUG, Trim tab hole
39 3854806 SCREW, Lower to upper housing
40 3854807 SCREW, Lower to upper housing
41 3854805 SCREW, Lower to upper housing
42 3852268 DRIVESHAFT, Intermediate
44 3852350 SPACER, Propeller nut
47 3860252 Tube This part replaces 3854795.
48 3852315 SEAL, Water supply tube
49 3850298 PROPELLER, 15 1/2 x 13
49 3850299 PROPELLER, 15 1/2 x 15
49 3850300 PROPELLER, 15 x 17
49 3850301 PROPELLER, 14 1/2 x 19
49 3850302 PROPELLER, 14 1/4 x 21
49 3850303 PROPELLER, 14 1/4 x 23
49 3850304 PROPELLER, 15 1/2 x 14
49 3850305 PROPELLER, 15 x 15
49 3850306 PROPELLER, 15 x 16
49 3850307 PROPELLER, 15 x 17
49 3850308 PROPELLER, 14 1/2 x 19
49 3850309 PROPELLER, 14 1/4 x 21
49 3850310 PROPELLER, 14 1/4 x 23
49 3850311 PROPELLER, 15 x 17
49 3850312 PROPELLER, 14 1/2 x 19
49 3850313 PROPELLER, 14 1/4 x 21
49 3850314 PROPELLER, 14 1/4 x 23
49 3850315 PROPELLER, 15 x 15
49 3850316 PROPELLER, 15 x 17
49 3850317 PROPELLER, 14 1/2 x 19
49 3850318 PROPELLER, 14 1/4 x 21
49 3850319 PROPELLER, 14 1/4 x 23
49 3850320 PROPELLER, 15 x 17
49 3850321 PROPELLER, 14 1/2 x 19
49 3850322 PROPELLER, 14 1/4 x 21
49 3850323 PROPELLER, 14 1/4 x 23
49 3855142 PROPELLER, 14 1/2 x 20
49 3855144 PROPELLER, 14 1/2 x 22
49 3855146 PROPELLER, 14 1/2 x 24
49 3855148 Raker
49 3855152 PICK-UP SCREEN
49 3855154 PROPELLER, 14 1/2 x 22
49 3855156 PROPELLER, 14 1/2 x 24
49 3855158 PROPELLER, 14 1/2 x 26
50 3850324 BUSHING ASSY., Propeller
50 3850325 BUSHING ASSY., Propeller
53 3855411 ANODE, Gearcase
3855692 3855692 GEARCASE ASSY., 1.43, 19:26
3855693 3855693 GEARCASE ASSY., 1.51, 18:26
3855694 3855694 GEARCASE ASSY., 1.60, 17:26
