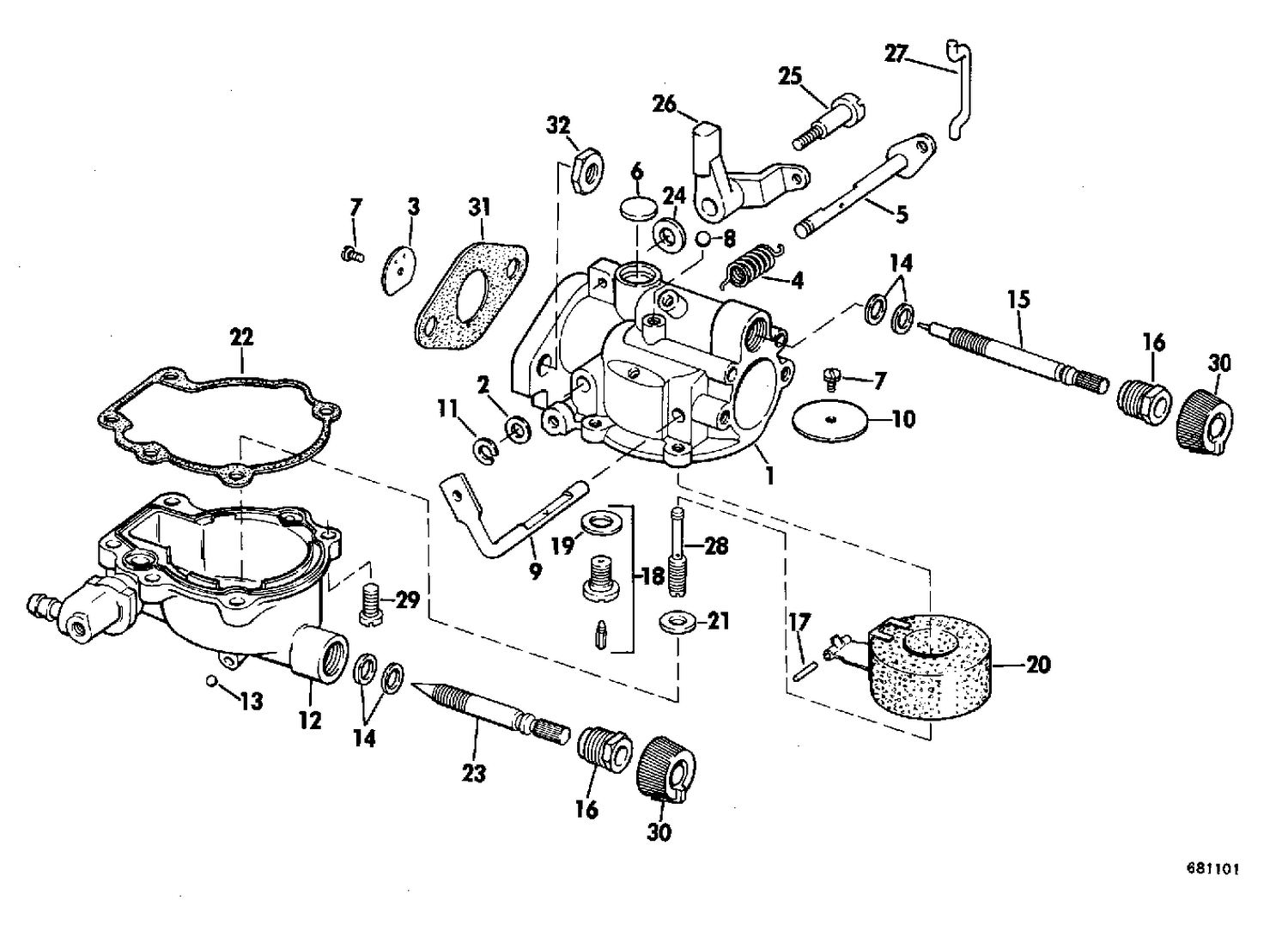

| Ref | Part Number | Description |
|---|
| 1 |
0383000 |
BODY ASSY |
| 4 |
0302853 |
SPRING,Throttle return |
| 11 |
0203949 |
E RING LINK This part replaces 0202755. |
| 12 |
0382999 |
FLOAT CAHMBER ASSY. |
| 15 |
0313262 |
VALVE, Needle low speed |
| 17 |
0300096 |
HINGE PIN |
| 21 |
0302984 |
GASKET |
| 23 |
0312824 |
NEEDLE VALVE HIGH SPEED |
| 26 |
0312832 |
CAM FOLLOWER |
| 27 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 28 |
0314264 |
NOZZLE, High speed |
| 29 |
0307045 |
NOZZLE, High speed |
| 30 |
0319168 |
KNOB, Hi & lo speed This part replaces 0314263. |
| 31 |
0303003 |
GASKET |
| 0382281 |
0382281 |
CARBURETOR ASSEMBLY, Complete |
