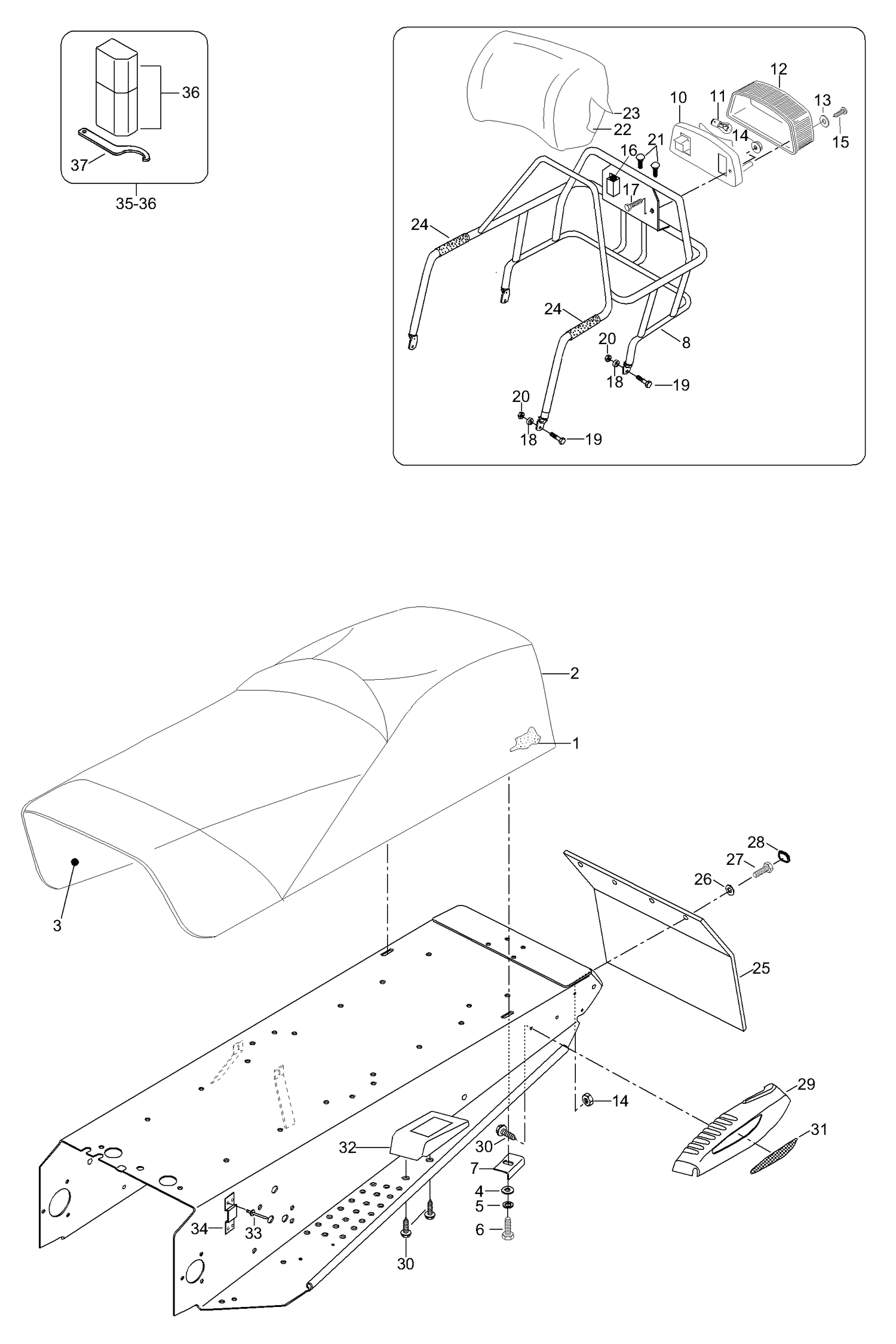

09- Body
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146604 | Seat foam |
| 2 | 605148618 | Seat cover |
| 3 | 5146603 | Seat base |
| 4 | 40015 | SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 5 | 20014 | Lock washer |
| 6 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 7 | 5447994 | Support plate |
| 8 | 33016 | Nut elastic M12 |
| 9 | 605350497 | L.H. Support plate |
| 9 | 605350498 | R.H. Support plate |
| 10 | 40839 | ALLEN SCREW M8 X 20 - Call your local BRP dealership |
| 11 | 293800060 | Loctite 243, 10 ml |
| 12 | 510003628 | Hose |
| 13 | 510003543 | Pivot |
| 14 | 605250406 | Backrest |
| 15 | 605349172 | Foam |
| 16 | 605350799 | Cover |
| 17 | 510003542 | R.H. arm |
| 17 | 510003607 | L.H. arm |
| 18 | 510003533 | Male handle M8 x 35 |
| 19 | 20027 | Washer |
| 20 | 510003534 | Male handle M12 x 45 |
| 21 | 605150337 | Rack assy |
| 23 | 515175397 | LAMP HOUSING - Call your local BRP dealership |
| 24 | 520000758 | Bulb This part replaces 410504000. |
| 25 | 414513700 | Lens |
| 26 | 414516400 | Washer - Call your local BRP dealership |
| 27 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 28 | 209632540 | Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 29 | 515175852 | Adaptor |
| 30 | 42271 | Male connector housing |
| 31 | 605642629 | Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 32 | 40149 | Locking screw M6 x 30 |
| 33 | 605349166 | Housing |
| 34 | 40847 | SCREW 4 - Call your local BRP dealership |
| 35 | 605349534 | Heater |
| 36 | 605451380 | R.H. Grip |
| 36 | 605451381 | L.H. Grip |
| 37 | 27025 | Clip |
| 38 | 36036 | Rivet |
| 39 | 605348889 | Bracket |
| 40 | 410110700 | Switch |
| 41 | 515175281 | Cover |
| 42 | 42606 | Connector housing |
| 43 | 605642629 | Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 44 | 40397 | Screw M8 x 25 |
| 45 | 605450499 | Sleeve |
| 46 | 40316 | Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 48 | 33006 | Nut M8 |
