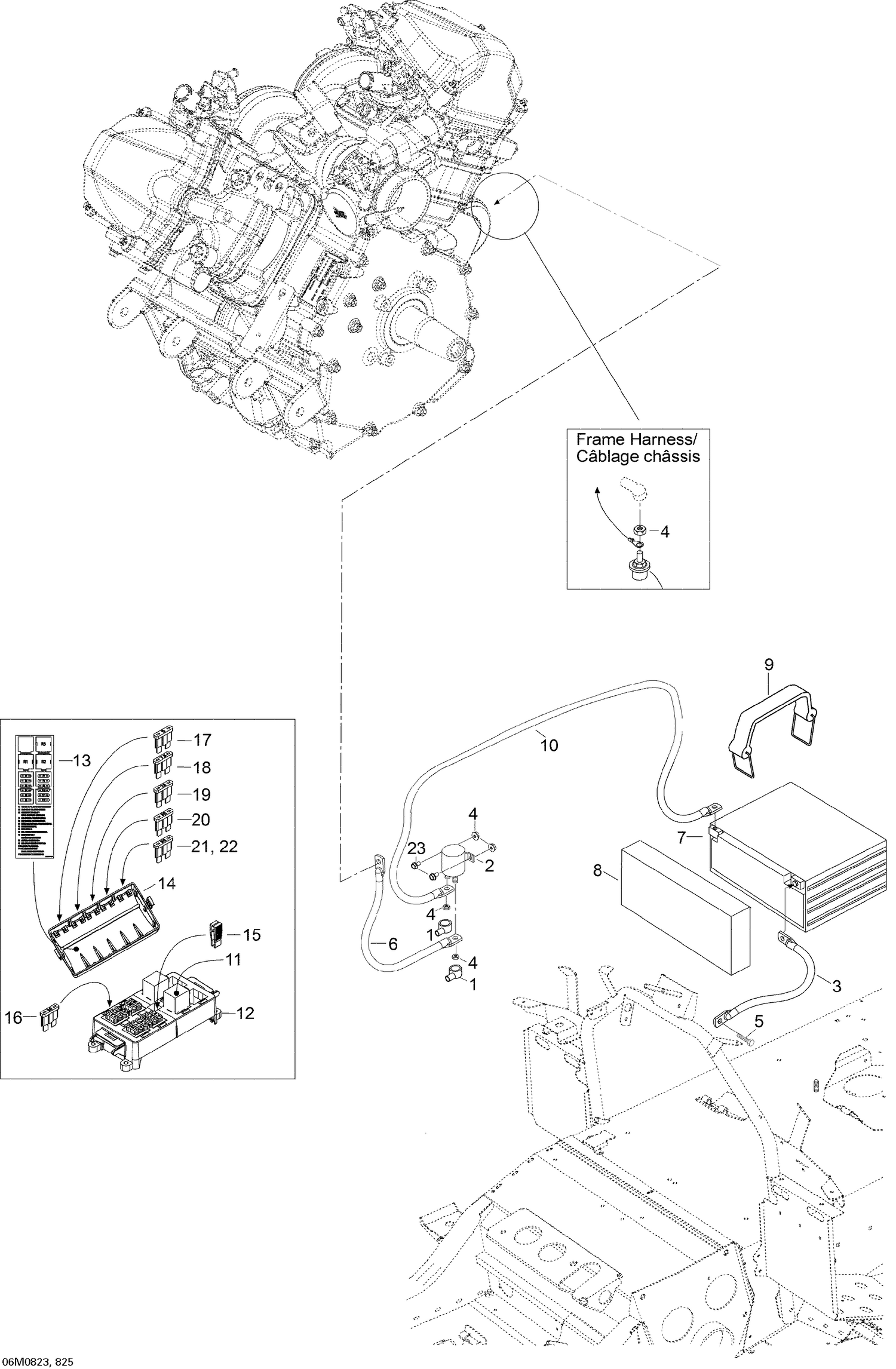

| Ref | Part Number | Description |
|---|
| 1 |
570151000 |
Protection Cap |
| 2 |
515176011 |
Starter Relay |
| 3 |
605455189 |
GROUND WIRE - Call your local BRP dealership |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
M40052 |
Socket Head Screw M6 X 20 |
| 6 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 7 |
410922962 |
Battery YUASA YTX24-HL |
| 8 |
605352572 |
COVER - Call your local BRP dealership |
| 9 |
605352573 |
STEEL STRIP - Call your local BRP dealership |
| 10 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 11 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 12 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 13 |
605454618 |
FUSE DECAL - Call your local BRP dealership |
| 14 |
515176066 |
COVER - Call your local BRP dealership |
| 15 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 16 |
278000344 |
Fuse, 5 Amperes |
| 16 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 16 |
409003900 |
Fuse, 20 Amperes |
| 16 |
410917200 |
Fuse, 30 Amperes |
| 16 |
M42044 |
Fuse 1 A |
| 17 |
710000745 |
Little Fuse, 15 Ampere |
| 18 |
278000344 |
Fuse, 5 Amperes |
| 19 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 20 |
409003900 |
Fuse, 20 Amperes |
| 21 |
410917200 |
Fuse, 30 Amperes |
| 22 |
710000745 |
Little Fuse, 15 Ampere |
