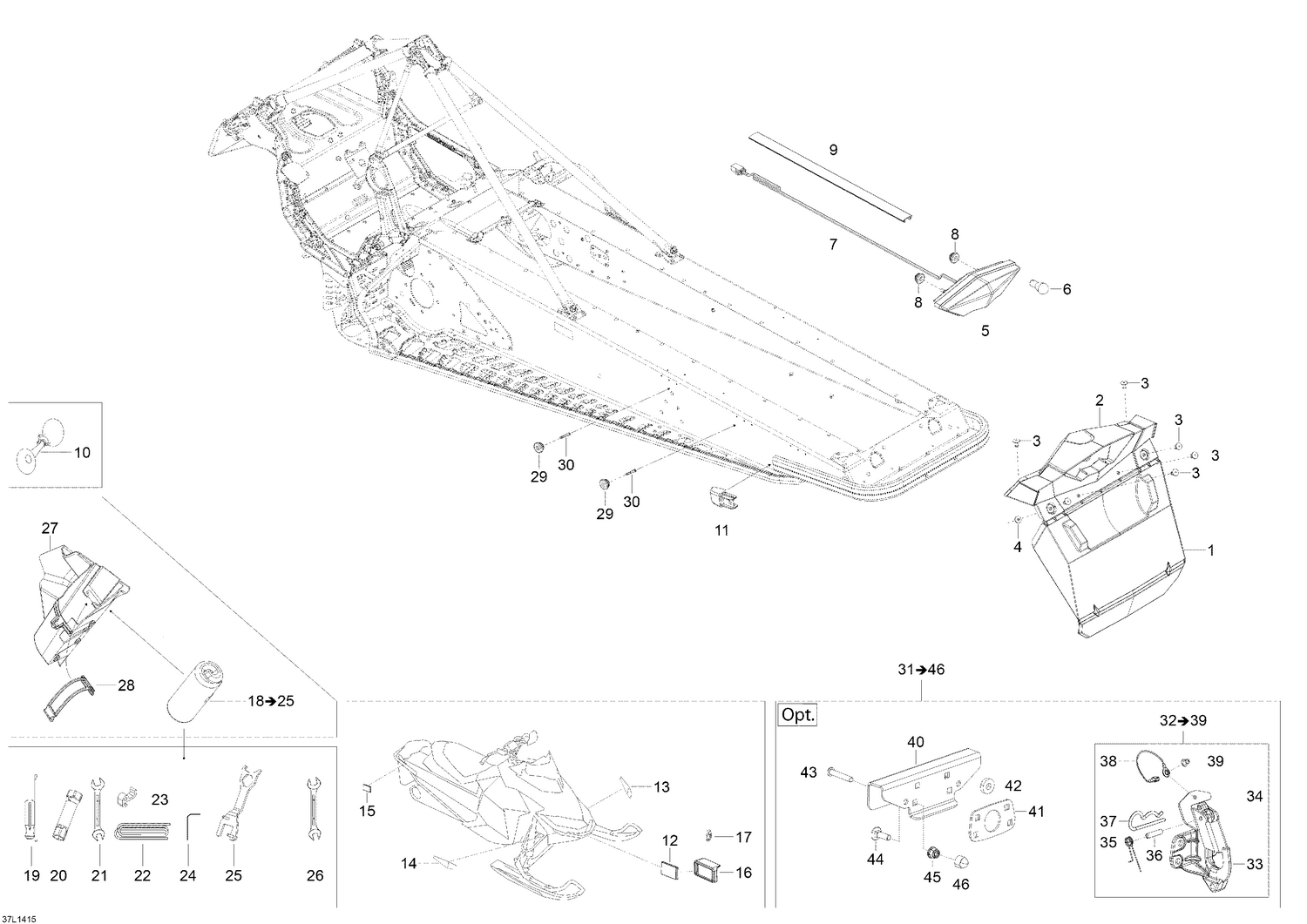

09- Utilities
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001069 | Snow Guard |
| 2 | 511000583 | Light Cover |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 520000679 | Rear Light |
| 6 | 520000758 | Bulb |
| 7 | 520000680 | WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 8 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 9 | 520000829 | Trim |
| 10 | 549011291 | Horn |
| 11 | 520000711 | Cap RH |
| 11 | 520000712 | Cap LH |
| 12 | 21118 | Reflector, Bright |
| 13 | 520000719 | Reflector Front LH |
| 14 | 520000718 | Reflector Front RH |
| 15 | 21121 | REFLECTOR (YELLOW) - Call your local BRP dealership |
| 16 | 520000871 | Reflector Support |
| 17 | 27120 | TIE RAP - Call your local BRP dealership |
| 19 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 20 | 529000046 | Socket Wrench |
| 21 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 22 | 412500200 | Starter Rope |
| 23 | 529000060 | Starter Grip |
| 24 | 520001142 | Key |
| 25 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 26 | 34017 | Wrench 17/19 |
| 27 | 520000894 | Tool Kit Rack |
| 28 | 520000528 | Latch |
| 29 | 520000889 | Anchor Link |
| 30 | 250000767 | Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 33 | 520001040 | Hook |
| 34 | 520001041 | LOCKING PLATE - Call your local BRP dealership |
| 35 | 545693 | SPRING - Call your local BRP dealership |
| 36 | 41012 | Spring Pin |
| 37 | 41029 | Cotter Pin |
| 38 | 293750069 | Retainer Cable This part replaces 5446839. |
| 39 | 390909100 | Avex Rivet |
| 40 | 520001242 | Hitch Support |
| 41 | 520001243 | Hitch Fastening Plate |
| 42 | 520001288 | Sleeve |
| 43 | 205484546 | Socket Screw M8 x 45 |
| 44 | 207782544 | Carriage Bolt M8 x 25 |
| 45 | 233281414 | Hex. Flange Elastic Nut M8 |
