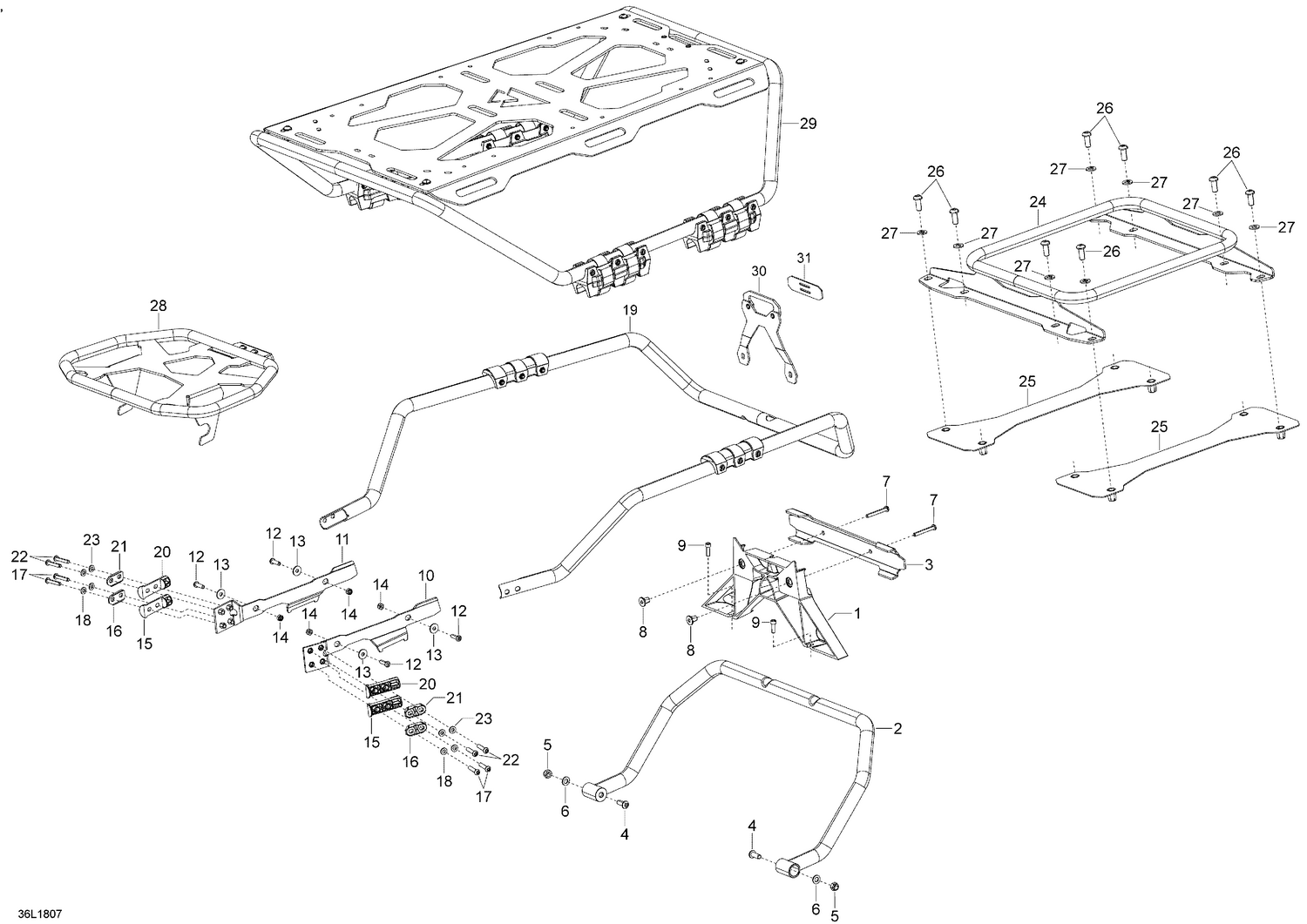

09- Luggage Rack Commander Touratech Traveller
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000559 | Rear Light Support |
| 2 | 511001088 | Rear Rack Support Bar |
| 3 | 511001089 | Clamp For Cargo Rack Tubes |
| 4 | 205482560 | Socket Screw M8 X 25 |
| 5 | 232581600 | Hex. Elastic Nut M8 |
| 6 | 234081600 | Flat Washer 8 mm, Stainless |
| 7 | 205464560 | Screw-socket Bn.hd. M6 X 45 |
| 8 | 511001090 | Machined Nut, M6 For Rear Light Sup |
| 9 | 207662056 | Screw Hex. Flange M6 x 20 |
| 10 | 511001091 | Bracket For Cargo Rack / Side Tubes |
| 11 | 511001092 | Bracket For Cargo Rack /side Tubes |
| 12 | 205462060 | SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 13 | 234062600 | Flat Washer M6, Stainless |
| 14 | 232561600 | Hex. Elastic Stop Nut M6 |
| 15 | 293710158 | Tube Insert Plastic For 25mm Diamet |
| 16 | 293710159 | Screw Support Plate For 25mm Diamet |
| 17 | 205463060 | SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 18 | 234061600 | Flat Washer M6, Stainless |
| 19 | 511001086 | Lower Rear Rack |
| 20 | 293710158 | Tube Insert Plastic For 25mm Diamet |
| 21 | 293710159 | Screw Support Plate For 25mm Diamet |
| 22 | 205463060 | SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 23 | 234061600 | Flat Washer M6, Stainless |
| 24 | 511001084 | Large Pannier Bracket |
| 25 | 511001103 | Large Pannier Support Plate |
| 26 | 205482060 | Socket Head Screw M8 X 20 |
| 27 | 234081600 | Flat Washer 8 mm, Stainless |
