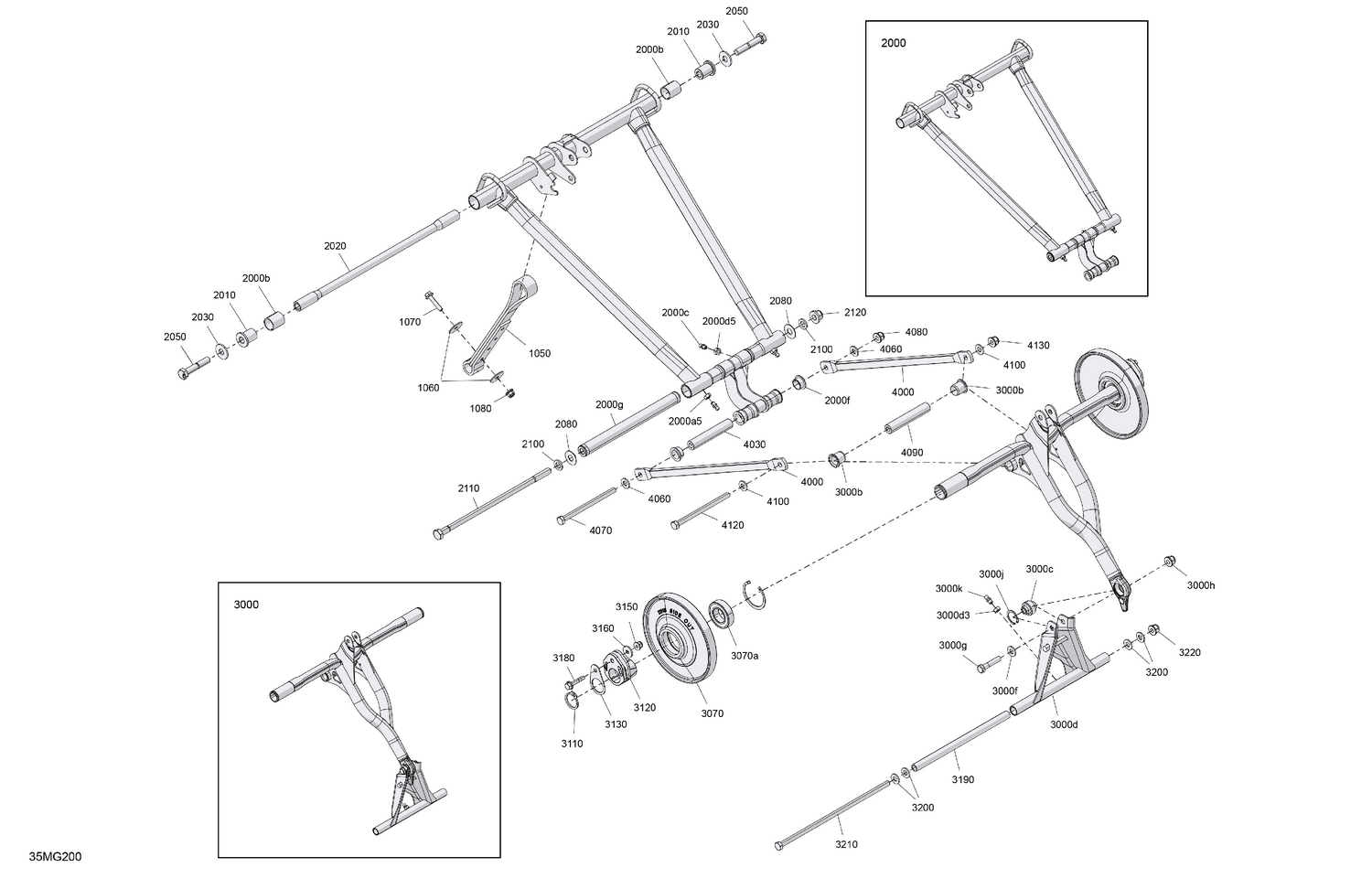

05- Suspension - Rear - Upper Section
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000a5 | 232061404 | Hexagonal Nut M6 |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000d5 | 232061404 | Hexagonal Nut M6 |
| 2000f | 503197556 | Bushing |
| 2000g | 503196972 | Lower Shaft |
| 2010 | 503194970 | Bushing |
| 2020 | 503193441 | Upper Shaft |
| 2030 | 503191926 | Washer |
| 2050 | 250001365 | Hex. Threadlock Screw M10 X 55 |
| 2080 | 250200032 | Washer |
| 2100 | 503192496 | Washer |
| 2110 | 503193227 | Bolt M10 X 251MM |
| 2120 | 233201466 | Flange Elastic Nut M10 |
| 3000b | 503197556 | Bushing |
| 3000c | 503194035 | Radial Joint |
| 3000d3 | 232061404 | Hexagonal Nut M6 |
| 3000f | 503192494 | Washer |
| 3000g | 207084056 | Hex. Screw M8 X 1.25 X 40 |
| 3000h | 233281466 | Elastic Flange Nut M8 |
| 3000j | 293370114 | Inner Circlip |
| 3000k | 408200700 | Grease Fitting |
| 3070a | 503193548 | Ball Bearing |
| 3110 | 293370186 | External Retaining Ring |
| 3120 | 503196322 | Suspension Support |
| 3130 | 503197970 | Retaining Plate |
| 3150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 3160 | 224061201 | Flat Washer |
| 3180 | 250001219 | Hex Flange Screw M6 X 31 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503197649 | Link Rod |
| 4030 | 503197683 | Pin |
| 4060 | 503192494 | Washer |
| 4070 | 503197958 | Hex. Cap Screw M8 X 120 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503197683 | Pin |
| 4100 | 503192494 | Washer |
| 4120 | 503197958 | Hex. Cap Screw M8 X 120 |
