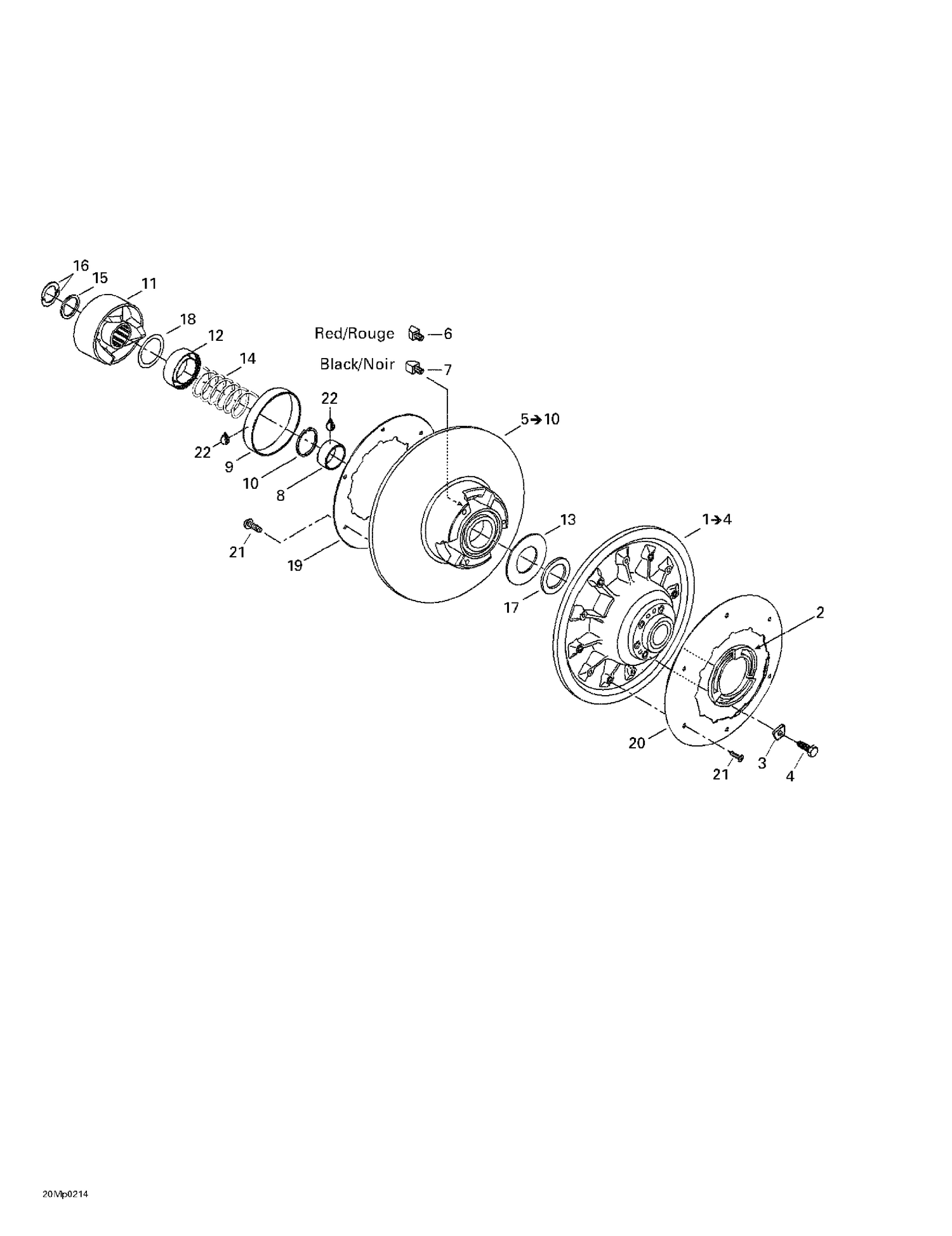

| Ref | Part Number | Description |
|---|
| 2 |
415005800 |
Adjustment Ring |
| 3 |
415005900 |
Adjustment Shim |
| 4 |
207162544 |
Hex. Screw M6 X 25 |
| 6 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 7 |
417126374 |
Front Cam Slider Shoe, Black |
| 8 |
Not |
Available As Spare Part - Bushing |
| 9 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 10 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 11 |
417126385 |
Cam Ass'y |
| 12 |
417126381 |
GUARD - Call your local BRP dealership |
| 13 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 14 |
414978300 |
Release Spring, Purple |
| 15 |
417126368 |
Spacer |
| 16 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 17 |
504112300 |
SHIM - Call your local BRP dealership |
| 18 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 19 |
504149700 |
Aerodynamic Cover |
| 20 |
504151831 |
AERODYNAMIC COVER - Call your local BRP dealership |
| 21 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 207162244 |
HEX. |
SCREW M6 X 22 - Call your local BRP dealership 207162244 |
| 207162244 |
Vis |
Hex. M6 X 22 - Appelez votre concessionnaire BRP local 207162244 |
