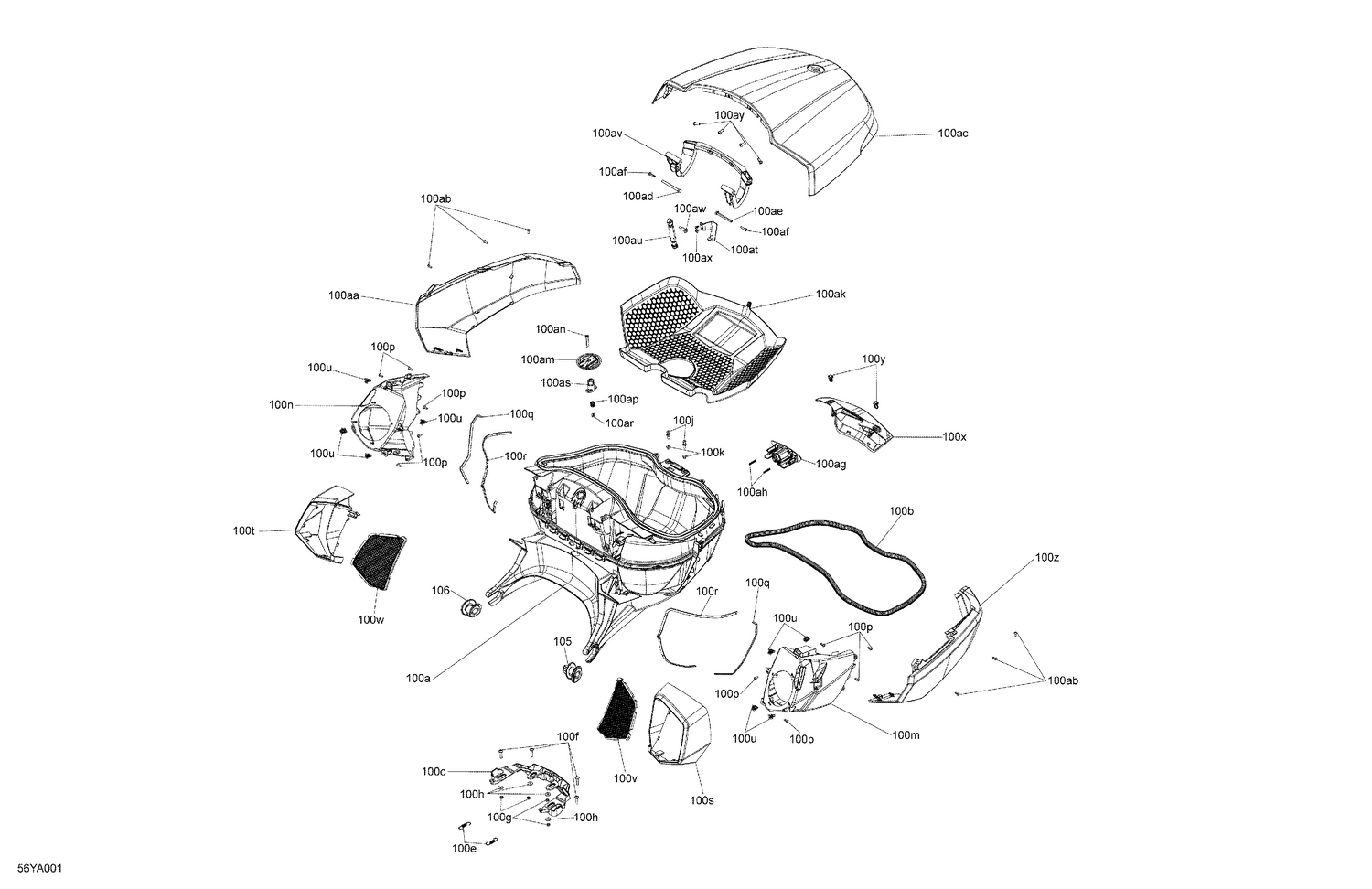

07- Body - Top Cargo Box
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 708304656 | Central Bonded Storage Box This part replaces 708302995. |
| 100aa | 708304090 | Chalk, LH Rear Fairing |
| 100ab | 250001131 | Torx Truss PT K40 x 12 |
| 100ac | 708303584 | Deep Black, Rear Box Cover |
| 100ad | 708303376 | RH Hinge Pin |
| 100ae | 708303377 | LH Hinge Pin |
| 100af | 250000783 | Torx-Truss M/S M4 X 20 |
| 100ag | 708302100 | Trunk Control Ass'y |
| 100ah | 708302198 | Spring |
| 100ak | 708303064 | Inner Trunk Soft Trim |
| 100am | 708303063 | LinQ Lock Knob |
| 100an | 708303262 | LinQ Lock Knob Screw |
| 100ap | 708201081 | Spring |
| 100ar | 233251494 | Elastic Flange Nut M5 |
| 100as | 520001578 | RH LATCH - Call your local BRP dealership |
| 100at | 708303421 | Shock Reinforcement |
| 100au | 708303630 | Shock Absorber |
| 100av | 708303319 | Lid Hinge |
| 100aw | 250000714 | Flange Screw M6 X 26 |
| 100ax | 250001034 | Torx-Truss Screw K40 X 10 |
| 100ay | 250000616 | Black, Socket Screw, M6 X 16 S.Grip |
| 100b | 293250579 | Trim This part replaces 293250404. |
| 100c | 708303384 | Latch |
| 100e | 705601862 | Tension Spring |
| 100f | 250000762 | Torx Screw M5 X 25 |
| 100g | 232051600 | Hex. Nut M5 |
| 100h | 234052600 | Flat Washer 5 mm, Stainless |
| 100j | 518333307 | Stud This part replaces 518329355. |
| 100k | 233251434 | Flange Elastic Nut M5 |
| 100m | 708302113 | LH Speaker Enclosure |
| 100n | 708302114 | RH Speaker Enclosure |
| 100p | 250001131 | Torx Truss PT K40 x 12 |
| 100q | 219704373 | Seal 1000Mm Long |
| 100r | 219704373 | Seal 1000Mm Long |
| 100s | 708302692 | LH Rear Speaker Trim |
| 100t | 708302693 | RH Rear Speaker Trim |
| 100u | 517302785 | Edge Clip |
| 100v | 708302106 | LH Speaker Grille |
| 100w | 708302107 | RH Speaker Grille |
| 100x | 708302152 | Light Support |
| 100y | 293150230 | Tuflok Plastic Rivet |
| 100z | 708304091 | Chalk, LH Rear Fairing |
| 105 | 708400404 | LH Anchorage Socket |
