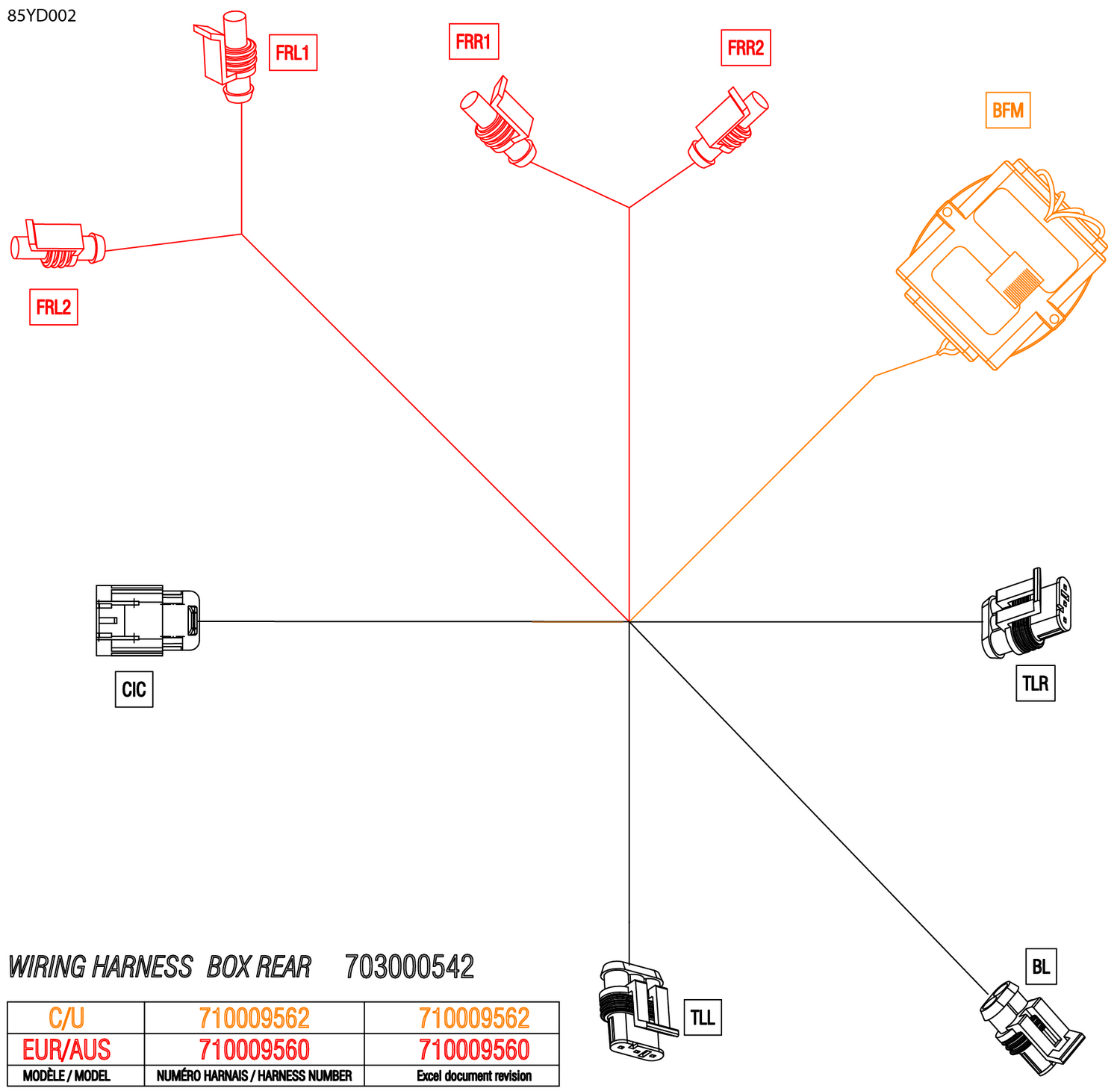

08- Electric - Rear Box Wiring Harness - 710009562
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| BFM | 710007701 | MODULE_TURN SIGNAL - Call your local BRP dealership |
| BL | 409209500 | Female Housing, 2 Circuits |
| BL | 515176621 | Wire Seal |
| BL | 710001340 | Female Terminal |
| CIC | 710001223 | Terminal |
| CIC | 710001224 | Terminal |
| CIC | 710001225 | Cap |
| CIC | 710001233 | Seal |
| CIC | 710001332 | Seal Wire |
| CIC | 710001927 | Housing |
| CIC | 710006181 | Lock |
| TLL | 278001013 | Wire Seal |
| TLL | 278001014 | Female Terminal |
| TLL | 409209600 | Female Housing, 3 Circuits |
| TLL | 515176621 | Wire Seal |
| TLL | 710001340 | Female Terminal |
| TLR | 278001013 | Wire Seal |
| TLR | 278001014 | Female Terminal |
| TLR | 409209600 | Female Housing, 3 Circuits |
| TLR | 515176621 | Wire Seal |
| 10 | 710009562 | Rear Box Wiring Harness |
