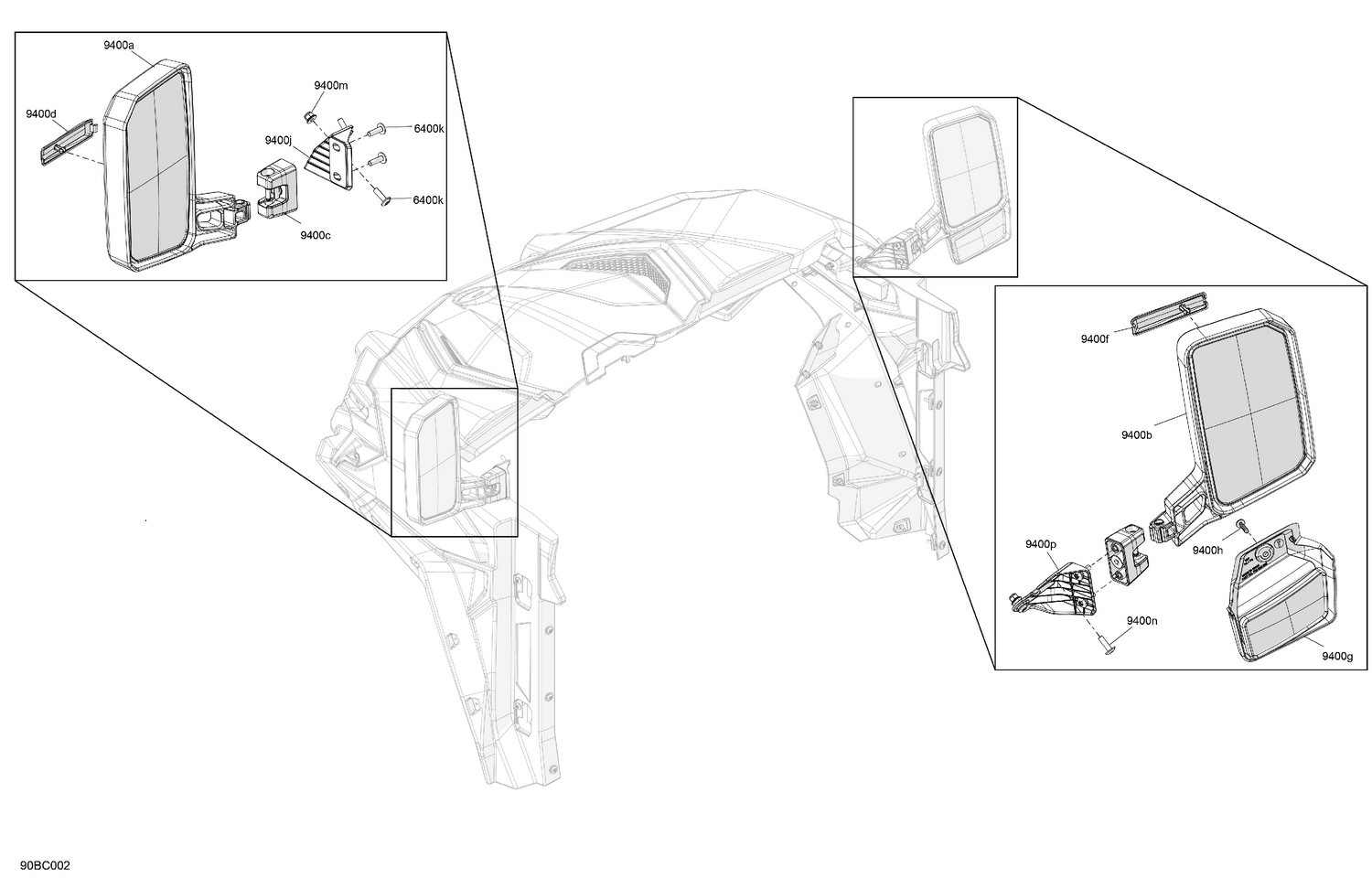

09- Miscellaneous - Mirrors
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 9400a | 705015282 | LH Front Rearview Mirror Ass'y |
| 9400b | 705015283 | RH Front Rearview Mirror Ass'y |
| 9400c | 705016525 | Housing Support Kit |
| 9400d | 705012860 | LH Can-Am Cover |
| 9400f | 705012861 | RH Can-Am Cover |
| 9400g | 705016339 | RH Panoramic Lateral Mirror Ass'y |
| 9400h | 250000720 | Torx Screw K50 X 16 |
| 9400j | 705012283 | LH Mirror Support |
| 9400k | 250000350 | Torx Truss Screw M6 X 20 |
| 9400m | 233261494 | Hex. Flange Elastic Nut M6 |
| 9400n | 250000350 | Torx Truss Screw M6 X 20 |
