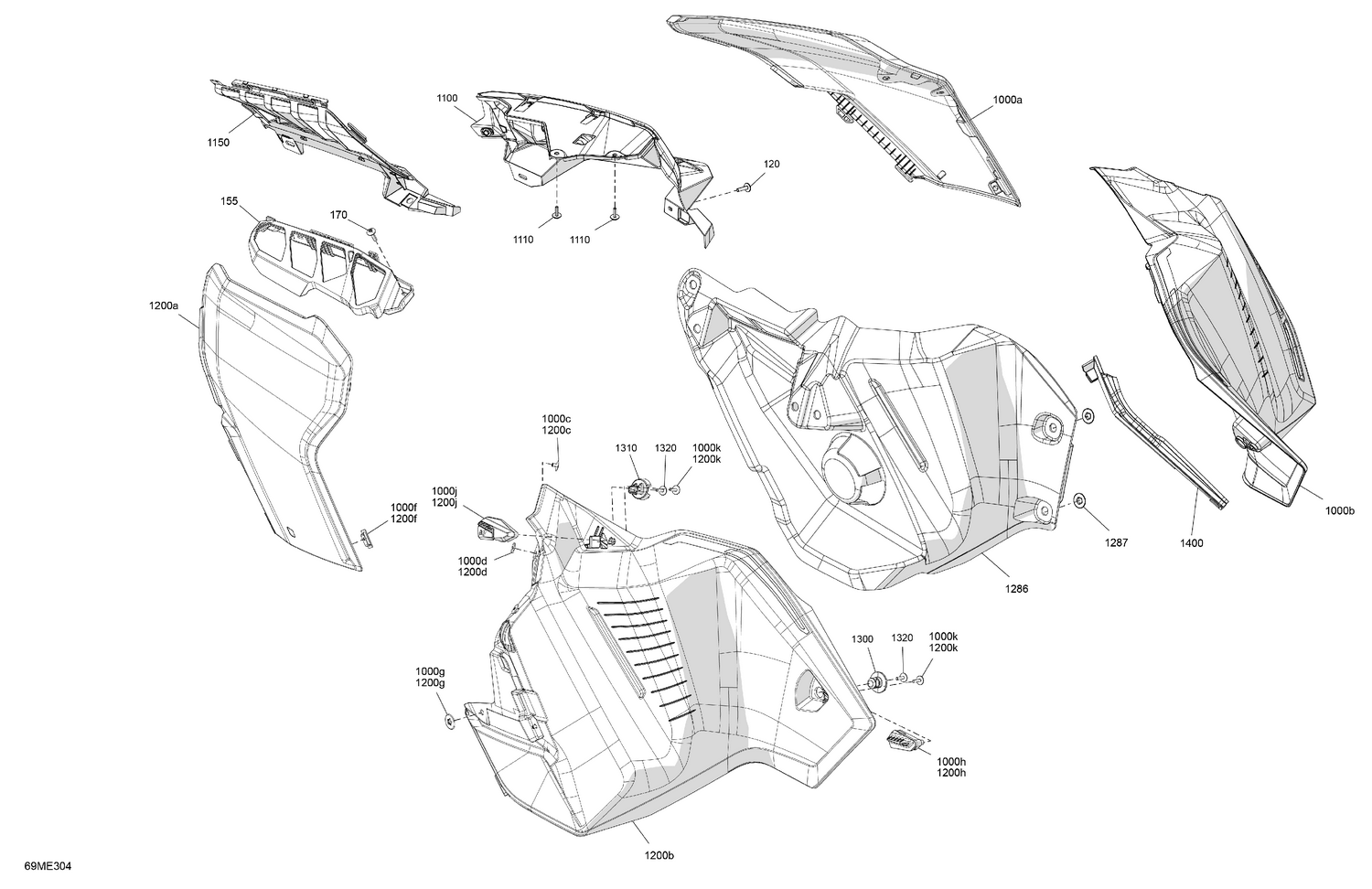

07- Body - Side Panels
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 155 | 517306470 | LH Hood Trim |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 1000a | 517307314 | Deep Black, RH Front Panel |
| 1000b | 517306306 | RH Rear Panel |
| 1000c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1000d | 517124300 | Washer |
| 1000f | 517305109 | Rivet Plate |
| 1000g | 508000853 | Push Nut |
| 1000h | 517305773 | RH Rear Latch |
| 1000j | 517305979 | RH Front Latch |
| 1000k | 250000725 | Screw M4 X 16 |
| 1100 | 517308651 | RH Hood Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1150 | 517308650 | LH Hood Trim |
| 1200a | 861805589 | Deep Black, LH Front Panel Kit This part replaces 517308779. |
| 1200b | 517308780 | Deep Black, LH Rear Panel |
| 1200c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1200d | 517124300 | Washer |
| 1200f | 517305109 | Rivet Plate |
| 1200g | 250100158 | Push Nut |
| 1200h | 517305774 | LH Rear Latch |
| 1200j | 517305980 | LH Front Latch |
| 1200k | 250000725 | Screw M4 X 16 |
| 1286 | 517308600 | LH Acoustic Panel |
| 1287 | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
