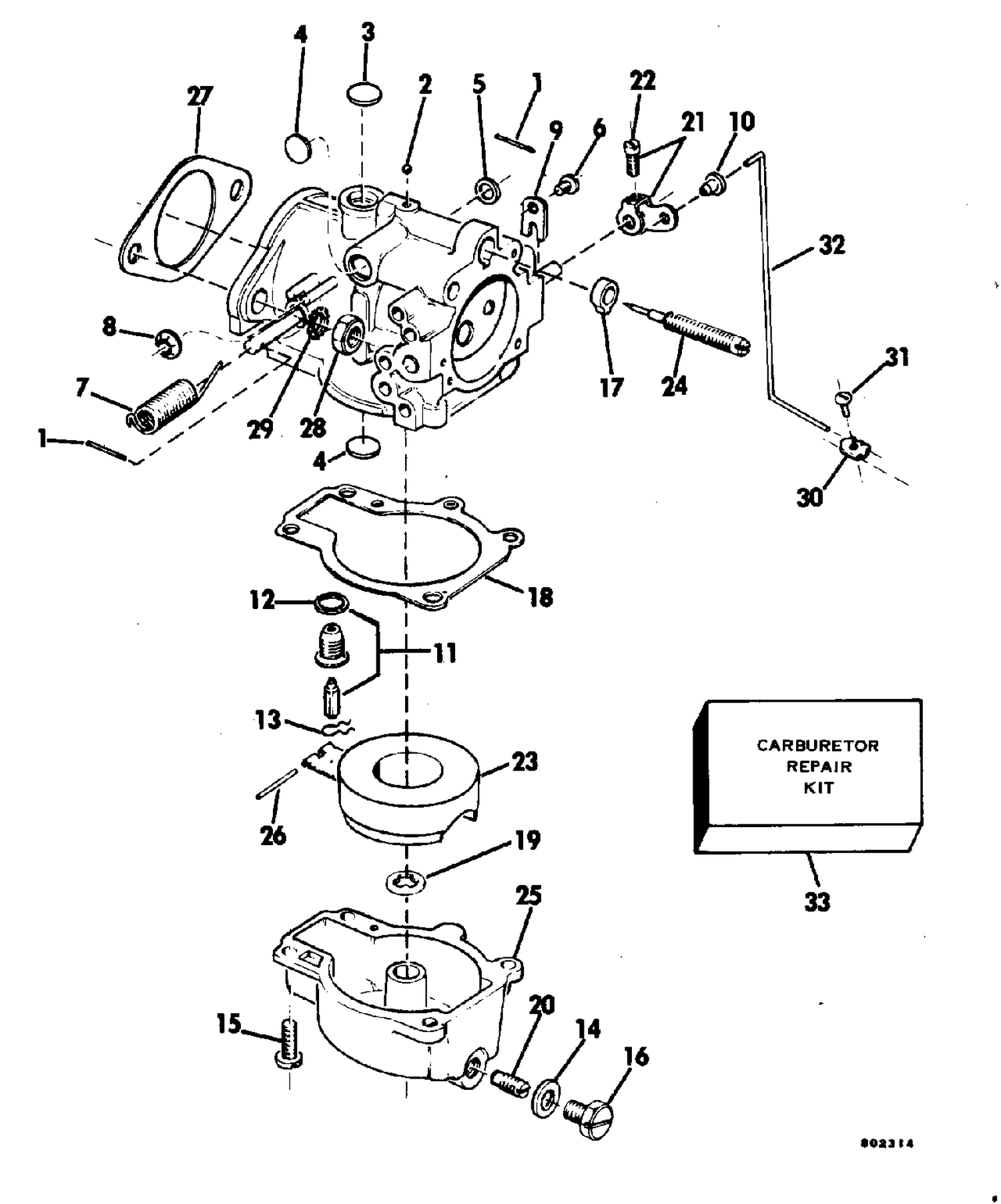

CARBURETOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0314906 | CLIP |
| 10 | 0313329 | LOCKWASHER, Carburetor link |
| 13 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 16 | 0307832 | PLUG, Screw |
| 17 | 0315232 | RETAINER , Needle valve stbd |
| 21 | 0378984 | ARM & SCREW |
| 22 | 0308893 | SCREW |
| 24 | 0387701 | NEEDLE VALVE ASSY.,Slow speed |
| 25 | 0387590 | FLOAT CHAMBER |
| 27 | 0325092 | GASKET |
| 29 | 0306799 | L'WASHER,Bracket to hsg. |
| 30 | 0318974 | FASTENER, Cable clamp |
| 31 | 0303686 | SCREW, Fastener |
| 32 | 0322828 | ROD,Knob to lever |
| 0392291 | 0392291 | CARBURETOR ASSY |
